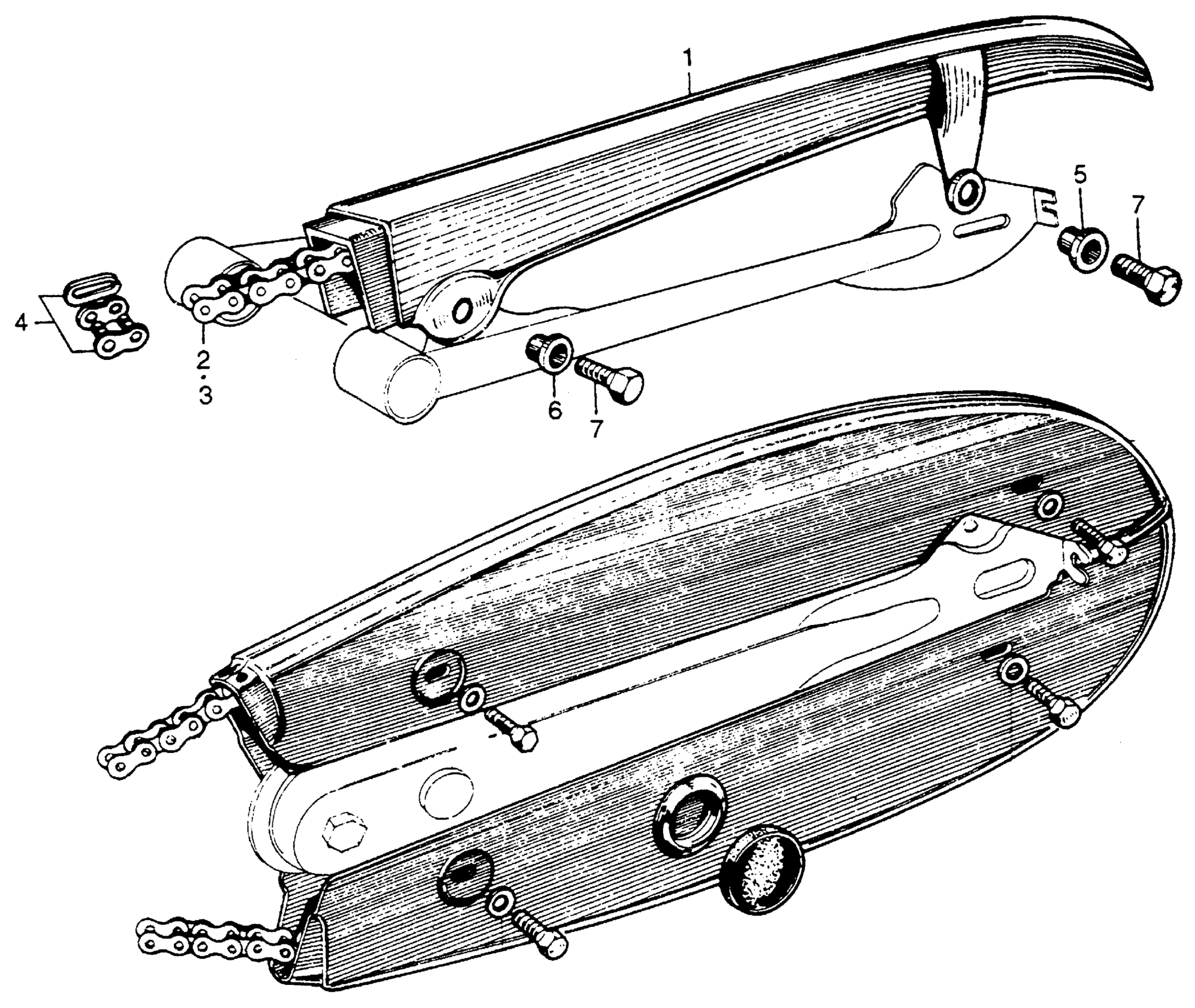

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CHAIN + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 424487

40510-028-010B

Unavailable

1

CASE, DRIVE CHAIN *R2* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 424487

40510-028-010C

Unavailable

1

CASE, DRIVE CHAIN *NH7* (PEARL GRAY) (NOT AVAILABLE) | Use from Frame SN 424487

40510-028-010XM

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487 This part replaces 40530-028-003.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487 This part replaces 40530-028-005.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487 This part replaces 40530-028-013.

405W3-KA8-505

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487

405W3-KA8-505

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487 This part replaces 40530-028-611.

405W3-KA8-505

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 424487 This part replaces 40530-397-821.

405W3-KA8-505

Unavailable

4

MASTER LINK (TAKASAGO) (NOT AVAILABLE) | Use from Frame SN 424487

40531-028-005

Unavailable

4

MASTER LINK | Use from Frame SN 424487 This part replaces 40531-205-003.

40531-205-013

Unavailable

4

MASTER LINK | Use from Frame SN 424487

40531-205-013

Unavailable

4

MASTER LINK | Use from Frame SN 424487 This part replaces 40531-216-003.

40531-205-013

Unavailable

5

WASHER, HEADLIGHT CASE | Use from Frame SN 495303

90522-034-000

Unavailable

6

WASHER, DISTANCE (7X10) (NOT AVAILABLE) | Use from Frame SN 495303

90544-028-000

Unavailable

7

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

7

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
