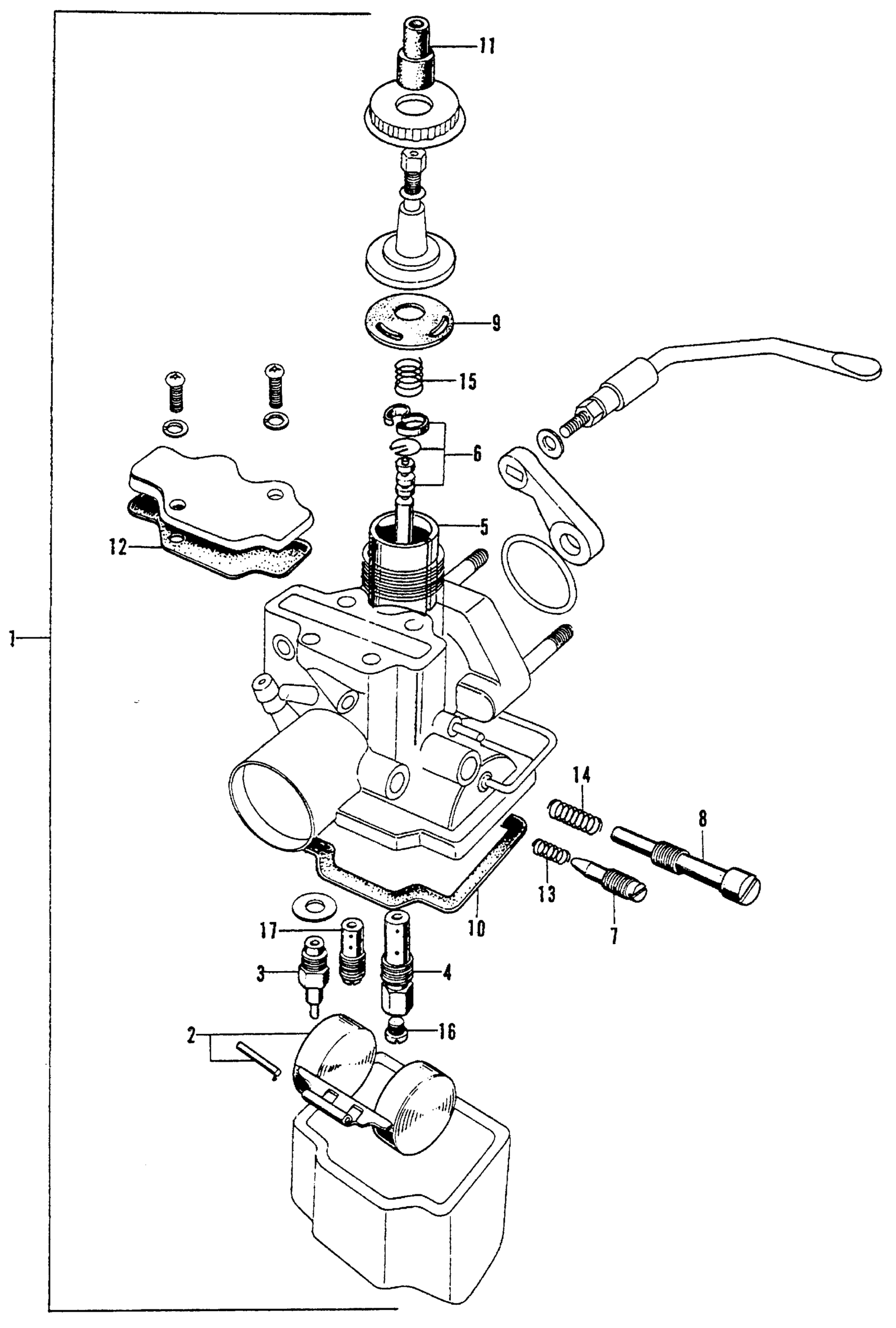

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CARBURETOR II (MIKUNI) S90 Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 527511

16100-028-034

Unavailable

2

FLOAT ASSY. (NOT AVAILABLE) | Use from Engine SN 424487

16122-028-005

Unavailable

3

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16011-070-004.

16011-355-004

$20.89

3

VALVE SET, FLOAT | Use from Engine SN 527511

16011-355-004

$20.89

3

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16011-823-650.

16011-355-004

$20.89

3

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16123-053-004.

16011-355-004

$20.89

3

VALVE, FLOAT (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16125-028-005

Unavailable

3

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16125-028-015.

16011-355-004

$20.89

3

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16125-028-315.

16011-355-004

$20.89

4

NEEDLE, JET (NOT AVAILABLE) | Use from Engine SN 424487 to 52710

16133-028-005

Unavailable

4

NEEDLE, JET (NOT AVAILABLE) | Use from Engine SN 527511

16133-028-015

Unavailable

5

VALVE, THROTTLE (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16141-028-005

Unavailable

5

VALVE, THROTTLE | Use from Engine SN 527511

16141-028-015

Unavailable

6

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16151-028-005

Unavailable

6

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN 527511

16151-028-015

Unavailable

7

SCREW, AIR | Use from Engine SN 424487 to 527510

16162-023-005

Unavailable

7

SCREW, AIR (NOT AVAILABLE) | Use from Engine SN 527511

16162-028-005

Unavailable

8

SCREW, THROTTLE STOP (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16163-028-005

Unavailable

8

SCREW, THROTTLE STOP (NOT AVAILABLE) | Use from Engine SN 527511

16163-028-015

Unavailable

9

WASHER, TOP (NOT AVAILABLE) | Use from Engine SN 424487

16171-030-005

Unavailable

10

WASHER, FLOAT CHAMBER | Use from Engine SN 424487

16172-028-005

Unavailable

10

WASHER, FLOAT CHAMBER | Use from Engine SN 424487 This part replaces 16172-030-005.

16172-028-005

Unavailable

11

GASKET, CAP (NOT AVAILABLE) | Use from Engine SN 527511

16173-028-005

Unavailable

12

GASKET, TAPPET VALVE COVER (NOT AVAILABLE) | Use from Engine SN 527511

16177-028-005

Unavailable

13

SPRING, AIR SCREW | Use from Engine SN 424487 This part replaces 16181-023-005.

16181-202-004

$3.70

13

SPRING, AIR SCREW (NOT AVAILABLE) | Use from Engine SN 424487

16181-202-004

$3.70

14

SPRING, THROTTLE STOP (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16182-028-005

Unavailable

14

SPRING, THROTTLE STOP (NOT AVAILABLE) | Use from Engine SN 527511

16182-028-015

Unavailable

15

SPRING, THROTTLE (NOT AVAILABLE) | Use from Engine SN 424487

16185-028-005

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99101-110-022.

99103-10504

Unavailable

16

JET, MAIN (#100) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

99103-10005

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

99103-10504

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99103-10505.

99103-10504

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99103-11005.

99103-10504

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99103-11505.

99103-10504

Unavailable

16

JET, MAIN (#115) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99103-12005.

99103-10504

Unavailable

16

JET, MAIN (#125) (N/A: SEE ASSEMBLY) | Use from Engine SN 424487 to 527510

99103-12505

Unavailable

16

JET, MAIN (#80) | Use from Engine SN 527511

99112-08005

Unavailable

16

JET, MAIN (#85) (NOT AVAILABLE) | Use from Engine SN 527511

99112-08505

Unavailable

16

JET, MAIN (#90) (NOT AVAILABLE) | Use from Engine SN 527511

99112-09005

Unavailable

16

JET, MAIN (#95) | Use from Engine SN 527511

99112-09505

Unavailable

16

JET, MAIN (#100) (NOT AVAILABLE) | Use from Engine SN 527511

99112-10005

Unavailable

17

JET, SLOW (#20.0) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99130-17505.

99130-20005

Unavailable

17

JET, SLOW (#17.5) (NOT AVAILABLE) | Use from Engine SN 527511

99130-17515

Unavailable

17

JET, SLOW (#20.0) (NOT AVAILABLE) | Use from Engine SN 424487

99130-20005

Unavailable

17

JET, SLOW (#20.0) (NOT AVAILABLE) | Use from Engine SN 424487 to 527510 This part replaces 99130-22505.

99130-20005

Unavailable
