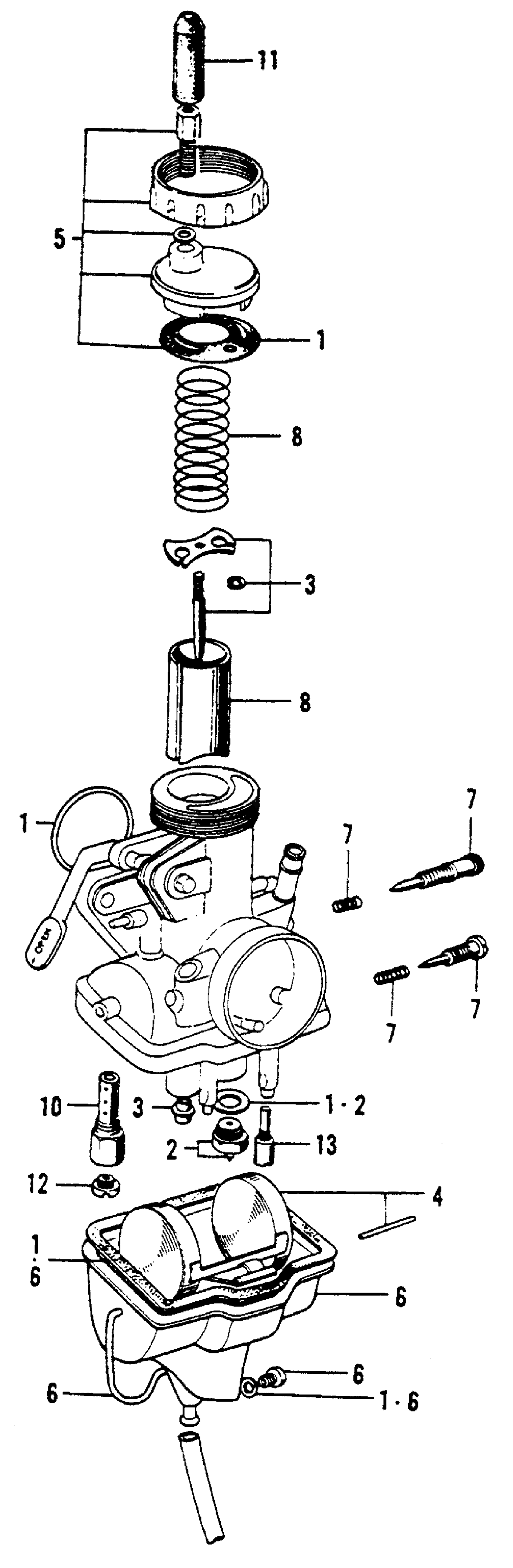

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 CARBURETOR I (KEIHIN) S90 Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-056-004

Unavailable

2

VALVE SET, FLOAT | Use from Engine SN 527511 This part replaces 16011-070-004.

16011-355-004

$20.89

2

VALVE SET, FLOAT | Use from Engine SN 424487 to 527510 This part replaces 16011-240-004.

16011-355-004

$20.89

2

VALVE SET, FLOAT | Use from Engine SN 424487

16011-355-004

$20.89

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-028-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET A (NOT AVAILABLE)

16014-028-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-028-004

Unavailable

7

SCREW SET A (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16016-028-004

Unavailable

7

SCREW SET A (NOT AVAILABLE) | Use from Engine SN 527511

16016-028-014

Unavailable

8

VALVE SET A, THROTTLE (NOT AVAILABLE)

16022-028-810

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 424487 to 527510

16100-028-010

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 527511

16100-028-034

Unavailable

10

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 527511 to 800147

16139-028-004

Unavailable

10

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 800148

16139-028-014

Unavailable

10

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 404689 to 527510

16139-028-810

Unavailable

11

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

11

CAP, CABLE SEALING

16118-166-004

$8.08

11

CAP, CABLE SEALING This part replaces 16118-190-004.

16118-166-004

$8.08

11

CAP, CABLE SEALING This part replaces 16194-028-004.

16118-166-004

$8.08

12

JET, MAIN (#85) (NOT AVAILABLE) | Use from Engine SN 424487 to 800147 This part replaces 99102-08504.

99114-051-0850

Unavailable

12

JET, MAIN (#85) (NOT AVAILABLE) | Use from Engine SN 424487 to 800147

99114-051-0850

Unavailable

12

JET, MAIN (#85) | Use from Engine SN 800184 This part replaces 99114-056-0851.

99114-246-0850

Unavailable

12

JET, MAIN (#85) | Use from Engine SN 800184

99114-246-0850

Unavailable

13

JET, SLOW (#38) (NOT AVAILABLE) | Use from Engine SN 527511

99124-217-0381

Unavailable

13

JET, SLOW (#40) (NOT AVAILABLE) | Use from Engine SN 424487

99124-217-0400

Unavailable
