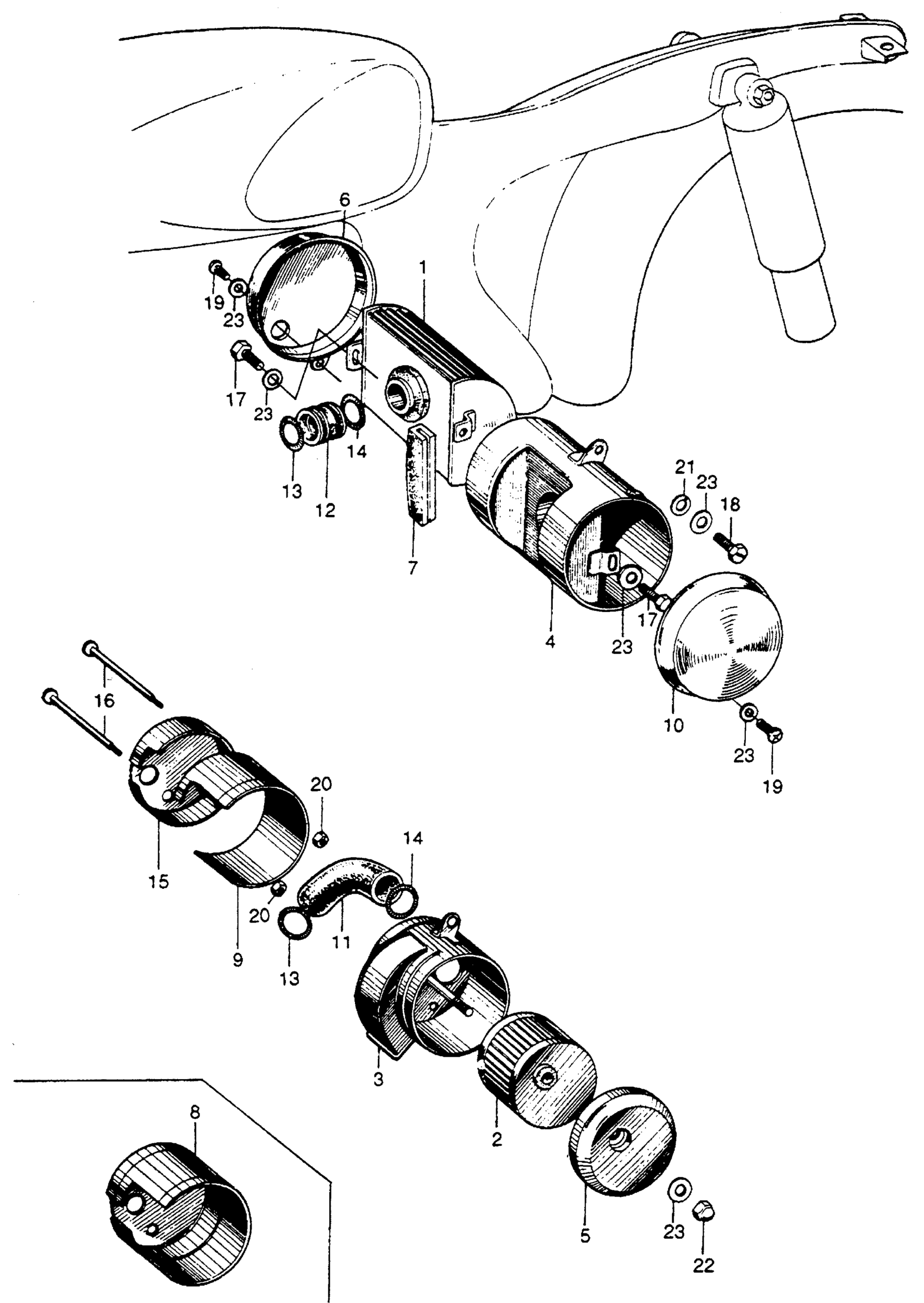

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT ASSY., AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 935050

17210-028-680

Unavailable

2

ELEMENT, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 424487 to 495389 This part replaces 17211-028-010.

17211-028-020

Unavailable

2

ELEMENT, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 495389

17211-028-020

Unavailable

3

HOUSING, AIR CLEANER | Use from Frame SN 424487 to 527510

17221-028-010Z

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 527511

17221-028-040Z

Unavailable

5

COVER *NH10M* | Use from Frame SN 495390 to 527510 This part replaces 17231-028-020.

17231-028-020S

Unavailable

6

COVER, AIR CLEANER HOUSING *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 679641

17231-056-670XW

Unavailable

6

COVER, AIR CLEANER HOUSING | Use from Frame SN 527511 to 679640

17231-028-050XL

Unavailable

6

COVER, AIR CLEANER HOUSING | Use from Frame SN 527511 to 679640 This part replaces 17231-028-050XM.

17231-028-050XL

Unavailable

6

COVER, AIR CLEANER HOUSING | Use from Frame SN 527511 to 679640 This part replaces 17231-028-050ZB.

17231-028-050XL

Unavailable

7

GASKET, CLEANER COVER (NOT AVAILABLE) | Use from Frame SN 527511

17235-028-000

Unavailable

8

CASE, CARBURETOR (NOT AVAILABLE) | Use from Frame SN 424487 to 495389

17241-028-010Z

Unavailable

9

CASE, CARBURETOR *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 495390 to 527510

17241-028-020B

Unavailable

9

CASE, CARBURETOR *R2* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 495390 to 527510

17241-028-020C

Unavailable

10

COVER, L. AIR CLEANER *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 679641

17251-056-670XW

Unavailable

10

COVER, L. AIR CLEANER *NH7* (PEARL GRAY) (NOT AVAILABLE) | Use from Frame SN 527511 to 679640

17251-028-020XM

Unavailable

11

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) | Use from Frame SN 424487 to 527510

17253-028-000

Unavailable

12

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) | Use from Frame SN 527511

17253-028-010

Unavailable

13

BAND A, AIR CLEANER IN. PIPE | Use from Frame SN 424487

17231-051-000

$4.63

13

BAND A, AIR CLEANER IN. PIPE | Use from Frame SN 424487 This part replaces 17255-028-000.

17231-051-000

$4.63

14

BAND B, CLEANER (NOT AVAILABLE) | Use from Frame SN 424487

17256-028-000

Unavailable

15

COVER, CARBURETOR CASE (NOT AVAILABLE) | Use from Frame SN 495390 to 527510 This part replaces 17261-028-000B.

17261-028-000Z

Unavailable

15

COVER, CARBURETOR CASE (NOT AVAILABLE) | Use from Frame SN 495390 to 527510 This part replaces 17261-028-000C.

17261-028-000Z

Unavailable

15

COVER, CARBURETOR CASE (NOT AVAILABLE) | Use from Frame SN 495390 to 527510

17261-028-000Z

Unavailable

16

SCREW, CARBURETOR CASE MOUNTIN (NOT AVAILABLE) | Use from Frame SN 424487 to 527510

90116-028-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

BOLT, RECESSED (6X16) This part replaces 92300-06016.

92301-06016-0A

$1.64

18

BOLT, RECESSED (6X16) This part replaces 92300-06016-0A.

92301-06016-0A

$1.64

18

BOLT, RECESSED (6X16)

92301-06016-0A

$1.64

19

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

19

SCREW, PAN (6X12)

93500-06012-0A

$1.49

19

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, CASTLE (6MM) (SOURCE: VINTAGE PARTS INC.) This part replaces 94011-06000.

94011-06000-0S

Unavailable

21

NUT, CASTLE (6MM) (SOURCE: VINTAGE PARTS INC.)

94011-06000-0S

Unavailable

22

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49
