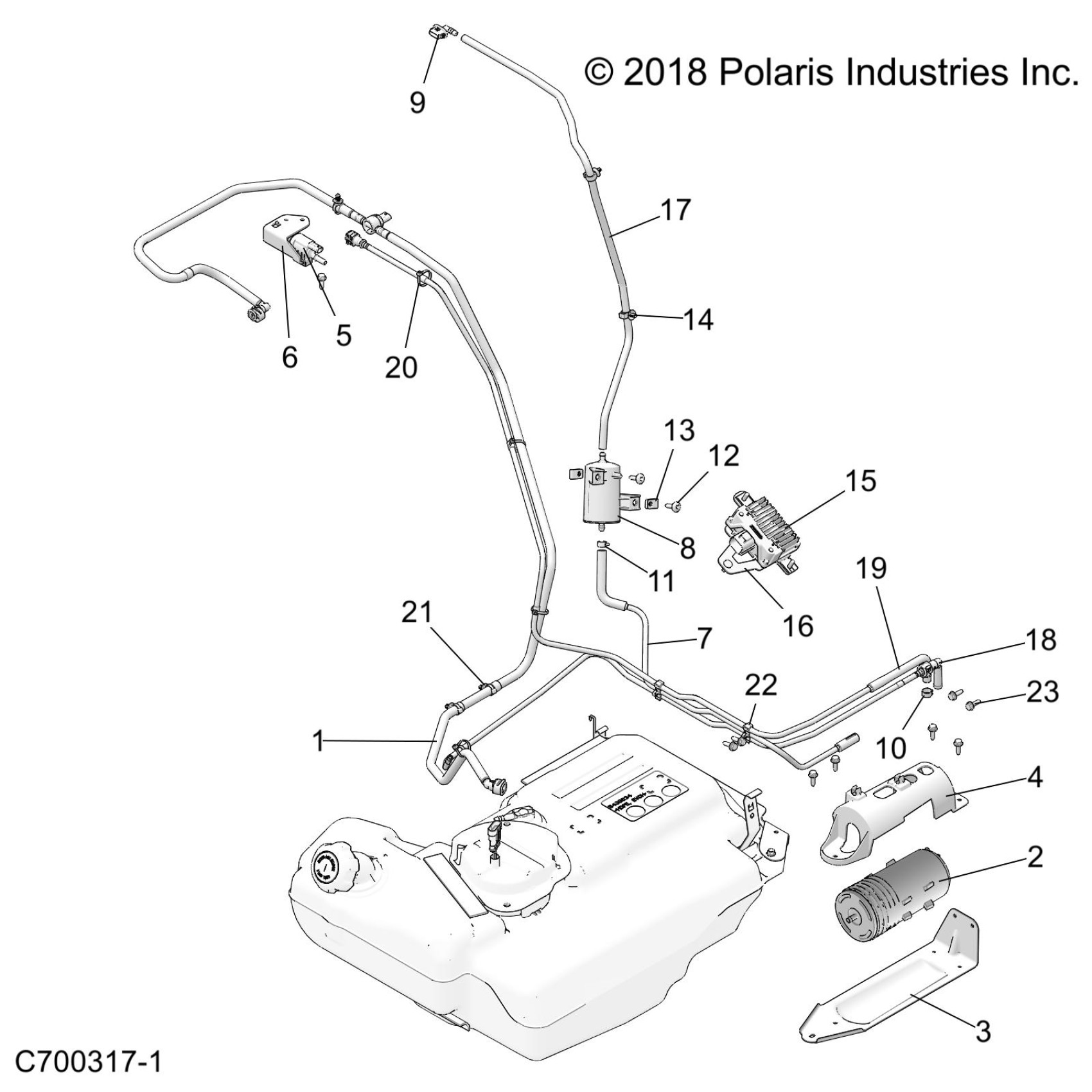

Polaris RZR XP4 TURBO S (R10) - Z19VPL92AK/BK/AR/BR/AM/BM BODY, FUEL LINES, EVAP - Z19VPL92BK/BR/BM (C700269-2701177) Diagram

ASM-FUEL LINE,SUPPLY

2521993

$100.31

CANISTER-ACTIVATED CARBON,BFL

2521893

$87.99

BRKT-MNT CANISTER,E-COAT

5263210-329

$35.99

BRKT-MNT CANISTER,BLK

5453458-070

$14.39

VALVE-PURGE

2521964

$59.99

BRKT-MNT PURGE.ECOAT

5266158-329

$39.59

ASM-LINE,VENT TO CANISTER

2521716

$75.99

FILTER-CANISTER VENT

2521750

$55.99

FITTING-VENT LINE,90

5453464

$5.59

HOSE CLAMP, RED

7080003

$1.49

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.59

ASM-FUEL PUMP,CONTROL,MODULE

2521997

$184.79

BRKT-MNT,CONTROL,MOD,E-COAT

5266159-329

$43.99

FUEL LINE-90 CENTIMETERS

8450040-90

$11.99

ASM-LINE,TANK TO CANISTER

2522032

$54.33

ASM-LINE,CANISTER TO PURGE

2521965

$59.99

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP-TRIPLE

7082246

$6.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
