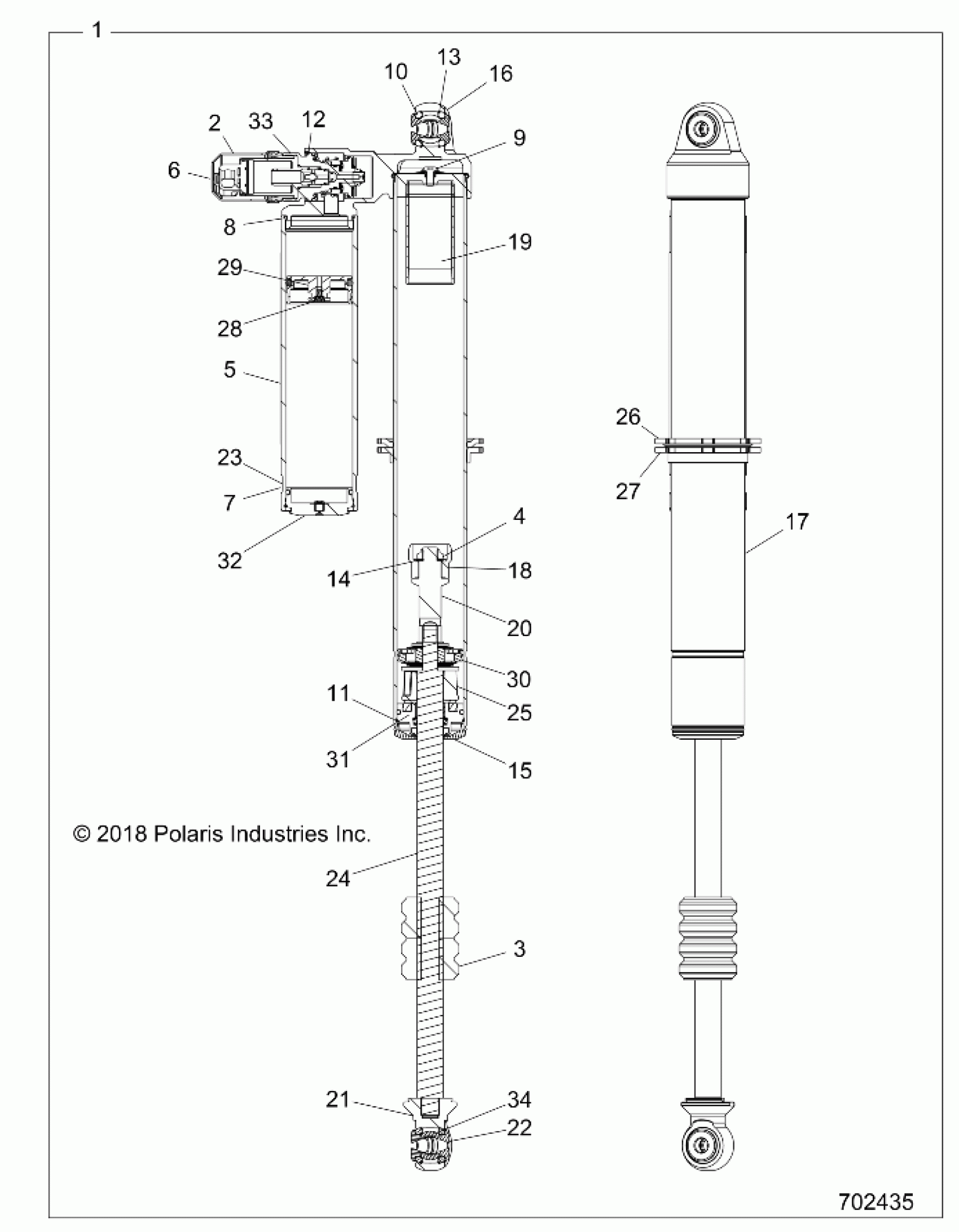

Polaris RZR XP4 TURBO (R09) - Z18VFE92BB/BM/BS/BU/LBK SUSPENSION, REAR SHOCK INTERNALS {FROM 11/27/2017] Diagram

#

Description
Price

1

SHOCK-REAR,FOXLIVE,MP,LH [INCL ALL]

7045152

$1,343.99

1

SHOCK-REAR,FOXLIVE,MP,RH [INCL ALL]

7045153

$1,306.19

2

COVER - LIVE VALVE

1501290

$27.99

3

BUMPER, B/O SHAFT

1501028

$26.39

4

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

5

-------

-------

Unavailable

6

DECAL - IRD CVR, LIVE

1501272

$10.39

7

DECAL - BAND

1501273

$11.99

8

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

9

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

10

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

11

WIRE, RETAINING RING

1500960

$3.73

12

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

13

RING, RET., WIRE SS

1501292

$3.99

14

PLATE - B. U., T.O.

1501293

$7.19

15

Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II

1501053

$31.10

16

BODY CAP, HIFLO 67.5 [USED IN 7045152]

1501294

$179.99

16

------- [USED IN 7045153]

-------

Unavailable

17

-------

-------

Unavailable

18

-------

-------

Unavailable

19

TUBE - BOT. OUT CUP

1501298

$55.99

20

-------

-------

Unavailable

21

EYELET - BLK

1501300

$71.99

22

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

23

RESEVOIR 10.0 TLG BLK

1501175

$263.99

24

-------

-------

Unavailable

25

SPACER - SHAFT, NYLON

1501302

$27.99

26

RING - PRELOAD B/U

1501285

$23.99

27

RING - PRELOAD

1501286

$23.99

28

SCREW - BLACK, RES.

1501303

$26.39

29

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

30

-------

-------

Unavailable

31

ASM - BRNG, DUAL SEAL

1501304

$105.59

32

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

33

ADJUSTER - DSC HIFLO

1501288

$470.79

34

CUP BASE

1501305

$70.11
