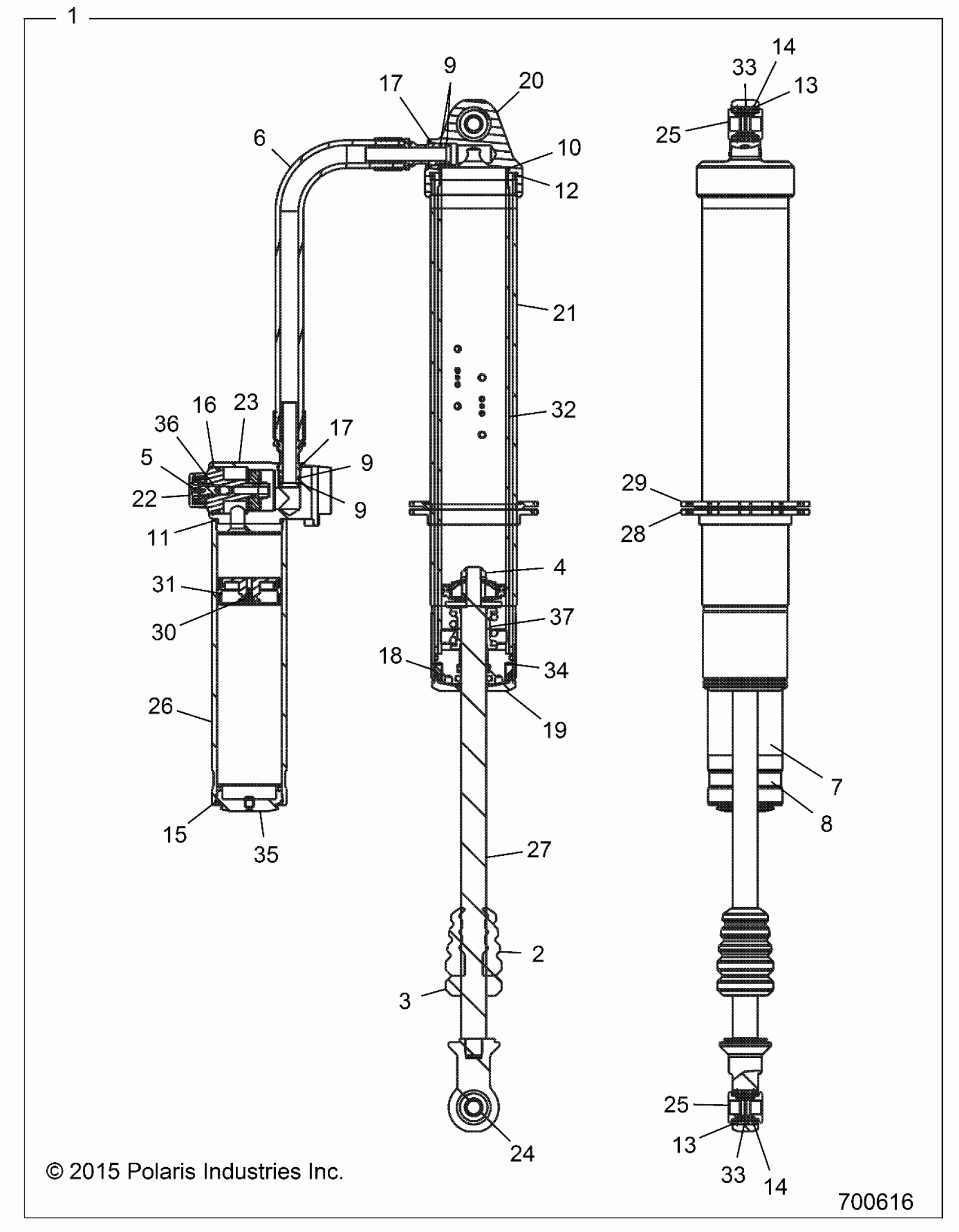

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB SUSPENSION, REAR SHOCK - Z17VFE92AK/AM/AB (700616) Diagram

#

Description
Price

1

Plate, Top Out, 1.950 x .188

1500470

$11.19

1

PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

1500841

$10.39

1

SHOCK-REAR,INTBYPASS,MP [INCL. ALL]

7044424

Unavailable

2

Bumper: B/O [� 0.620 Shaft, 2.350 TLG] MCU

1500577

Unavailable

3

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$31.99

4

Fastener, Standard: Nut, Lock [1/2-20 X 0.313 TLG]

1500472

$23.99

5

SCREW, #4, SS PAN

1501011

$13.59

6

Hose: (T) -10, .625" ID [30.00 TLG], Quick Connec

1501066

$144.99

7

Decal: Reservoir [7.63 X 7.50] Internal Bypass

1501067

$69.99

8

Decal: Band [.45 X 7.63] Performance Series

1501046

$7.10

9

Seals: O-Ring [(-016) .070 C.S. X 0.614 ID] Standard N-70, Static

1501068

$8.87

9

Seals: O-Ring [(-016) .070 C.S. X 0.614 ID] Standard N-70, Static

1501068

$8.87

9

Seals: O-Ring [(-016) .070 C.S. X 0.614 ID] Standard N-70, Static

1501068

$8.87

10

SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC

1501069

$8.87

11

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

12

SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC

1501070

$8.87

13

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

13

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

14

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

14

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

15

WIRE, RETAINING RING

1500960

$3.73

16

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

17

Retaining Ring: Wire [� 2.750 ID X �.063 Wire] 302 SS

1501085

$14.21

17

Retaining Ring: Wire [� 2.750 ID X �.063 Wire] 302 SS

1501085

$14.21

18

Retaining Ring: Wire [� 0.787 ID X �.063 Wire] 302 SS

1501086

$26.65

19

Bearing Cap: [� 2.750 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear

1501071

$44.43

20

Body Cap: (T) Remote Reservoir, Internal Bypass, Forging [� 3.000 Body, 3.000-2

1501072

$124.43

21

BODY, OUTER 17.8 TLG

1501173

$206.39

22

DAMPING ADJUST PART: LOW SPEED KNOB [� 1.200 OD, .530 TLG] NYLON, BLACK213-01-355

1501057

$10.65

23

Damping Adjust Part: CD Housing [� 2.250 Bore] Remote Reservoir

1501074

$170.22

24

EYELET

1501174

$91.99

25

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

25

EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI

1501076

$27.99

26

RESEVOIR 10.0 TLG BLK

1501175

$263.99

27

SHAFT, .875 X 17.1

1501176

$163.99

28

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW

1501079

Unavailable

29

SPRING HARDWARE: PRELOAD RING BACK UP [4.50 OD X .280 TLG, 3.0-14 STUB ACME] BLK

1501080

Unavailable

30

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

31

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

32

INTERNAL BYPASS, 2PAD

1501177

$111.99

33

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

33

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

34

Asm., Seal Head

1501094

$107.99

35

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

36

Adjuster, Damping, LCS

1501180

$289.99

37

Spring Hardware Assembly: Negative Spring Guide, � 0.875 Shaft [300 lbs/in]

1501083

$59.99
