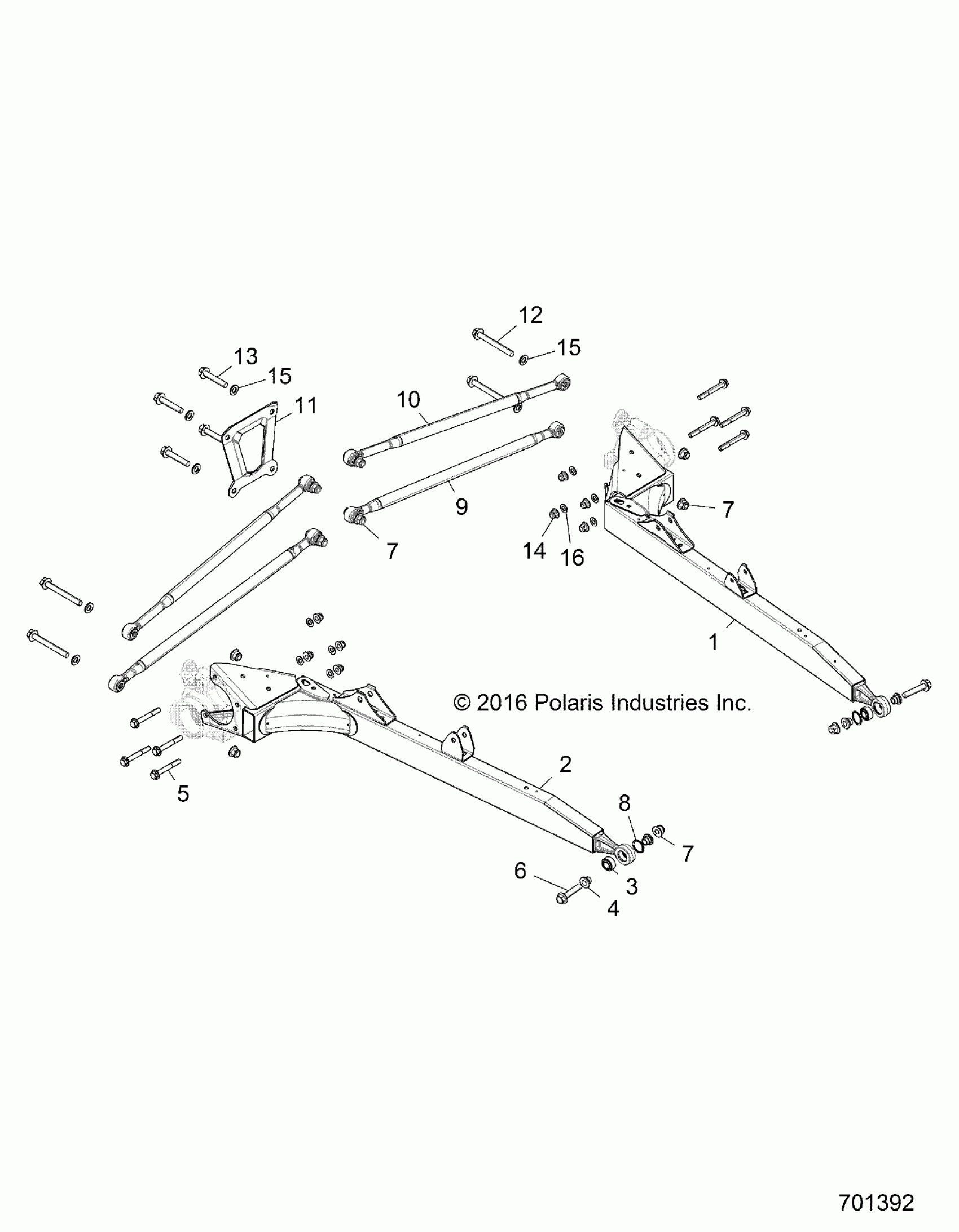

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB SUSPENSION, REAR CONTROL ARMS - Z17VFE92AK/AM/AB (701392) Diagram

#

Description
Price

1

WELD-TRL ARM,LH,I.RED [AK]

1019356-293

$493.79

1

WELD-TRL ARM,LH,CL SLV [AM]

1019356-385

$493.79

1

WELD-TRL ARM,LH,VL BL [AB]

1019356-689

$284.99

2

WELD-TRL ARM,RH,I.RED [AK]

1019357-293

$493.79

2

WELD-TRL ARM,RH,CL SLV [AM]

1019357-385

$493.79

2

WELD-TRL ARM,RH,VL BL [AB]

1019357-689

$284.99

3

BEARING, SPHERICAL

3514689

$39.68

4

BUSHING, REDUCER

5336751

$6.35

5

SCREW

7519286

$7.14

6

SCREW

7519138

$9.52

7

NUT, FLANGE, NYLOK

7547334

$4.76

7

NUT, FLANGE, NYLOK

7547334

$4.76

7

NUT, FLANGE, NYLOK

7547334

$4.76

8

RING, RETAINER

7710437

$3.17

9

ASM-RADIUS ROD,BTM,RED [AK]

1543805-293

$174.03

9

ASM-RADIUS ROD,BTM,CL SLV [AM]

1543805-385

$182.13

9

ASM-RADIUS ROD,BTM,VL BL [AB]

1543805-689

$182.13

10

ASM-RADIUS ROD,RED [AK]

1543806-293

$182.13

10

ASM-RADIUS ROD,CL SLV [AM]

1543806-385

$174.03

10

ASM-RADIUS ROD,VL BL [AB]

1543806-689

$174.03

11

PLATE-REAR,BOLT BRACE,M.BLK

5262630-458

$40.46

12

SCREW

7520479

$7.14

13

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.17

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WASHER

7556287

$7.14

15

WASHER

7556287

$7.14

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
