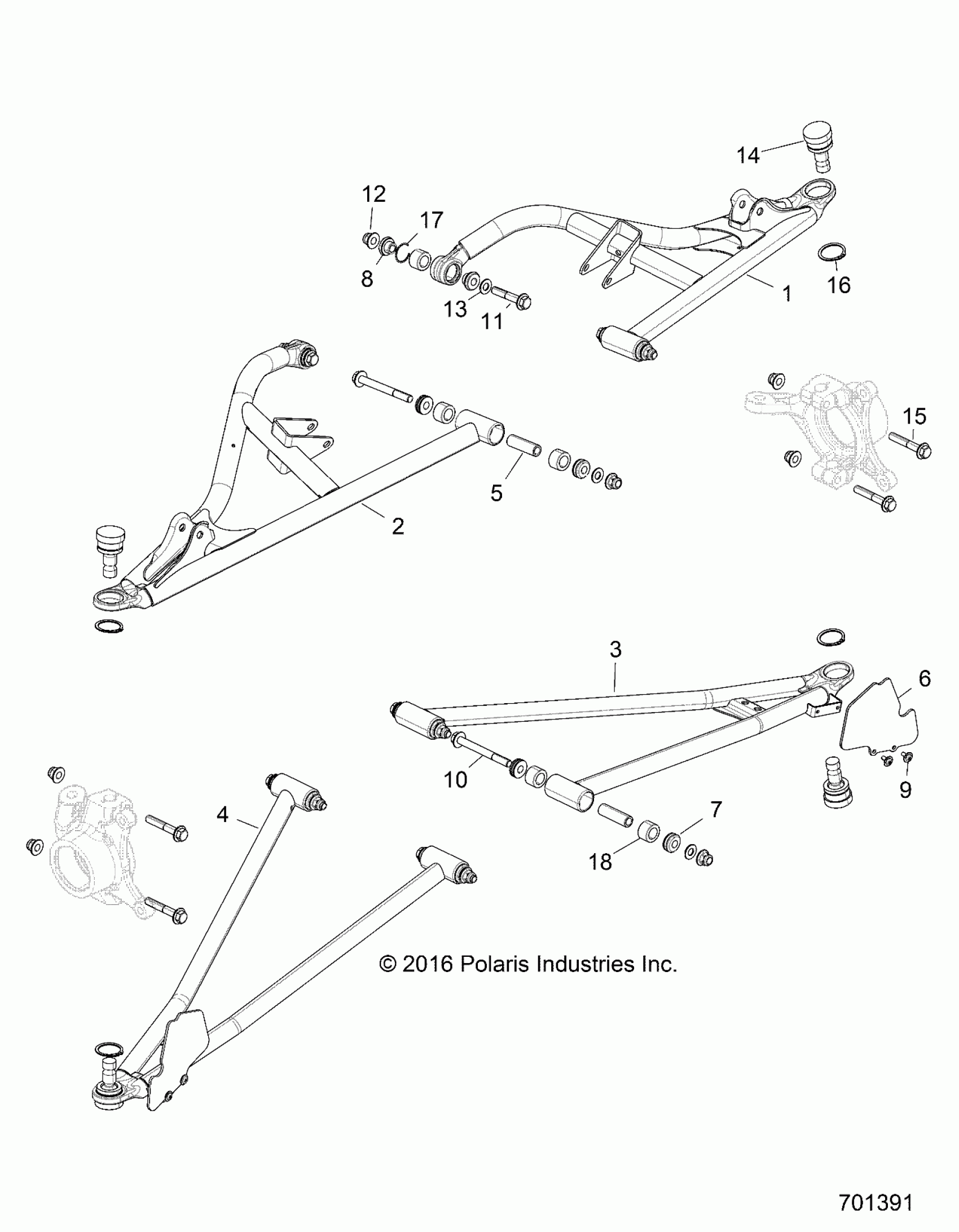

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB SUSPENSION, FRONT CONTROL ARMS - Z17VFE92AK/AM/AB (701391) Diagram

WELD-CTRL ARM,UPR,FR,LH,64,RED [AK]

1021478-293

Unavailable

WELD-CTRL ARM,UPR,FR,LH,64,SLV [AM]

1021478-385

Unavailable

WELD-CTRL ARM,UPR,FR,LH,64,VLB [AB]

1021478-689

Unavailable

WELD-CTRL ARM,UPR,FR,RH,64,RED [AK]

1021479-293

Unavailable

WELD-CTRL ARM,UPR,FR,RH,64,SLV [AM]

1021479-385

Unavailable

WELD-CTRL ARM,UPR,FR,RH,64,VLB [AB]

1021479-689

Unavailable

WELD-CTRL ARM,LWR,FR,LH,64,RED [AK]

1021480-293

Unavailable

WELD-CTRL ARM,LWR,FR,LH,64,VLB [AB]

1021480-689

Unavailable

WELD-CTRL ARM,LWR,FR,LH,64,SLV [AM]

1021480-385

Unavailable

WELD-CTRL ARM,LWR,FR,RH,64,RED [AK]

1021481-293

Unavailable

WELD-CTRL ARM,LWR,FR,RH,64,VLB [AB]

1021481-689

Unavailable

WELD-CTRL ARM,LWR,FR,RH,64,SLV [AM]

1021481-385

Unavailable

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

Screw

7512084

$1.49

SCREW

7519043

$9.59

SCREW

7519285

$2.39

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.99

BALL, JOINT, HARDENED

7081992

$48.56

SCREW

7519306

$5.59

RING, RETAINING

7710716

$7.19

28MM SPIRAL RING,STEEL

7710845

$3.59

BUSHING-STANDARD,SUSP,M10

5452233

$2.39
