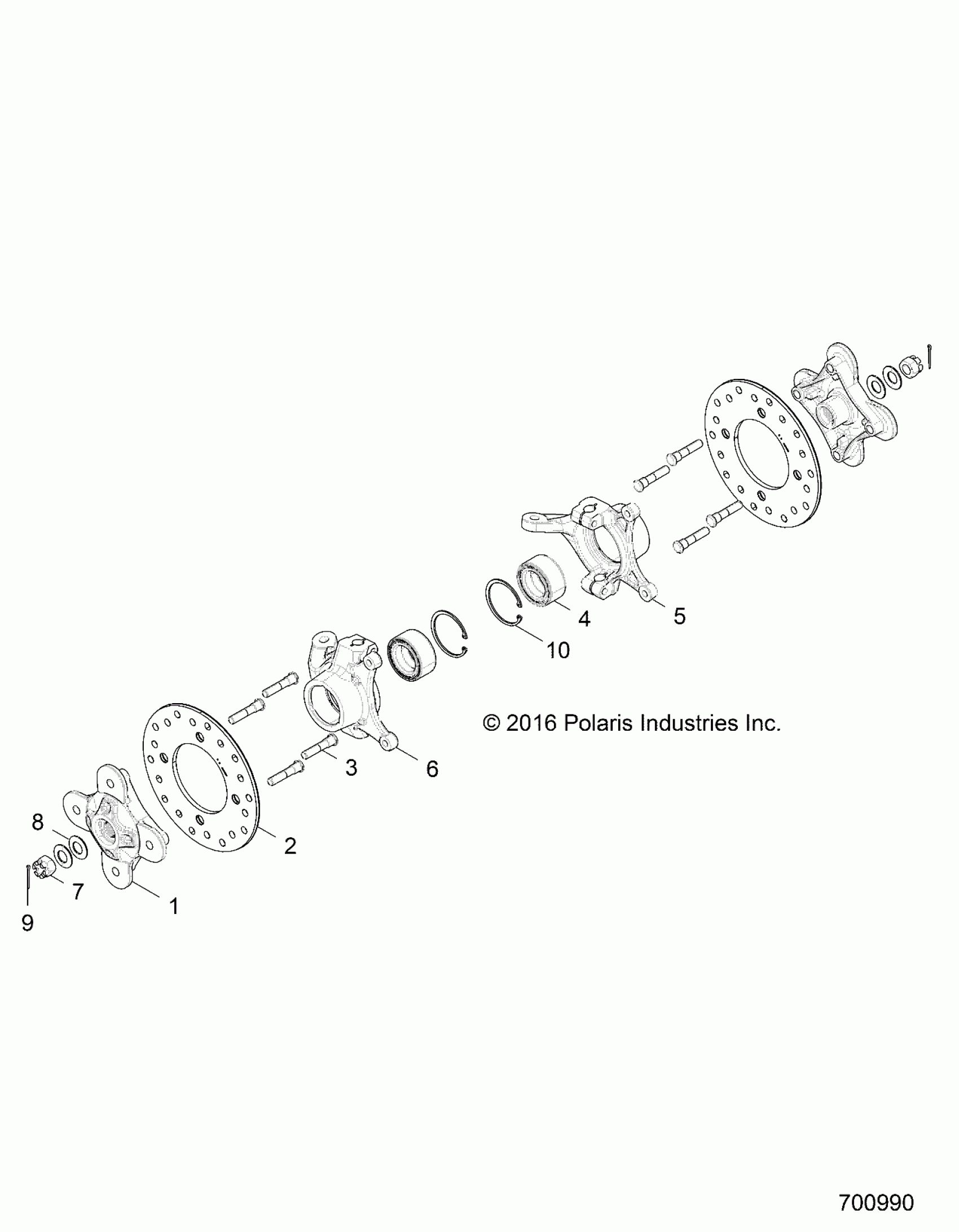

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB SUSPENSION, FRONT CARRIER AND HUB - Z17VFE92AK/AM/AB (700990) Diagram

#

Description

Price

1

HUB-WHEEL(MACH),BLK

5139265-067

$97.13

2

ROTOR-BRAKE,7.5MM,SS410DB,HO

5262840

$104.49

3

STUD-WHEEL,M12-1.5

7519792

$5.56

4

BEARING-BALL,SEALED,44X72X33.1

3514822

$39.68

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.49

5

KNUCKLE-FRONT,LH(MACH)

5139867

$194.74

6

KNUCKLE-FRONT,RH(MACH)

5139868

$199.49

7

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.98

8

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.94

9

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.76

10

RING-RETAINING,2.835,INTERNAL

7710780

$9.52
