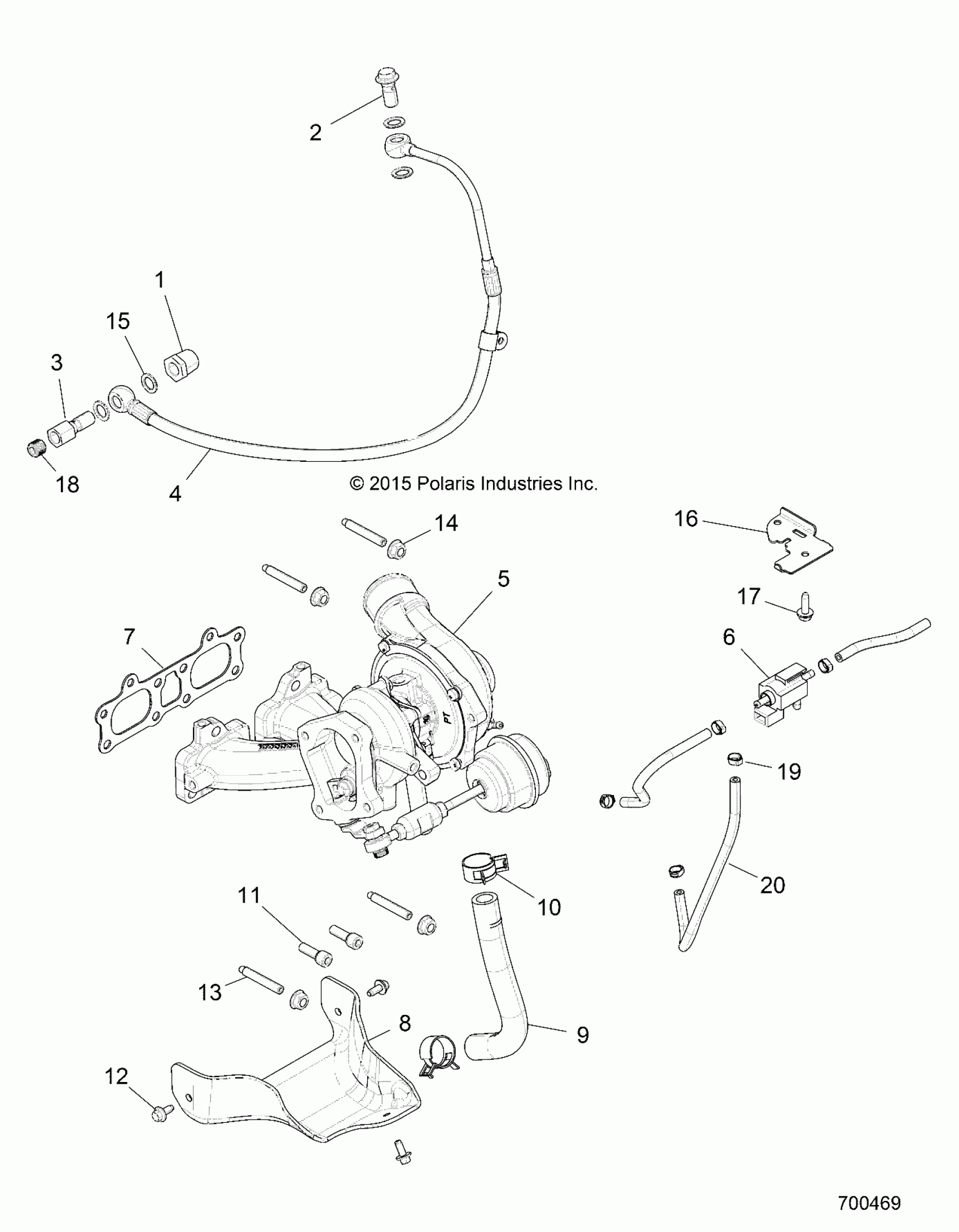

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, TURBO CHARGER MOUNTING - Z17VFE92AK/AM/AB (700469) Diagram

Description

Price

ADAPTER-4AN,1/2NPT

2521491

$12.13

BOLT-BANJO,M12X1.5

2521508

$33.24

BOLT-BANJO,M12X1.5-1/4NPT

2521509

$28.49

ASM-OIL LINE,SUPPLY

2521645

$123.49

ASM-TURBO,588

----

Unavailable

VALVE,ELECTRONIC BOOST CONTROL

4011285

$254.98

GASKET-EXHAUST SEAL

3610184

$48.56

SHIELD-HEAT,TURBO,LOWER

5260460

$47.49

HOSE-DRAIN,FORMED

5415727

$36.41

CLAMP-HOSE,SPRING,24MM

7081825

$7.94

SCR-M8X1.25X25,HX/SOC/SEMS-Y

7517322

$2.38

SCR-HHSEMS-M6X1.0X12 A286,LOCK

7520291

$7.14

STUD-M8X1.25X45,SOCKET

7520377

$3.97

NUT-HXFLGHD,M8,0600087

7546805

$7.84

WASHER-COPPER SEALING

7556937

$3.22

BRKT-BOOST CONTROLLER

5261420

$7.27

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.65

CLAMP-OETIKER,16700005-10.0

7082109

$3.97

LINE-BOOST,3/16 ID

8450153

Unavailable
