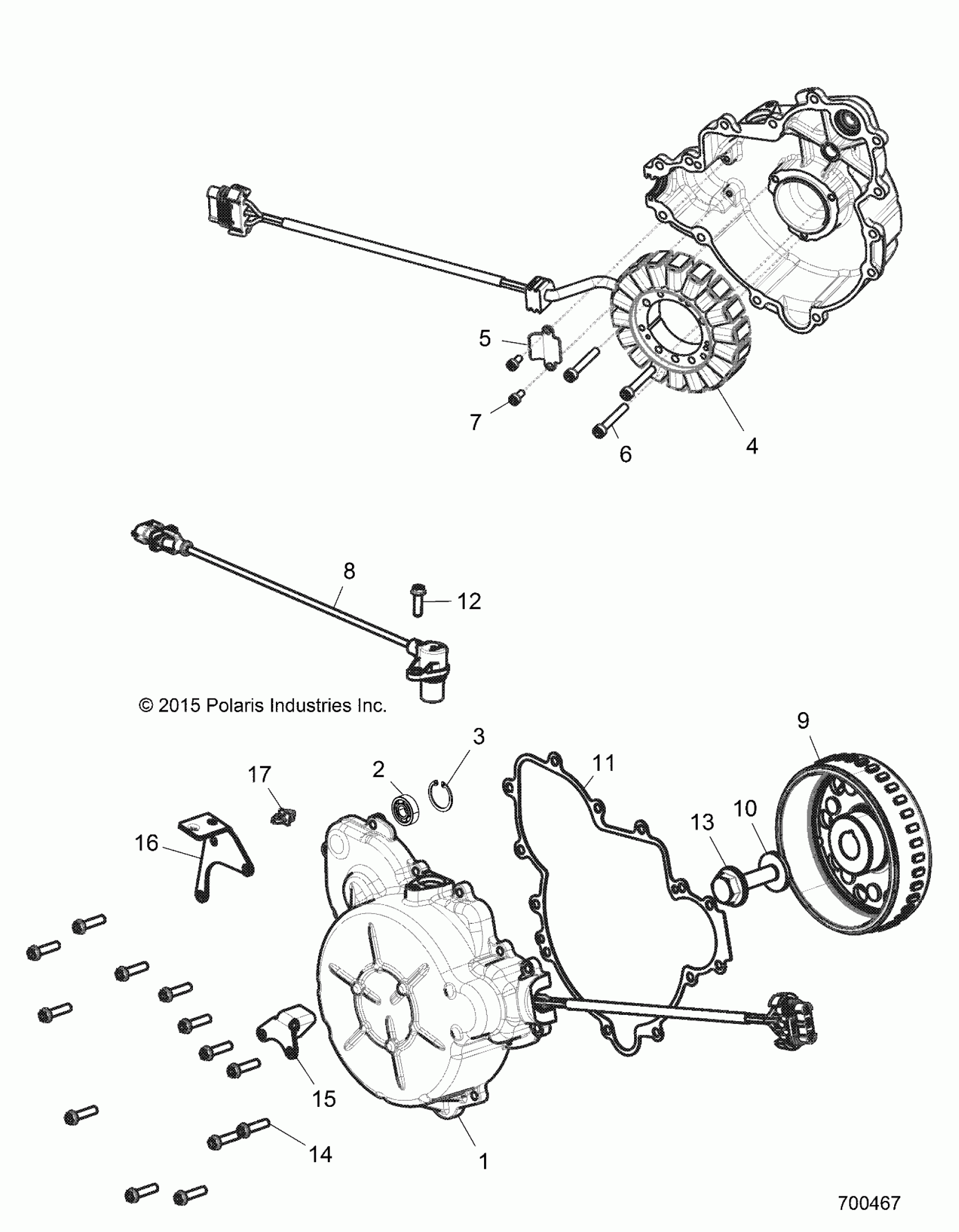

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, STATOR AND FLYWHEEL - Z17VFE92AK/AM/AB (700467) Diagram

#

Description
Price

1

ASM., IGNITION COVER [INCL. 2,3]

1204518

$159.75

1

ASM., IGNITION COVER [INCL. 2,3]

1204518

$159.75

2

BEARING, BALL

3514717

$8.79

3

RING, SNAP

7710654

$23.99

4

STATOR

4015340

$263.99

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCREW

7510005

$5.70

7

SCREW

7517847

$3.19

8

SENSOR, CRANK POSITION

2411719

$101.17

9

FLYWHEEL

4015496

$255.99

10

WSHR-32X12X4,HARD

7556885

$5.59

11

GASKET, COVER, IGNITION

5814160

$39.99

12

SCREW

7518576

$3.19

13

SCREW

7520178

$27.99

14

SCREW

7519297

$3.99

15

BRKT-OIL,LINE,RETAINER

5260300

Unavailable

16

BRKT-CPS/COOLANT

5260666

$10.39

17

CLIP-WIRE,6.35MM

7081477

$3.19
