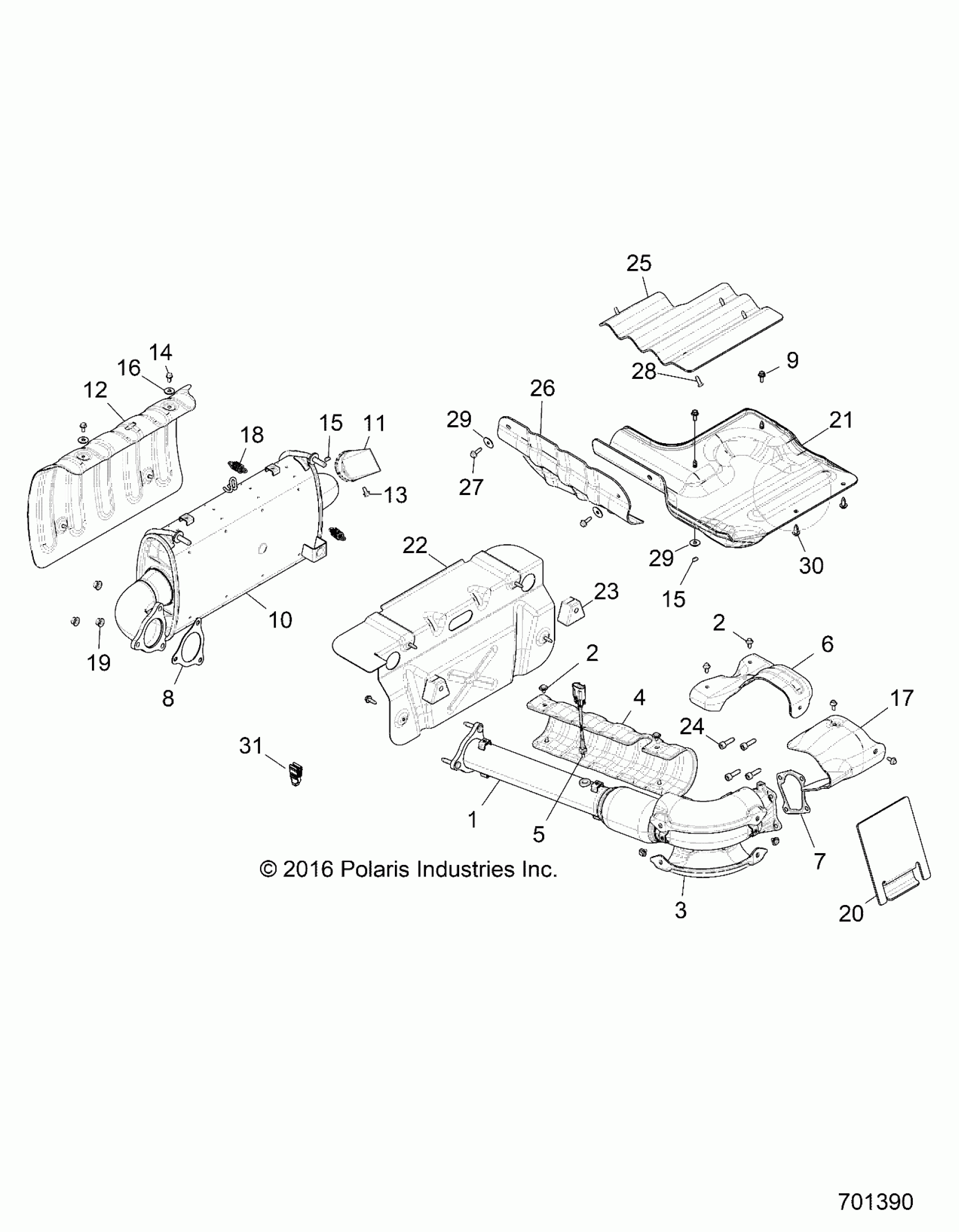

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, EXHAUST SYSTEM - Z17VFE92AK/AM/AB (701390) Diagram

#

Description
Price

1

ASM-HEADPIPE,TURBO [INCL QTY 8 OF 2,3,4]

1263081

$799.99

1

STUD-M8X1.25X40 660A SS,LOCK

7520290

$7.14

2

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.14

2

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.14

3

SHIELD-HEAT,HEADPIPE,FRONT

5264104

$52.24

4

SHIELD-HEAT,HEADPIPE,RR,INNER

5260457

$54.99

5

SENSOR-OXYGEN

4016021

$169.98

6

SHIELD-HEAT,TURBO,UPPER

5260459

$47.49

7

GASKET-EXHAUST

5812640

$69.99

8

GASKET-EXHAUST,3 BOLT

5814340

$7.27

9

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

10

ASM-SILENCER [INCL 11-14,QTY 1 OF 15,16]

1262655

$999.99

11

WELD-SPARK ARRESTOR

1262390

$52.60

12

SHIELD-SILENCER [IF BUILT BEFORE 8/1/16]

5261926

$84.99

12

SHIELD-SILENCER [IF BUILT AFTER 8/1/16]

5262943

$84.99

13

SCR-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

14

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.19

15

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

15

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

16

WASHER-.28 X .81 X .06, ST-M

7555935

$2.38

17

SHIELD-HEAT,TURBO,OUTLET

5260461

$47.49

18

SPRING-EXHAUST

7041789

$8.89

19

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.97

20

SHIELD-ACCESS PANEL

5814082

$44.51

21

SHIELD-BOX,FRONT

5814245

$52.24

22

SHIELD-REAR,AL

5263026

$44.51

23

MNT-ISOLATOR

5450115

$14.56

24

SCR-SH-M8X1.25X25 A286,LOCK

7520277

$6.35

25

SHIELD-FOIL,ACCESS PANEL

5262942

$36.41

26

SHIELD-ENGINE

5814284

$43.56

27

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

28

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.17

29

WASHER-.281X1.00X.051

7556329

$1.49

29

WASHER-.281X1.00X.051

7556329

$1.49

30

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

31

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65
