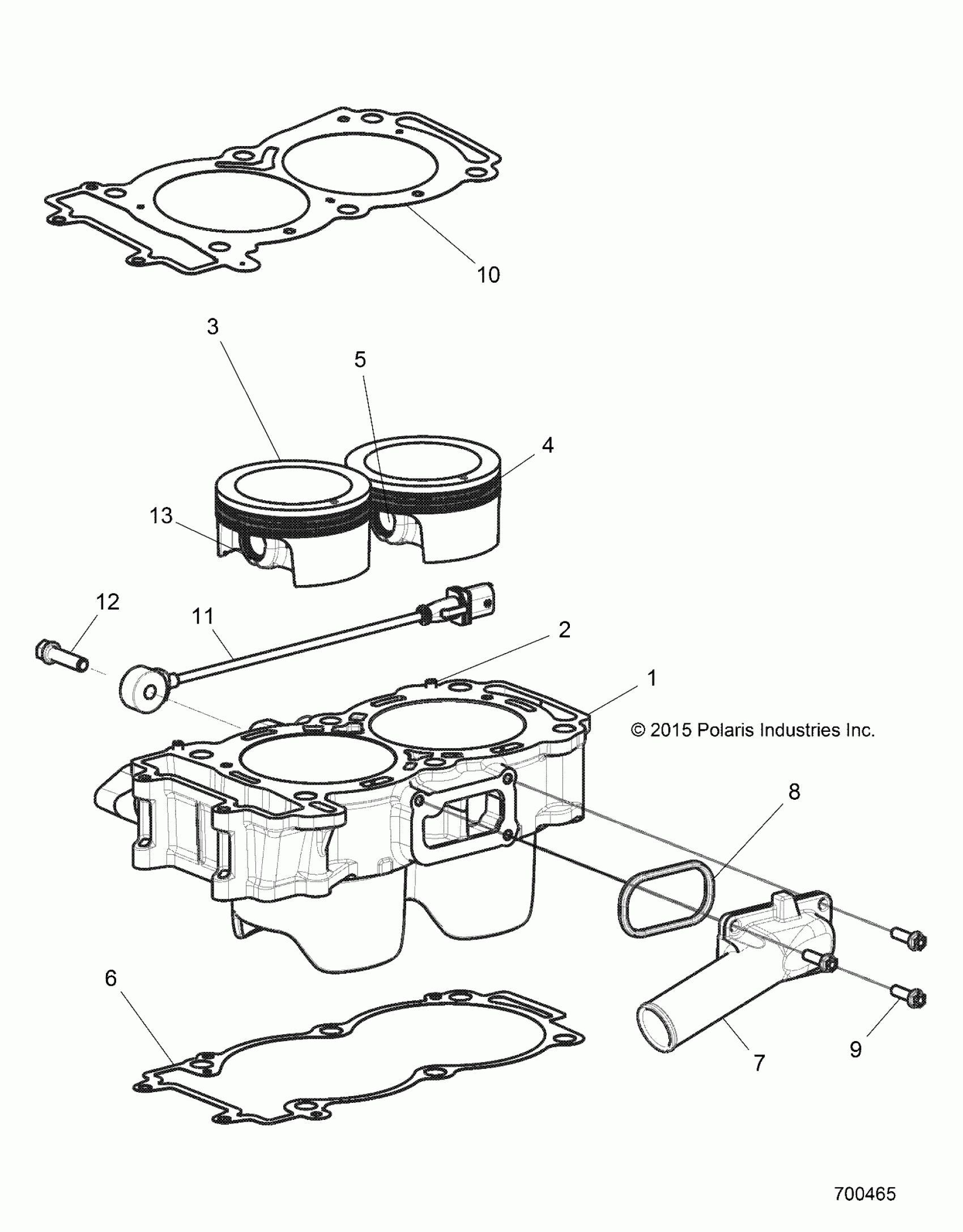

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, CYLINDER AND PISTON - Z17VFE92AK/AM/AB (700465) Diagram

#

Description
Price

1

ASM., CYLINDER [INCL. 2]

3023035

$395.99

2

PIN-DOWEL,M6X10

5132835

$2.39

3

ASM., PISTON [INCL. 4,5,13]

2206216

$151.99

4

KIT, PISTON RINGS [INCL. SET FOR 1 PISTON]

2206217

$76.17

5

PIN, PISTON

3022291

$43.99

6

GASKET, BASE, 2 CYL

5253037

$32.37

7

COVER-WATER INLET,CAST

5632557

$14.39

8

GASKET-WATER,INLET

5813736

$24.27

9

SCREW

7518576

$3.19

10

GASKET, CYLINDER, HEAD

5814437

$59.99

11

SENSOR-DETONATION BOSCH

2410369

$76.89

12

SCREW

7517262

$5.59

13

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.19
