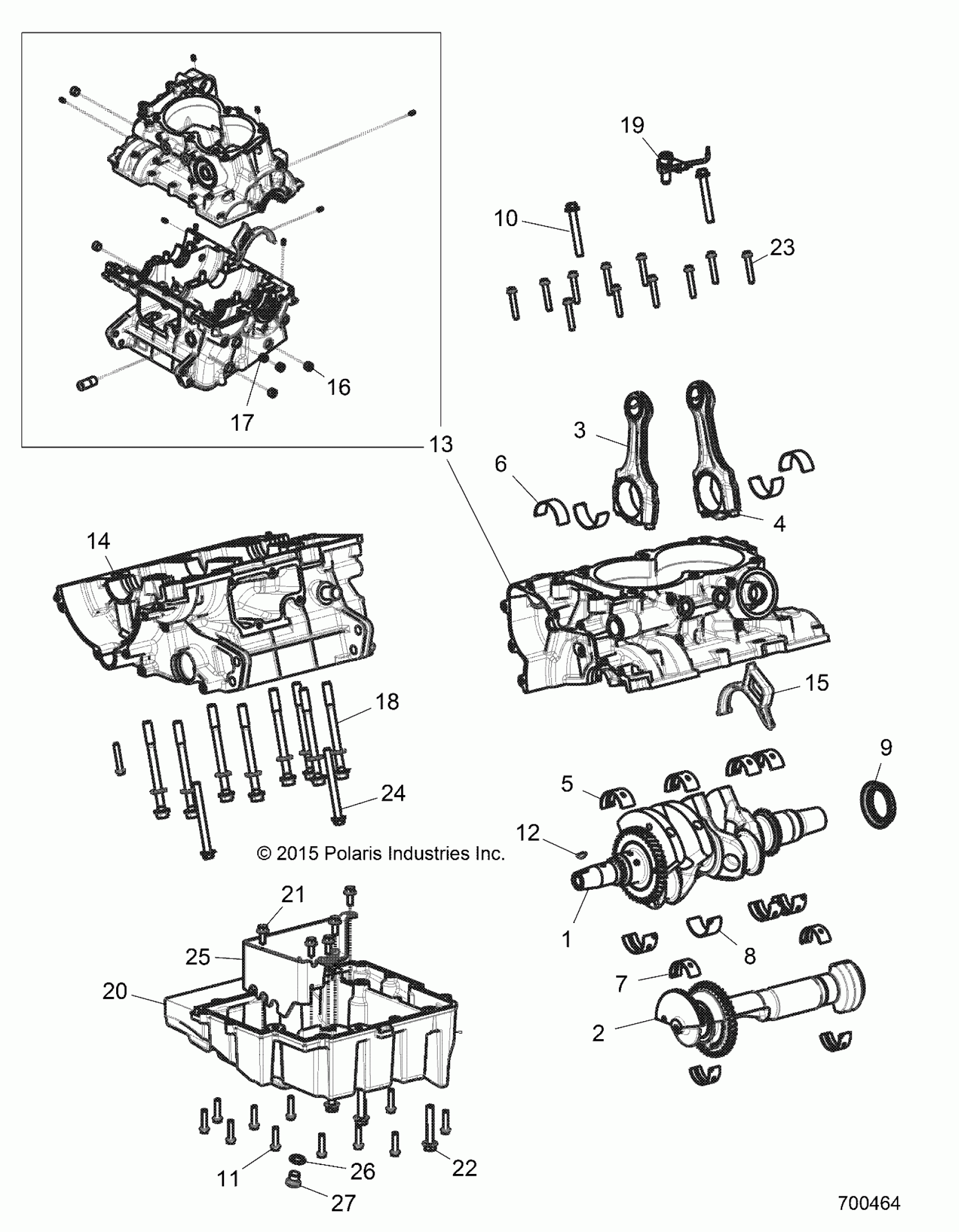

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, CRANKCASE AND CRANKSHAFT - Z17VFE92AK/AM/AB (700464) Diagram

#

Description
Price

1

ASM-CRANKSHAFT V270

3023056

Unavailable

2

ASM., BALANCE SHAFT

1205258

Unavailable

3

ASM-ROD,CONNECTING,2 [INCL. 4]

3023057

Unavailable

4

BOLT-CONROD MJ9X1.0X44

7520356

$23.99

5

BEARING, MAIN, WHITE

3514662-001

$9.59

5

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

5

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

5

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

5

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

6

BEARING, CONNECTING ROD, RED

3514989-015

$11.41

6

BEARING, CONNECTING ROD, WHITE

3514989-016

$11.41

6

BEARING, CONNECTING ROD, BLUE

3514989-027

$11.41

6

BEARING, CONNECTING ROD, YELLOW

3514989-053

$11.41

7

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

8

BEARING-MAIN,CNTR,LWR BLU

3514803-002

$11.99

8

BEARING-MAIN,CNTR,LWR,GREEN

3514803-003

$11.99

8

BEARING-MAIN,CNTR,LWR,YELLOW

3514803-004

$11.99

9

SEAL, FLANGE

3610176

$31.99

10

SCREW

7519186

$6.53

11

SCREW

7519297

$3.99

12

KEY-WOODRUFF,4X5

7721122

$7.84

13

KIT, CRANKCASE [INCL. 14-18,23,24]

2206215

Unavailable

14

PIN-DOWEL,M6X10

5136879

Unavailable

15

DIVERTER, OIL DRAIN

5452616

$20.22

16

PLUG

7052413

$3.99

17

PLUG

7518835

$5.59

18

SCREW

7519141

Unavailable

19

JET, PISTON

3022856

$48.40

20

PAN-OIL

5140221

$191.99

21

SCREW

7519236

$3.19

22

SCREW

7517793

$5.59

23

SCREW

7518578

$3.99

24

SCREW

7519154

$7.19

25

BAFFLE-OIL,STAMPED

5261851

$35.99

25

BAFFLE-OIL,STAMPED

5261851

$35.99

27

PLUG, SOCKET

7052306

$15.37
