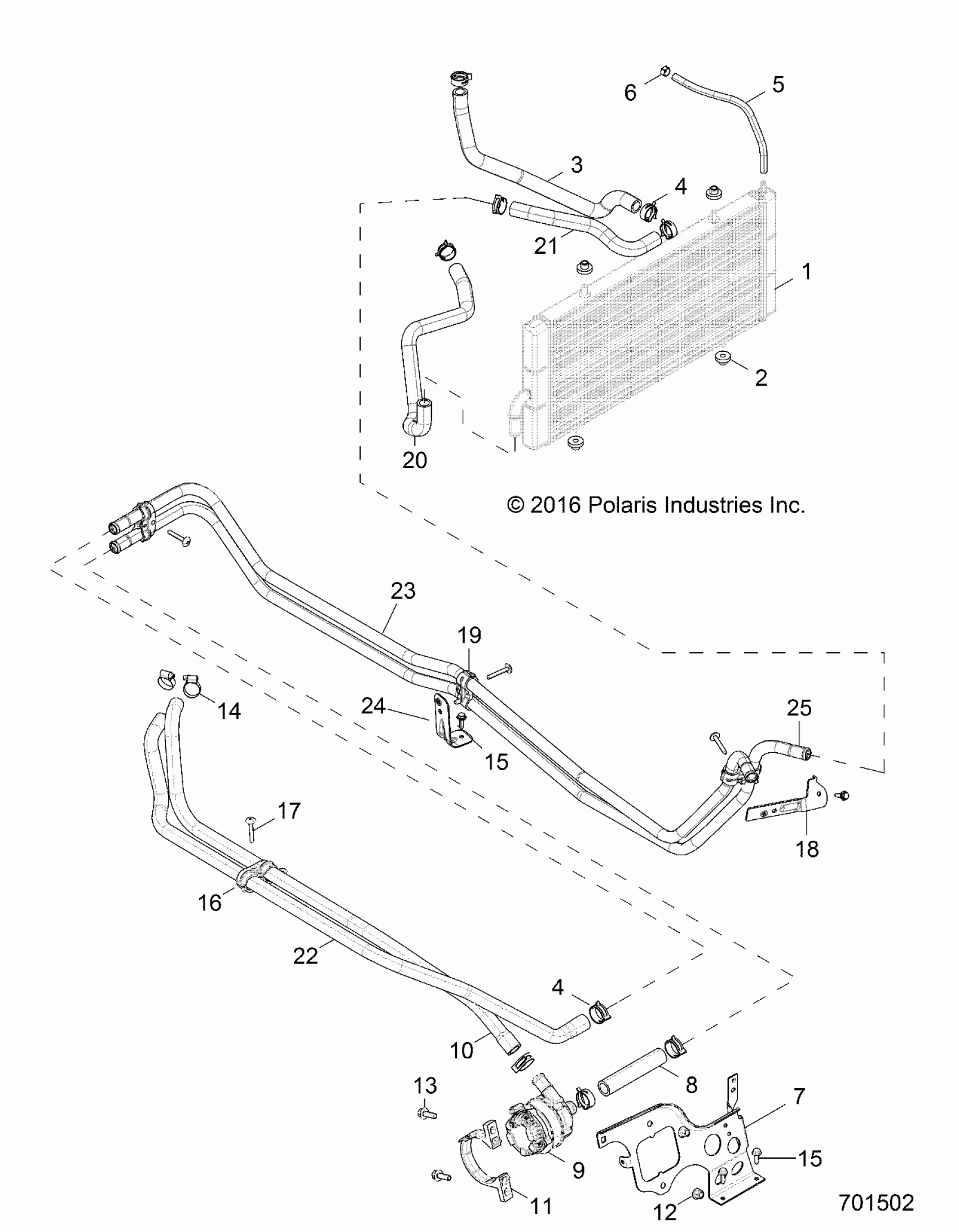

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, COOLING, AUX. SYSTEM - Z17VFE92AK/AM/AB (701502) Diagram

ASM-RADIATOR,CORE

1241115

Unavailable

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

HOSE-OUT,SURGE TANK TO LTR

5416031

$14.39

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

1/4"SAEJ2002,EPDM HOSE,31 CM

8450120-31

Unavailable

HOSE CLAMP, RED

7080003

$1.49

BRKT-MOUNT,WATER PUMP,BLK

5260110-329

$35.99

HOSE-PUMP INLET, 3/4",REAR

5415326

$11.19

ASM-PUMP,WATER,ELECTRIC

2413045

$404.79

HOSE-INTERCOOL,INLET,3/4",RR

5415324

$43.99

BRKT-MNT,WATER PUMP

5452166

$7.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BRACKET-COOLANT TUBE

5451221

$8.79

SCR-M6X1X40,TR/TX-BLK

7519001

$3.99

BRKT-COOLING TUBE

5263212

$7.19

BRACKET-COOLANT TUBE,3/4"

5451785

$4.79

HOSE-RADIATOR,3/4",UPPER

5416026

$27.99

HOSE-RADIATOR,3/4",LOWER

5416027

$14.39

HOSE-INTERCOOL,OUTLET,3/4",RR

5415325

$47.99

TUBE-COOLANT,3/4",UPPER,MP

5140833

$83.99

BRKT-COOLANT TUBE

5260107

$8.79

TUBE-COOLANT,3/4",LOWER,MP

5140834

$92.39
