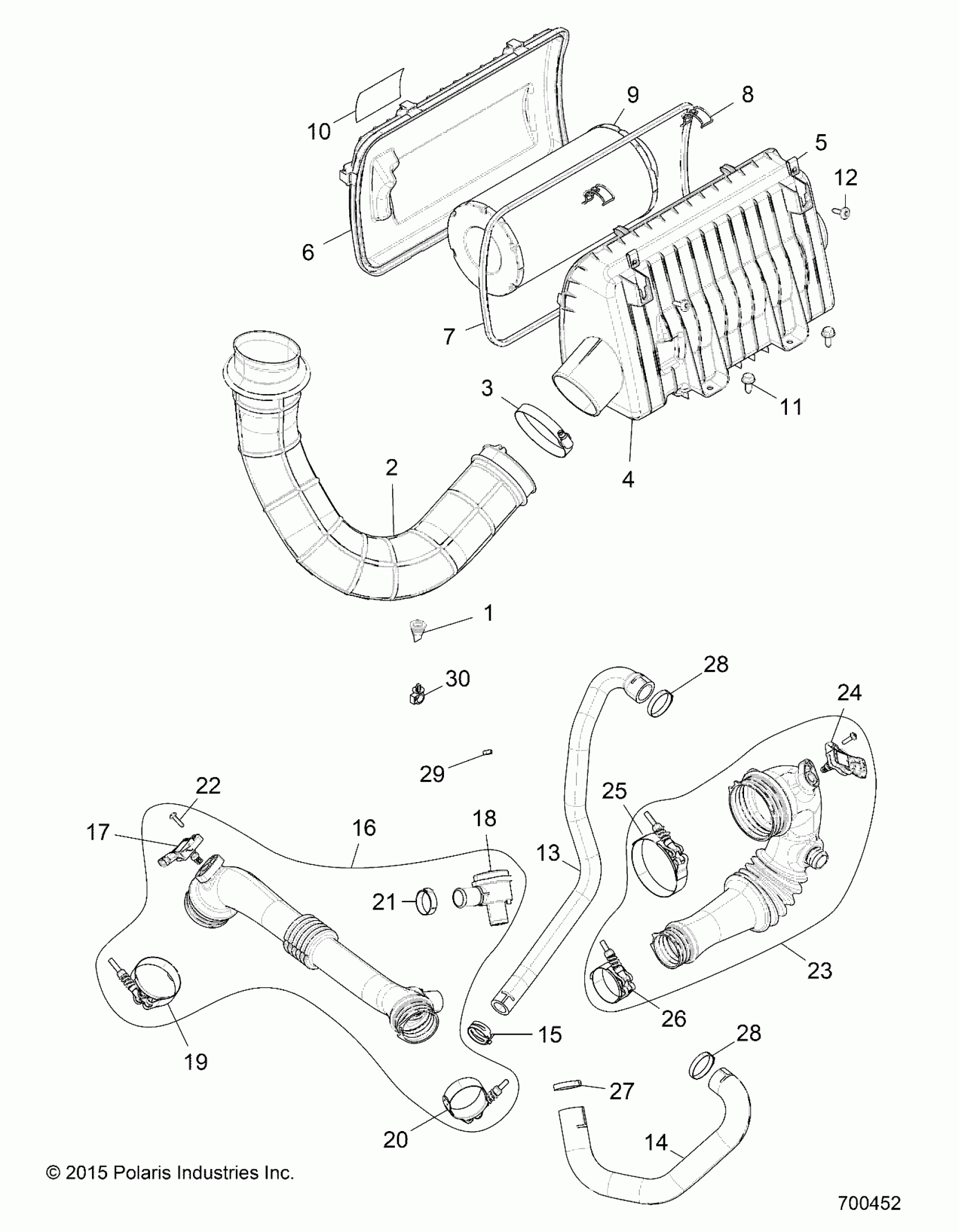

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ENGINE, AIR INTAKE SYSTEM - Z17VFE92AK/AM/AB (700452) Diagram

#

Description
Price

1

PLUG-DRAIN

5414472

$5.56

2

HOSE-AIRBOX,IN

5414691

$130.70

3

CLAMP-HOSE,3.75,SS

7080907

$11.11

4

ASM-AIRBOX HOUSING [INCL 5]

1240747

$93.08

5

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.19

6

ASM-AIRBOX COVER [INCL 7,8]

1240748

$76.89

7

SEAL-AIRBOX

5813929

$28.32

8

CLIP-AIRBOX

7081872

$5.56

9

ASM-FILTER

1241084

$35.71

9

K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit

2882234

$63.49

10

DECAL-CAUT.AIR BOX

7182652

Unavailable

11

BOLT-M8X1.25X20,HXFLG

7518555

$2.38

12

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

13

HOSE-VENT,ENG

5415437

$58.08

14

HOSE-VENT,BOV

5415474

$116.17

15

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

16

ASM-DUCT,CHARGE AIR [INCL 17-21, 1 QTY OF 22]

1240931

$132.99

17

SENSOR-TMAP,3BAR

2413095

$104.49

18

VALVE-DUMP,TURBO

3022784

$54.99

19

CLAMP-HOSE T-BOLT,66.3 DIA

7082091

$35.71

20

CLAMP-HOSE T-BOLT,56 DIA

7082092

$35.71

21

CLAMP-OETIKER,16704932-32

7082095

$5.56

22

SCR-PLASTITE,5.0MMX20-PN-T25

7519952

$3.97

23

ASM-DUCT,INTAKE AIR [INCL 24-26, 1 QYT OF 22]

1240933

$124.99

24

SENSOR-TMAP DSS3-TF

2411528

$97.13

25

CLAMP-HOSE T-BOLT,87.3 DIA

7082093

$31.75

26

CLAMP-HOSE T-BOLT,52.3 DIA

7082094

$31.75

27

CLAMP-OETIKER, 16704965-36.1

7082107

$4.76

28

CLAMP-OETIKER,16702031-38.5

7082108

$5.56

28

CLAMP-OETIKER,16702031-38.5

7082108

$5.56

29

CLAMP-OETIKER,16700005-10.0

7082109

$3.97

30

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.56
