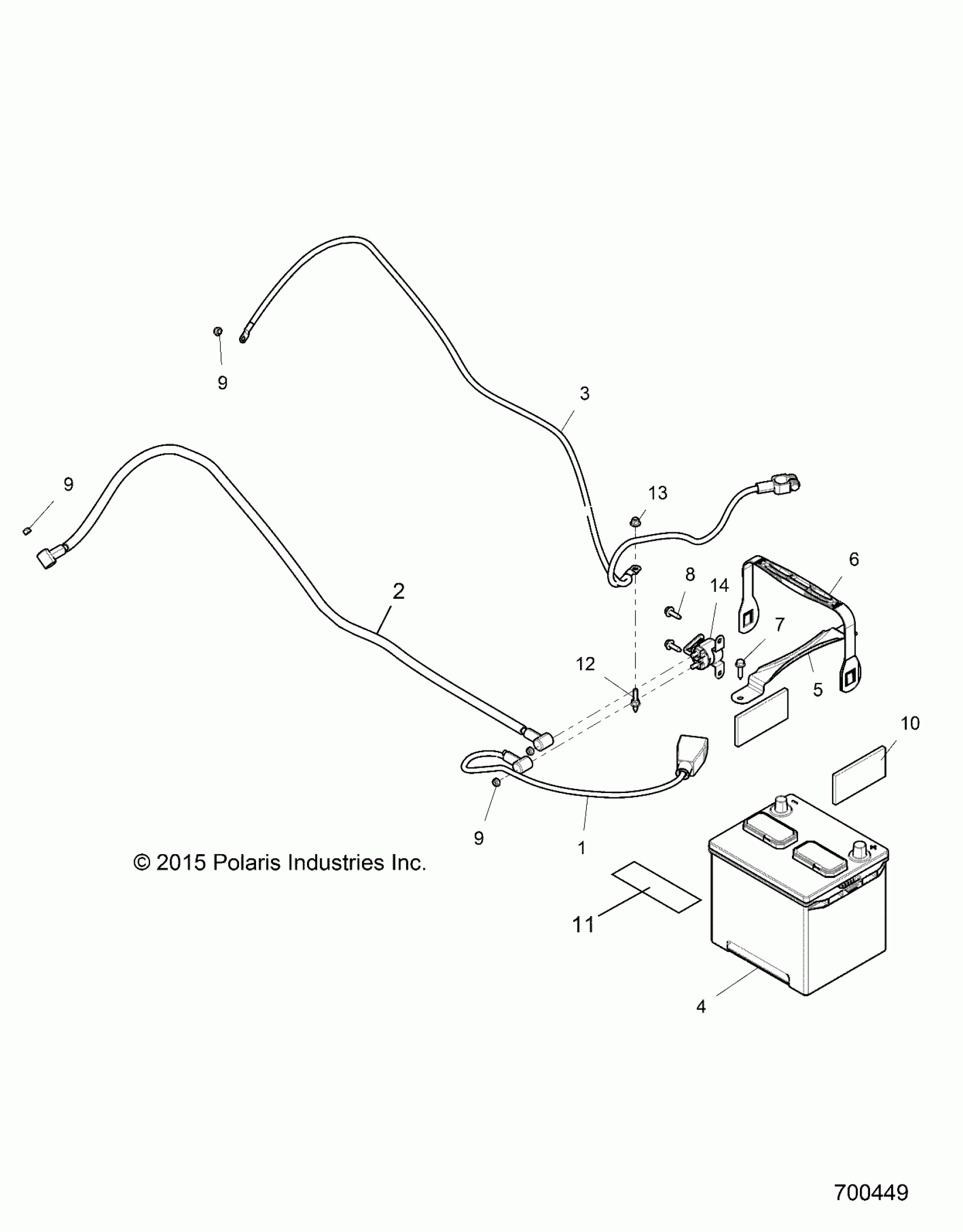

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB ELECTRICAL, BATTERY - Z17VFE92AK/AM/AB (700449) Diagram

#

Description
Price

1

CABLE, BATTERY TO SOLENOID

4015425

$28.32

2

CABLE-START TO SOLENOID

4015426

$36.41

3

CABLE-GROUND,ENG,BAT,CHAS

4015424

$53.24

4

BATTERY-575 CCA,FLOODED,FILLED

4014132

$166.65

4

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$190.48

5

STRAP, BATTERY, MAIN, BLACK

5257312-329

$24.99

6

STRAP, BATTERY, LIFT

5450916

$5.65

7

SCREW

7519731

$3.97

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

10

PAD, BATTERY, FOAM

5814037

$7.27

11

DECAL-BATTERY,POLARIS

7177052

$5.65

12

STUD

7519333

$7.94

13

NUT-M6 FLANGE,NYLOC

7547274

$1.19

14

SOLENOID-STARTER,SEALED

4014655

$54.99
