- RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB
DRIVE TRAIN, MAIN GEARCASE INTERNALS 1333744 - Z17VFE92AK/AM/AB (701393)

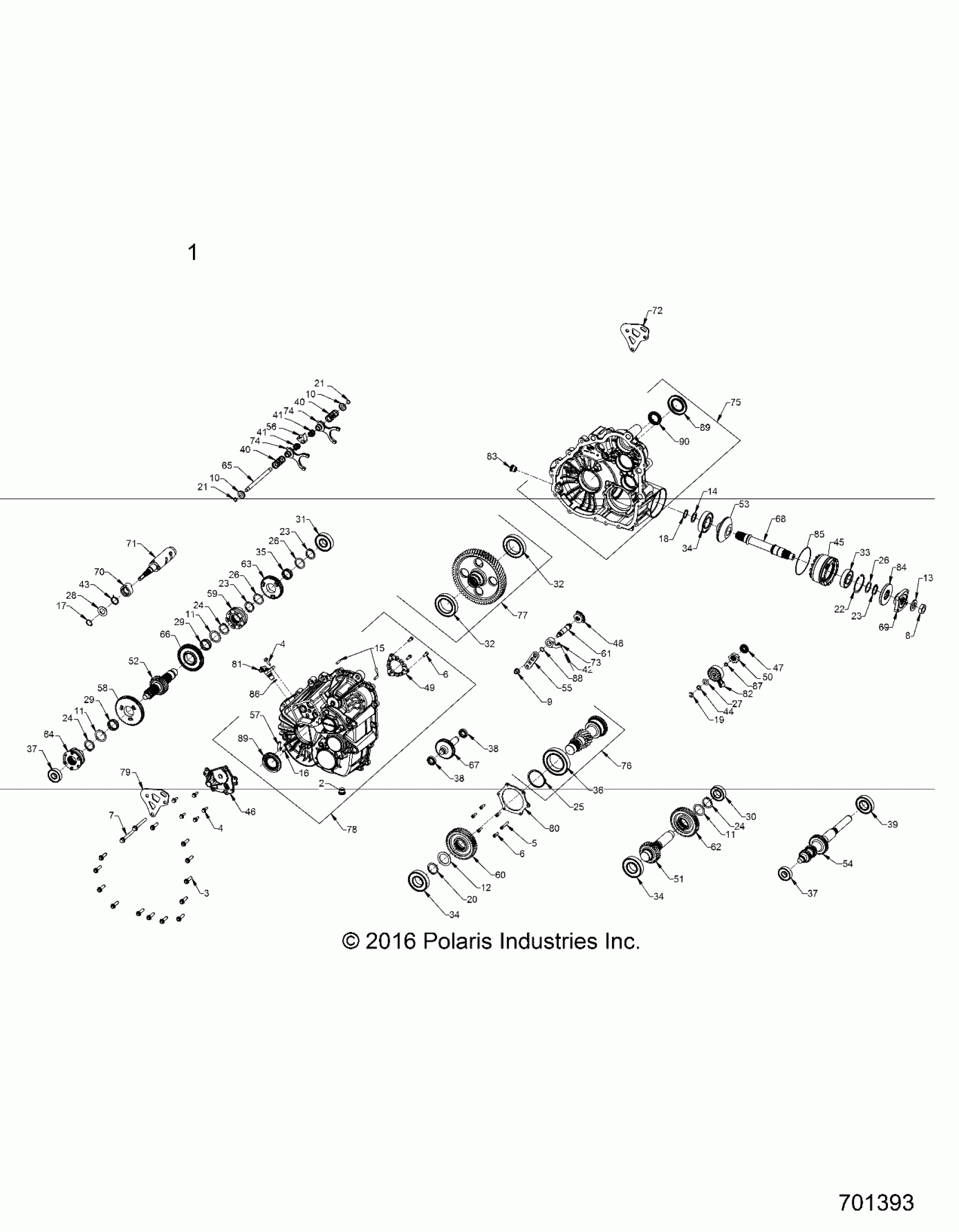

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB DRIVE TRAIN, MAIN GEARCASE INTERNALS 1333744 - Z17VFE92AK/AM/AB (701393) Diagram
#
1
ASM-GEARCASE,COMPLETE [INCL. ALL][IF BUILT BEFORE 8/1/16 OR AFTER 8/20/16]
1333744
$4,078.79
2
PLUG, M18 X 1.5 MAGNETIC
3234756
$31.99
3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
4
SCREW, HEX FLANGE HEAD M6 X 1 X 20
3235206
$7.19
4
SCREW, HEX FLANGE HEAD M6 X 1 X 20
3235206
$7.19
5
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
3235208
$11.19
6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
$3.99
6
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
3235332
$3.99
7
SCREW HEX FLANGE M8 X 1.25 X 70
3235802
$6.15
8
NUT, JAM M20 X 1.5
3235803
$7.99
9
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$7.99
10
WASHER-CUP
3234091
$9.59
10
WASHER-CUP
3234091
$9.59
11
WASHER 32.3 X 42 X 1.5
3235211
$10.39
11
WASHER 32.3 X 42 X 1.5
3235211
$10.39
11
WASHER 32.3 X 42 X 1.5
3235211
$10.39
12
WASHER 35.6 X 50 X 1.5
3235212
$13.59
13
WASHER, LOCKING 21.4 X 39 x 3.4
3235804
$11.43
14
WASHER 25.26 X 34 X 2
3235805
$7.03
15
PIN, DOWEL 6 X 20
3234330
$7.19
16
PIN, SPRING SLOTTED 6 X 12
7043746
$7.19
17
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
18
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
19
RING SNAP
3233834
$10.39
20
RING, RETAINING SHAFT, DIA. 1.375
3233364
$6.39
21
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
21
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
22
RING, RETAINING BASIC INTERNAL, 62MM
3234741
$9.59
23
RING, RETAINING
3234205
$11.19
23
RING, RETAINING
3234205
$11.19
23
RING, RETAINING
3234205
$11.19
24
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
24
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
24
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
25
RING, RETAINING VSH-237
3235216
$10.39
26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
27
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
$10.39
28
SPACER, 19.4 X 34 X 2
3235883
$23.99
29
BEARING, NEEDLE
3233014
$43.99
29
BEARING, NEEDLE
3233014
$43.99
30
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
31
BEARING
3233020
$47.99
32
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
32
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
33
BEARING-BALL 6206 C3 30X62X16
3233790
$27.99
34
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
34
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
34
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
35
BEARING, NEEDLE CAGE ASSY
3233384
$31.99
36
BEARING, BALL 6012 C3 60 X 95 X 18
3235218
$59.99
37
BEARING, BALL 6303 17 X 47 X 14
3234652
$15.99
37
BEARING, BALL 6303 17 X 47 X 14
3234652
$15.99
38
BEARING, BALL 6903 17 X 30 X 7
3235807
$35.99
38
BEARING, BALL 6903 17 X 30 X 7
3235807
$35.99
39
BEARING, BALL 6206RSH2 STD 30X62X16
3235496
$31.99
40
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
40
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
41
SPRING, COMPRESSION 0.46 I.D. X 0.73
3234089
$23.99
41
SPRING, COMPRESSION 0.46 I.D. X 0.73
3234089
$23.99
42
SPRING, COMPRESSION
3234578
$12.79
43
SPRING, TORSION
3235885
$19.99
44
SPRING, WASHER
3235327
$9.59
45
TUBE, SNORKEL MACH
3235947
$99.99
46
COVER, SECTOR GEARS MACH
3235809
$39.59
47
GEAR, SECTOR 16T
3233839
$31.99
48
GEAR-SECTOR,31T
3233832
$31.99
49
PLATE, PARK 12-FACE
3235456
$35.99
50
STAR, DETENT
3235982
$31.99
51
SHAFT, IDLER 29T
3235223
$107.99
52
SHAFT-REVERSE,27T(285878)
3235380
$243.99
53
GEAR, 19T SNORKEL
3235812
$123.99
54
SHAFT, INPUT 43T/24T/25T
3235846
$255.19
55
BELLCRANK 92 DEGREE
3235227
$23.99
56
COLLAR-SHIFT
3234073
$31.99
57
TUBE, VENT 90 -1/4" HOSE
3234230
$9.59
58
GEAR, LOW 67T
3235232
$115.99
59
ENGAGEMENT DOG, 6-FACE
3235233
$119.99
60
GEAR, 46T STAGE 3
3235236
$103.99
61
SHAFT-SHIFT(352973)
3235238
$37.61
62
GEAR, 46T STAGE 2
3235381
$123.99
63
GEAR, 52T
3235411
$139.99
64
SHIFT DOG, PARK
3235457
$135.99
65
RAIL, SHIFT SHAFT
3235542
$27.99
66
GEAR, REVERSE 61T
3235813
$107.99
67
GEAR, IDLER 43T
3235814
$107.99
68
SHAFT, FRONT OUTPUT
3235815
$159.99
69
COUPLER
3235816
$43.99
70
PARK CAM
3235983
$151.99
71
DRUM, SHIFT MACH
3235984
$263.99
72
WELDMENT, REAR MOUNT BRACKET
3235817
$43.99
73
SUBASSEMBLY, PAWL DETENT, ROLLER
3235452
$31.99
74
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
74
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
75
SUBASSEMBLY, LH CASE
3235949
$466.39
76
SUBASSEMBLY, PINION
3235820
$347.99
77
SUBASSEMBLY, OUTPUT
3235847
$284.23
78
SUBASSEMBLY, RH CASE
3235992
$347.99
79
BRACKET, REAR MOUNT
3235822
$39.99
80
COVER, BEARING CENTER DRIVE
3235823
$43.99
81
SENSOR-SPEED,TRANS
4013908
Unavailable
82
SWITCH, ROTARY 2 PIN RESISTIVE
7662299
$111.99
83
PLUG, M18 X 1.5
3234755
$27.99
84
SEAL, TRIPLE LIP 30 X 75 X 8
3235824
$55.99
85
O-RING 3.609 I.D. X 0.139
3235948
$6.39
86
O-RING
3234302
$7.19
87
O-RING VITON
3233836
$6.87
88
O-RING VITON
3233828
$6.79
89
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
3235052
$31.99
89
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
3235052
$31.99
90
SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON
3235848
$31.99
