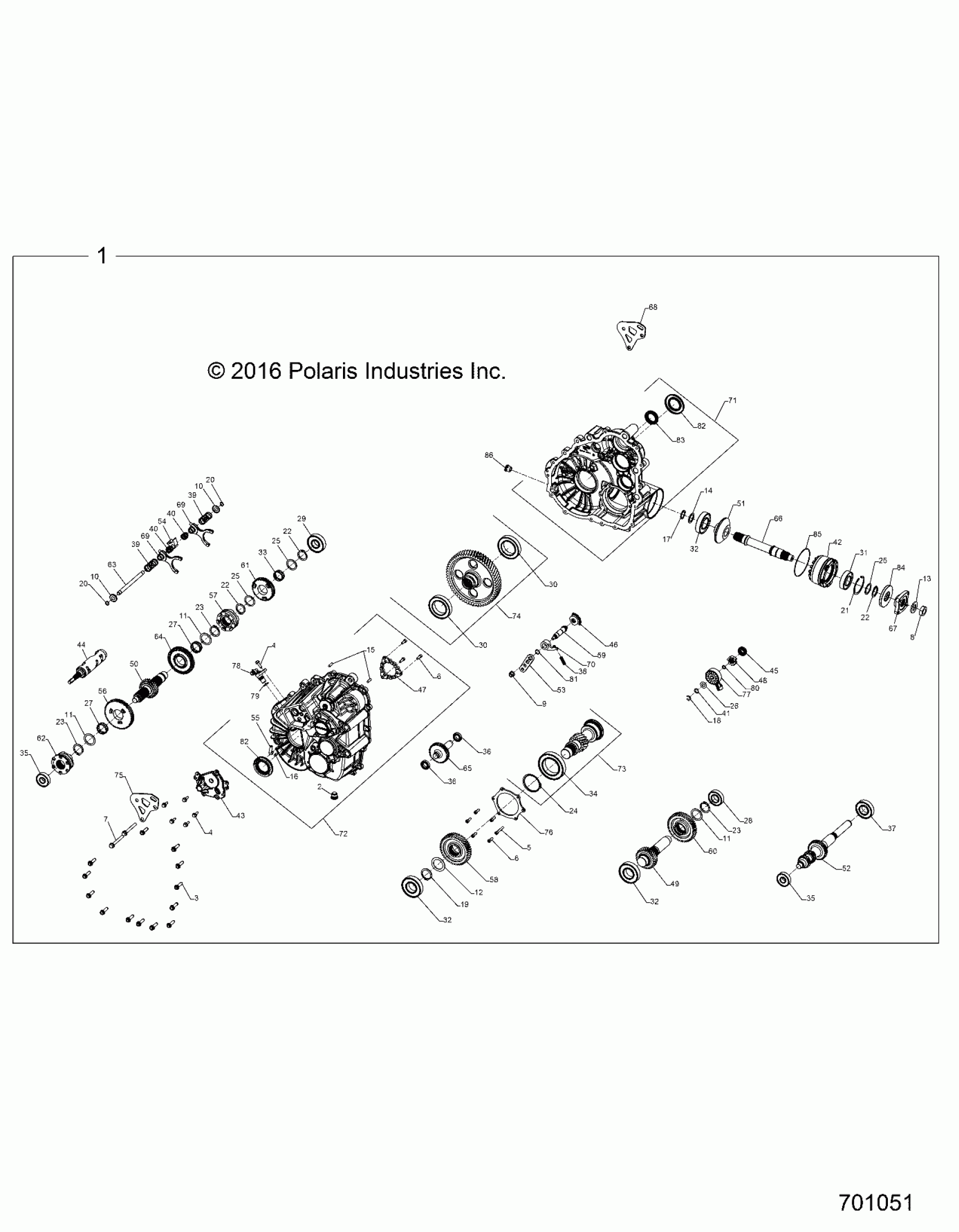

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB DRIVE TRAIN, MAIN GEARCASE INTERNALS 1333610 - Z17VFE92AK/AM (701051) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE [INCL. ALL][IF BUILT 8/2/16 - 8/19/16]

1333610

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

3235208

$11.11

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

7

SCREW HEX FLANGE M8 X 1.25 X 70

3235802

$6.64

8

NUT, JAM M20 X 1.5

3235803

$7.94

9

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

10

WASHER-CUP

3234091

$9.52

10

WASHER-CUP

3234091

$9.52

11

WASHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 32.3 X 42 X 1.5

3235211

$10.32

12

WASHER 35.6 X 50 X 1.5

3235212

$13.49

13

WASHER, LOCKING 21.4 X 39 x 3.4

3235804

$12.34

14

WASHER 25.26 X 34 X 2

3235805

$7.59

15

PIN, DOWEL 6 X 20

3234330

$7.14

16

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

17

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

18

RING SNAP

3233834

$10.32

19

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING BASIC INTERNAL, 62MM

3234741

$9.52

22

RING, RETAINING

3234205

$11.11

22

RING, RETAINING

3234205

$11.11

22

RING, RETAINING

3234205

$11.11

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING, RETAINING VSH-237

3235216

$10.32

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

27

BEARING, NEEDLE

3233014

$43.65

27

BEARING, NEEDLE

3233014

$43.65

28

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

29

BEARING

3233020

$47.62

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

31

BEARING-BALL 6206 C3 30X62X16

3233790

$27.78

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

34

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.52

35

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

35

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

36

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

36

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

37

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$37.99

38

SPRING, COMPRESSION 0.36 OD X 1.125

3235942

Unavailable

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

41

SPRING, WASHER

3235327

$9.52

42

TUBE, SNORKEL MACH

3235947

$105.22

43

COVER, SECTOR GEARS MACH

3235809

$47.49

44

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

45

GEAR, SECTOR 16T

3233839

$36.41

46

GEAR-SECTOR,31T

3233832

$36.41

47

PLATE, PARK 12-FACE

3235456

$40.46

48

DETENT STAR

3235603

$40.46

49

SHAFT, IDLER 29T

3235223

$128.24

50

SHAFT-REVERSE,27T(285878)

3235380

$246.89

51

GEAR, 19T SNORKEL

3235812

$133.56

52

SHAFT, INPUT 43T/24T/25T

3235846

$275.49

53

BELLCRANK 92 DEGREE

3235227

$28.32

54

COLLAR-SHIFT

3234073

$31.75

55

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

56

GEAR, LOW 67T

3235232

$125.46

57

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

58

GEAR, 46T STAGE 3

3235236

$128.24

59

SHAFT-SHIFT(352973)

3235238

$42.74

60

GEAR, 46T STAGE 2

3235381

$156.74

61

GEAR, 52T

3235411

$149.75

62

SHIFT DOG, PARK

3235457

$145.70

63

RAIL, SHIFT SHAFT

3235542

$28.32

64

GEAR, REVERSE 61T

3235813

$113.32

65

GEAR, IDLER 43T

3235814

$113.32

66

SHAFT, FRONT OUTPUT

3235815

$161.89

67

COUPLER

3235816

$44.51

68

WELDMENT, REAR MOUNT BRACKET

3235817

$53.24

69

SUBASSEMBLY SHIFT FORK

3235454

$89.03

69

SUBASSEMBLY SHIFT FORK

3235454

$89.03

70

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

71

SUBASSEMBLY, LH CASE

3235949

$527.24

72

SUBASSEMBLY, RH CASE

3235950

$479.99

73

SUBASSEMBLY, PINION

3235820

$432.24

74

SUBASSEMBLY, OUTPUT

3235847

$322.99

75

BRACKET, REAR MOUNT

3235822

$40.46

76

COVER, BEARING CENTER DRIVE

3235823

$48.56

77

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$117.37

78

SENSOR-SPEED

4082135

$109.27

79

O-RING, -016 VITON

3236279

$5.65

80

O-RING VITON

3233836

$6.87

81

O-RING VITON

3233828

$6.87

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

83

SEAL, TRIPLE LIP 1.180X1.850X0.315 VITON

3235848

$37.99

84

SEAL, TRIPLE LIP 30 X 75 X 8

3235824

$66.49

85

O-RING 3.609 I.D. X 0.139

3235948

$7.59

86

PLUG, M18 X 1.5

3234755

$27.78
