- RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB
CHASSIS, MAIN FRAME AND SKID PLATES - Z17VFE92AK/AM/AB (700303)

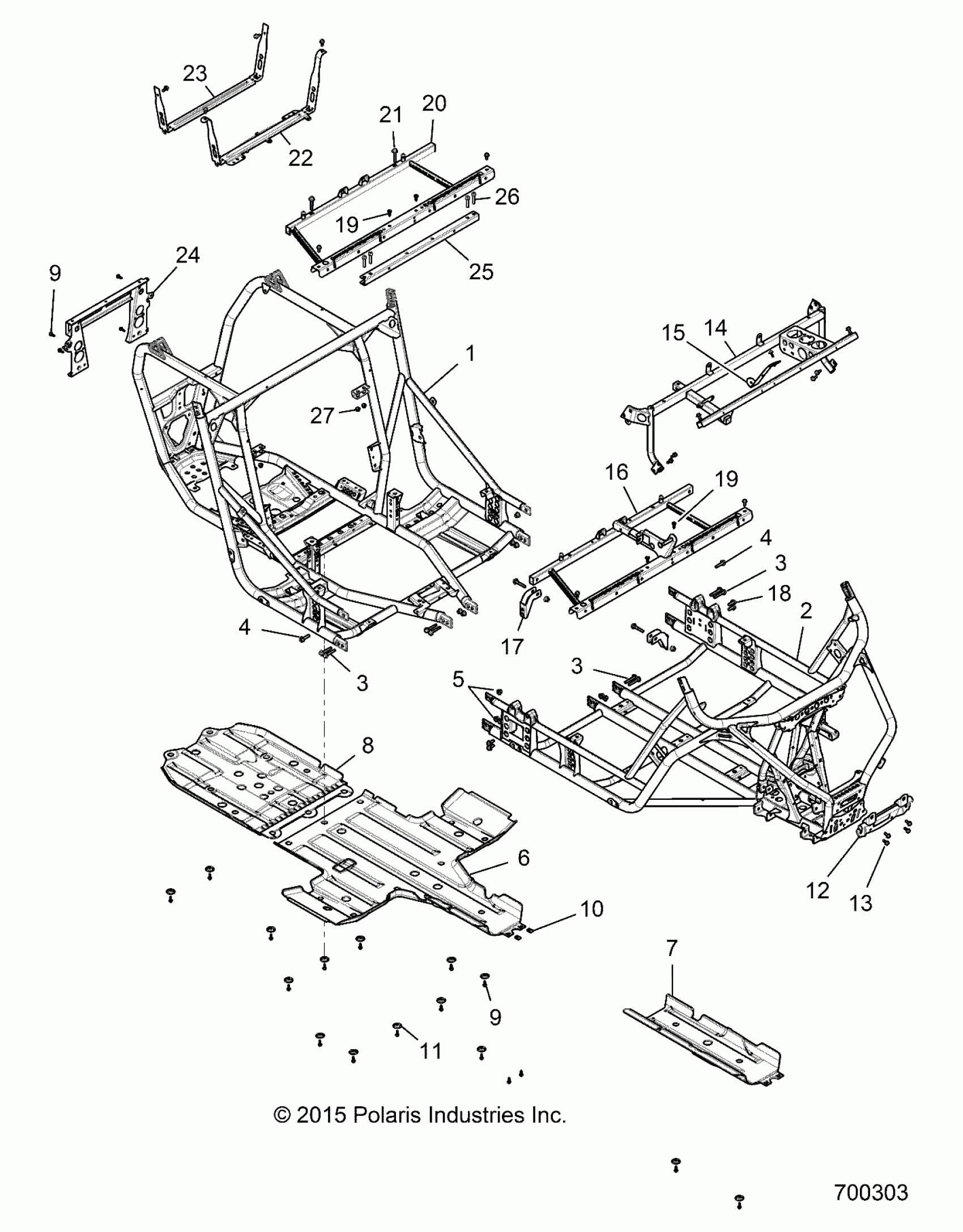

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB CHASSIS, MAIN FRAME AND SKID PLATES - Z17VFE92AK/AM/AB (700303) Diagram
#
Description
Price
1
WELD-MAIN FRAME,BLK
1022402-458
$2,230.79
2
WELD-MAINFRAME,FRT,MP,SWY,W,BK
1022703-458
Unavailable
3
SCREW
7519285
Unavailable
3
SCREW
7519285
Unavailable
3
SCREW
7519285
Unavailable
4
SCREW
7519332
$5.59
4
SCREW
7519332
$5.59
5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
Unavailable
6
PLATE, SKID, BLACK
5450239-070
Unavailable
7
PLATE, SKID, BLACK
5450556-070
$147.99
8
PLATE, SKID, REAR, BLACK
5452063-070
Unavailable
9
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
Unavailable
9
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
Unavailable
10
NUT, U-TYPE
7547674
$1.49
11
WASHER-SKID PLATE
7556065
$4.79
12
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
$51.99
13
BOLT
7518555
Unavailable
14
DASH, BLACK
1020984-329
$307.99
15
BRACKET, DIN MOUNT, BLACK
5257304-329
$27.99
16
BASE, SEAT, MP, BLACK
1020572-329
$183.99
17
BRACKET, SEAT SUPPORT, FRONT, MP, BLACK
5258097-329
$51.99
18
SCREW
7518934
$3.99
19
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
19
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
20
BASE, SEAT, REAR, BLACK
1019777-329
$223.99
21
BOLT
7518474
$4.79
22
BRACKET, BOX STRAP, BLACK
5260947-329
$43.99
23
BRACKET, BOX SUPPORT, REAR, BLACK
5260948-329
$43.99
24
SUPPORT, REAR, MATTE BLACK
1019529-458
$115.99
25
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
$35.99
26
SCREW
7516732
$1.59
27
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
