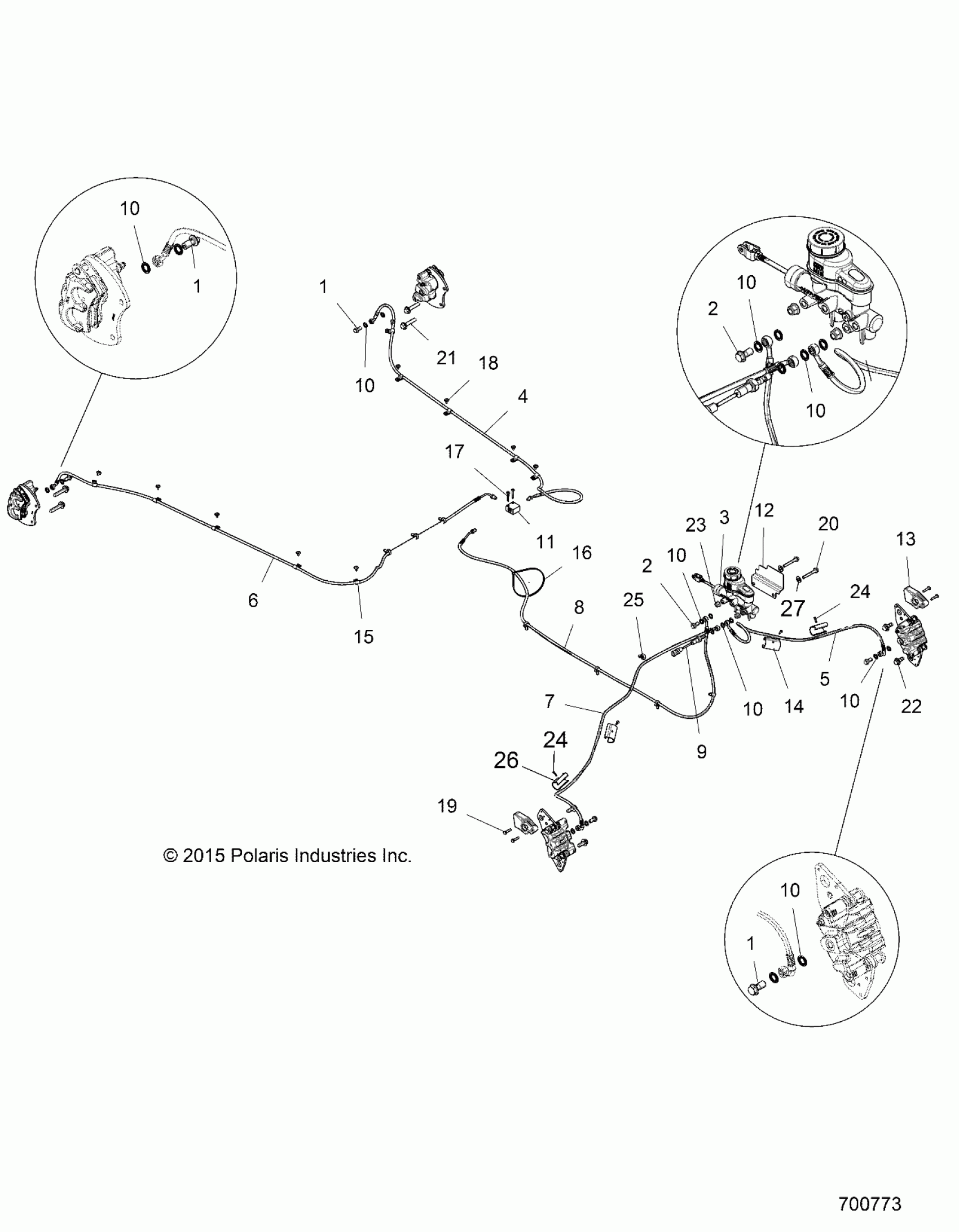

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB BRAKES, BRAKE LINES AND MASTER CYLINDER - Z17VFE92AK/AM/AB (700773) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

3

ASM., TANDEM MASTER CYLINDER

1911982

$131.99

4

LINE, BRAKE, RL

1912000

$99.99

5

LINE, BRAKE, FL

1912519

$59.99

6

LINE, BRAKE, REAR

1912061

$99.99

7

LINE, BRAKE, FRONT

1912520

$79.99

8

LINE, BRAKE, MC/T

1912165

$95.99

9

SWITCH, BRAKE, DOUBLE, SEALED

4014262

Unavailable

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

10

SEAL, STAT

5413212

$4.79

11

FITTING-TEE,BRAKE

7052293

$59.99

12

SHIELD, MASTER CYLINDER

5259049

$43.99

13

SCRAPER, BRAKE, FRONT

5452134

$8.79

14

CLIP, BRAKE LINE

5451487

$3.19

15

CLAMP-WIRE/TUBE .25 DIA

7081246

$1.49

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

17

SCREW

7512025

$4.79

18

SCREW

7518176

$4.79

19

SCREW

7519036

$11.19

20

SCREW

7519298

$3.99

21

BOLT, HEX FLANGE

7518559

$5.59

22

BOLT, HEX FLANGE W/PATCH

7518760

$9.59

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

Rivet

7621323

$1.49

24

Rivet

7621323

$1.49

25

Clip

7670102

Unavailable

26

CLIP, BRAKE LINE, INNER

5451488

$5.59

27

WASHER

7555954

$4.79
