Description

Price

1

FRAME, SEAT

1021289

$89.99

2

ASM-SEAT BACK,HAV RED/BLK [AK]

2686791

$204.99

2

ASM-SEAT BACK,TITANIUM/BLACK [AM]

2686772

$399.99

2

ASM-SEAT BACK,BLK/V.BLUE [AB]

2687283

$471.10

2

ASM-SEAT BACK,HAV RED/BLK [AK]

2686791

$204.99

2

ASM-SEAT BACK,TITANIUM/BLACK [AM]

2686772

$399.99

2

ASM-SEAT BACK,BLK/V.BLUE [AB]

2687283

$471.10

3

ASM-SEAT BTM,HAV RED/BLK [AK]

2686794

$309.99

3

ASM-SEAT BTM,TITANIUM/BLACK [AM]

2686775

$309.99

3

ASM-SEAT BTM,BLK/V.BLUE [AB]

2687286

$299.99

3

ASM-SEAT BTM,HAV RED/BLK [AK]

2686794

$309.99

3

ASM-SEAT BTM,TITANIUM/BLACK [AM]

2686775

$309.99

3

ASM-SEAT BTM,BLK/V.BLUE [AB]

2687286

$299.99

4

SCREW

7515177

$3.17

4

SCREW

7515177

$3.17

5

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

2685704

$210.46

6

SEAT-BASE

5450170

$34.99

7

PLATE-LATCH,SEAT

5258647

$6.35

7

PLATE-LATCH,SEAT

5258647

$6.35

8

GROMMET, SEAT BASE

5413441

$3.97

8

GROMMET, SEAT BASE

5413441

$3.97

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING, LATCH, SEAT

7081466

$39.99

10

SPRING, LATCH, SEAT

7081466

$39.99

11

Screw

7517610

$1.59

11

Screw

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

13

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

$14.56

14

BOLT, CARRIAGE

7518994

$3.22

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$60.70

17

BRACKET, SEAT SLIDER LEVER

5260733

$28.32

18

SPRING

7044099

$5.65

19

BOLT, SHOULDER

7518786

$2.38

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5340145

$5.65

22

SCREW

7519296

$1.59

22

SCREW

7519296

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

24

Washer, Flat

7555859

$1.19

24

Washer, Flat

7555859

$1.19

25

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.97

26

PAD-SEAT BASE,BLK

5415501-070

$48.40

27

LATCH-COVER PLATE,BLK

5450510-070

$5.65

27

LATCH-COVER PLATE,BLK

5450510-070

$5.65

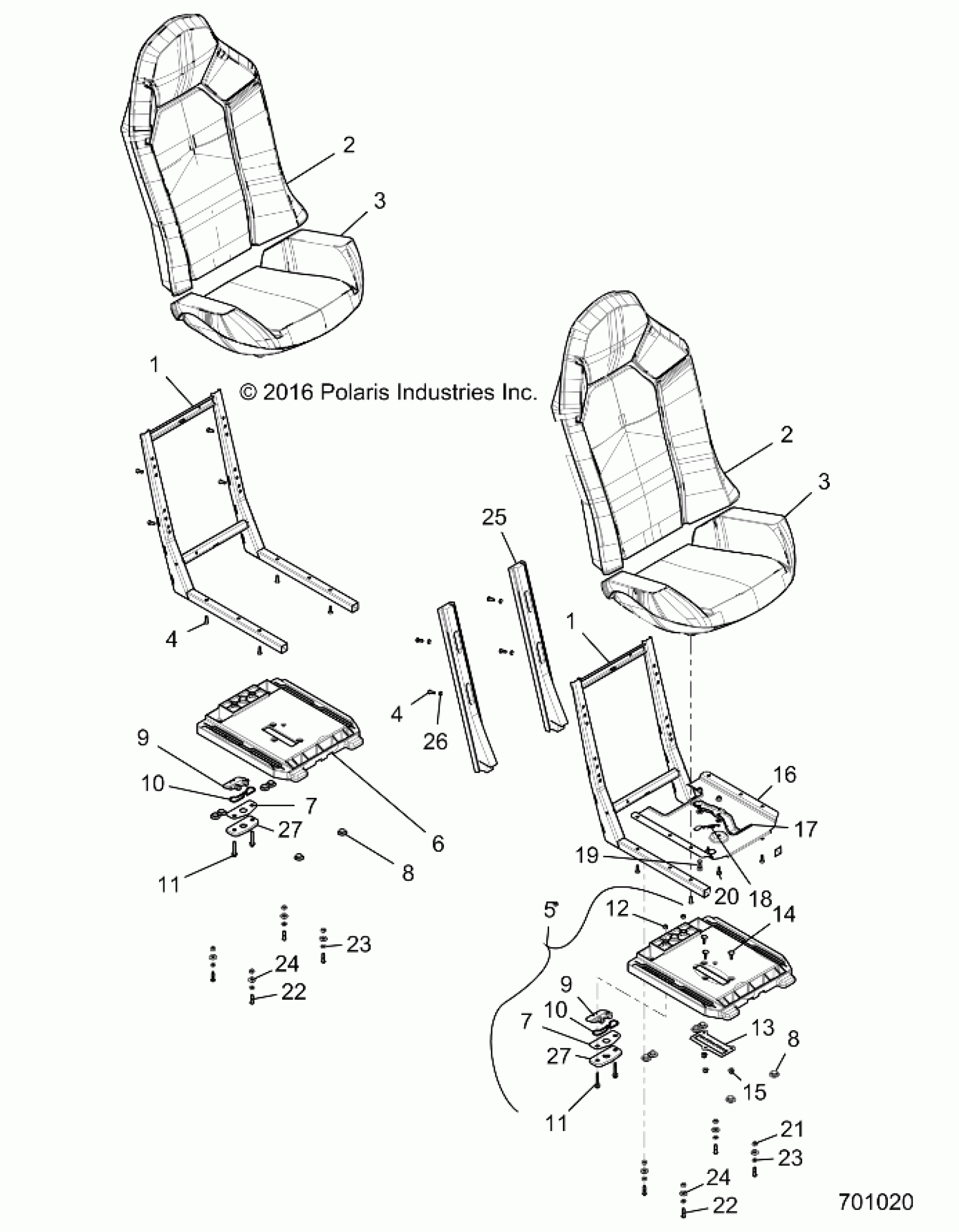

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB BODY, SEAT ASM. AND SLIDER - Z17VFE92AK/AM/AB (701020) Diagram

FRAME, SEAT

ASM-SEAT BACK,HAV RED/BLK [AK]

ASM-SEAT BACK,TITANIUM/BLACK [AM]

ASM-SEAT BACK,BLK/V.BLUE [AB]

ASM-SEAT BACK,HAV RED/BLK [AK]

ASM-SEAT BACK,TITANIUM/BLACK [AM]

ASM-SEAT BACK,BLK/V.BLUE [AB]

ASM-SEAT BTM,HAV RED/BLK [AK]

ASM-SEAT BTM,TITANIUM/BLACK [AM]

ASM-SEAT BTM,BLK/V.BLUE [AB]

ASM-SEAT BTM,HAV RED/BLK [AK]

ASM-SEAT BTM,TITANIUM/BLACK [AM]

ASM-SEAT BTM,BLK/V.BLUE [AB]

SCREW

SCREW

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

SEAT-BASE

PLATE-LATCH,SEAT

PLATE-LATCH,SEAT

GROMMET, SEAT BASE

GROMMET, SEAT BASE

HANDLE-SEAT BASE LATCH

HANDLE-SEAT BASE LATCH

SPRING, LATCH, SEAT

SPRING, LATCH, SEAT

Screw

Screw

NUT-6MM X 1 NYLOK-Z

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

BOLT, CARRIAGE

NUT- M8X1.25, FLG, NYLOC-OLIVE D

BRACKET, SEAT SLIDER MOUNTING PLATE

BRACKET, SEAT SLIDER LEVER

SPRING

BOLT, SHOULDER

BOLT, SHOULDER

TUBE, SPACER

SCREW

SCREW

WASHER, SPRING LOCK

WASHER, SPRING LOCK

Washer, Flat

Washer, Flat

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

PAD-SEAT BASE,BLK

LATCH-COVER PLATE,BLK

LATCH-COVER PLATE,BLK
