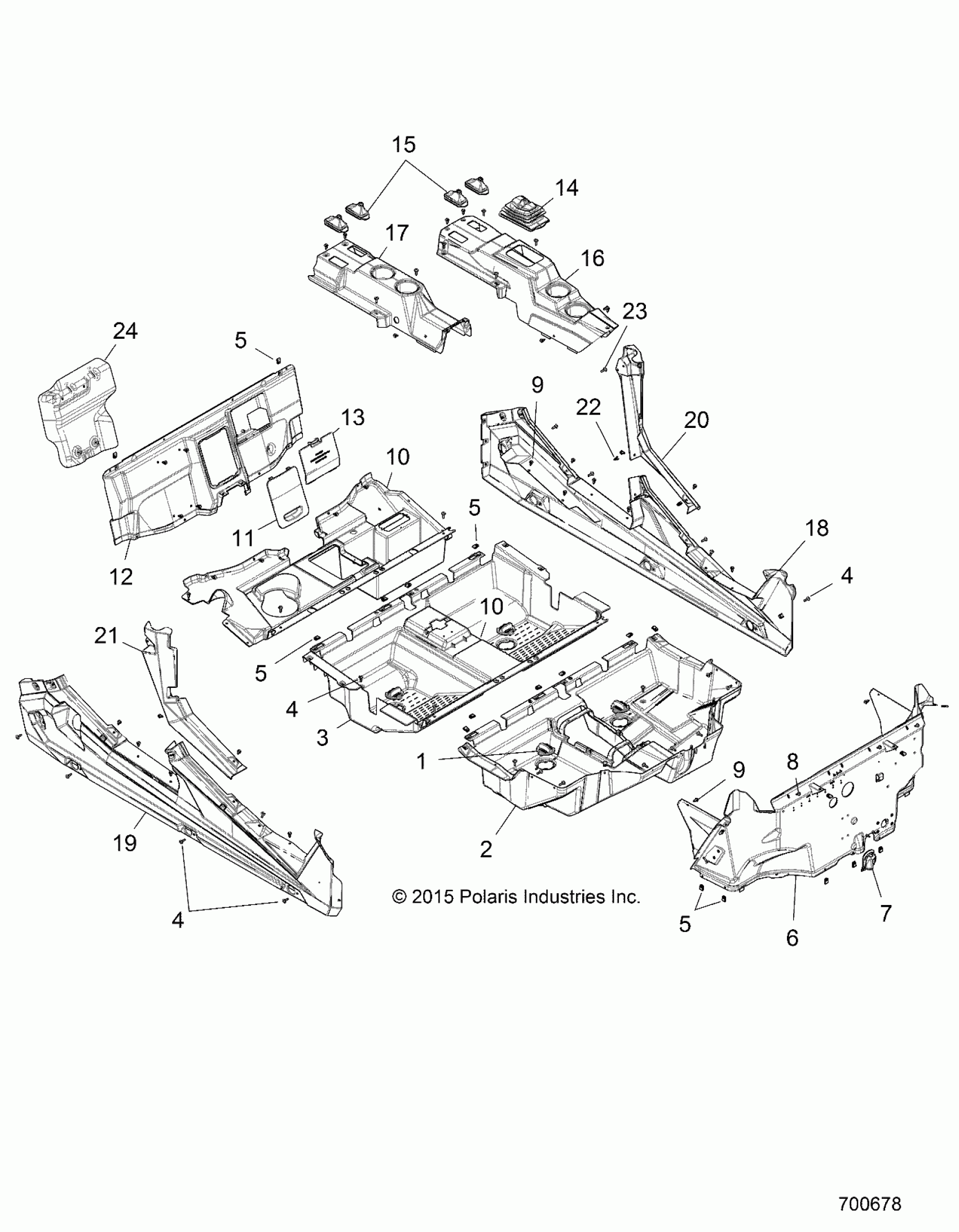

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB BODY, FLOOR and ROCKER PANELS - Z17VFE92AK/AM/AB (700678) Diagram

#

Description
Price

1

PLUG, DRAIN

5414694

Unavailable

2

FLOOR, MAIN, BLACK

2635388-070

Unavailable

3

FLOOR-REAR,MP,BLK

5450891-070

$227.99

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

4

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

5

NUT, U-TYPE

7547674

Unavailable

5

NUT, U-TYPE

7547674

Unavailable

5

NUT, U-TYPE

7547674

Unavailable

5

NUT, U-TYPE

7547674

Unavailable

6

FIREWALL, MAIN, BLACK

2635960-070

$167.99

7

BOOT-STEERING

5415879

$23.99

8

Screw

7518196

$1.49

9

Rivet

7661855

Unavailable

9

Rivet

7661855

Unavailable

10

PANEL, REAR CLOSEOFF, LOWER, BLACK

5439770-070

$215.99

10

PANEL, REAR CLOSEOFF, LOWER, BLACK

5439770-070

$215.99

11

PANEL, ACCESS, ENGINE, BLACK

5452376-070

Unavailable

12

PANEL, REAR CLOSEOFF, UPPER, BLACK

5450270-070

Unavailable

13

COVER, ECU

5450383

Unavailable

14

BOOT, SHIFTER

5415700

$31.99

15

BOOT, SEAT BELT, BLACK

5450254-070

$11.99

16

CONSOLE-FRT,MP,BLK

5450887-070

$119.99

17

CONSOLE-REAR,MP,BLK

5450888-070

$119.99

18

ROCKER, LH, BLACK

5451560-070

$175.99

19

ROCKER, RH, BLACK

5451561-070

$175.99

20

ASM-CVR-B-PLR,CLIP,LH,BLK [INCL. QTY. 2 OF 22]

2635916-070

$47.99

21

ASM-CVR-B-PLR,CLIP,RH,BLK [INCL. QTY. 2 OF 22]

2635917-070

$51.99

22

CLIP-DASH,TRIM,METAL

7519806

Unavailable

23

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

24

SHIELD-REAR CLOSEOFF

5814283

$43.99
