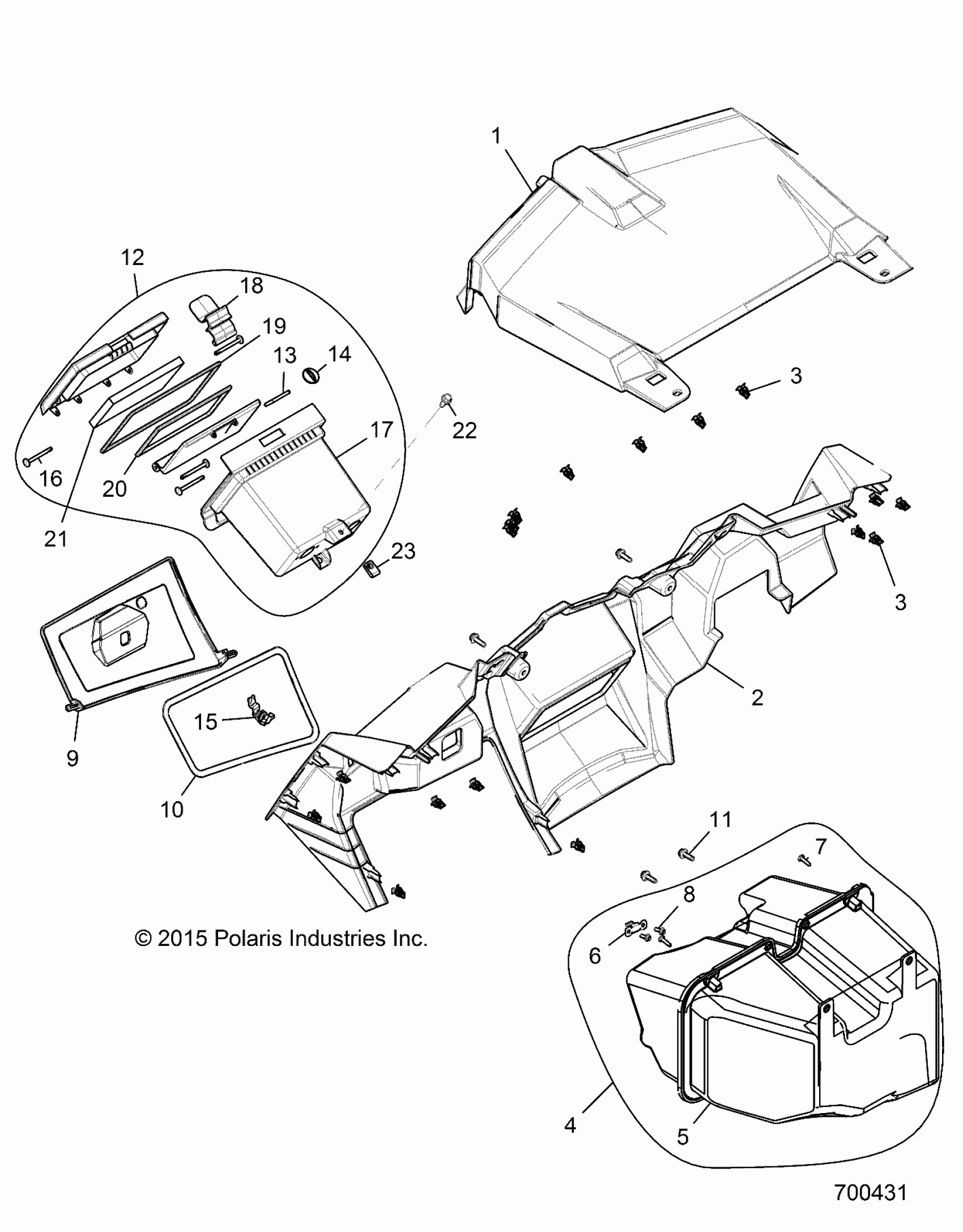

Polaris RZR XP4 TURBO (R06) - Z17VFE92AK/AM/AB BODY, DASH AND GLOVEBOX - Z17VFE92AK/AM/AB (700431) Diagram

ASM-UPPER IP,MFD,BLK [INCL. QTY 7 OF REF. 3]

2635333-070

Unavailable

ASM-LWR IP,WARNDECAL,MP,BLK [INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]

2636417-070

$629.35

CLIP-DASH,TRIM,METAL

7519806

Unavailable

CLIP-DASH,TRIM,METAL

7519806

Unavailable

ASM., GLOVE BOX [INCL. 5-8]

2635460

$106.49

GLOVEBOX, BLACK

5439796-070

$106.49

BRACKET, GLOVEBOX LATCH

5259660

$5.65

SCREW

7512026

$1.19

SCREW

7518641

$3.17

DOOR, GLOVEBOX, TPO, BLACK

5451897-070

$56.65

SEAL, GLOVEBOX

5415208

$14.51

SCREW

7519342

$1.99

ASM., DOUBLE DIN [INCL. 13,14,16-21]

2635161

$145.70

PIN, HINGE [USED W/2635161]

5451236

$8.99

PLUG-COMPARTMENT [USED W/2635161]

5412981

$3.79

LATCH-1/4 TURN,CAM

7081425

$7.60

PIN-HINGE,GLOVEBOX [USED W/2635161]

5439091

$3.97

PANEL, DOUBLE DIN, BLACK [USED W/2635161]

5439789-070

$32.37

LATCH, LID, DIN [USED W/2635161]

5450654

$8.89

SEAL, DIN, OUTER [USED W/2635161]

5522021

$29.03

SEAL, DIN, INNER [USED W/2635161]

5522022

$24.27

FOAM, DOUBLE DIN [USED W/2635161]

5814055

$54.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

NUT, U-TYPE

7547674

$1.19
