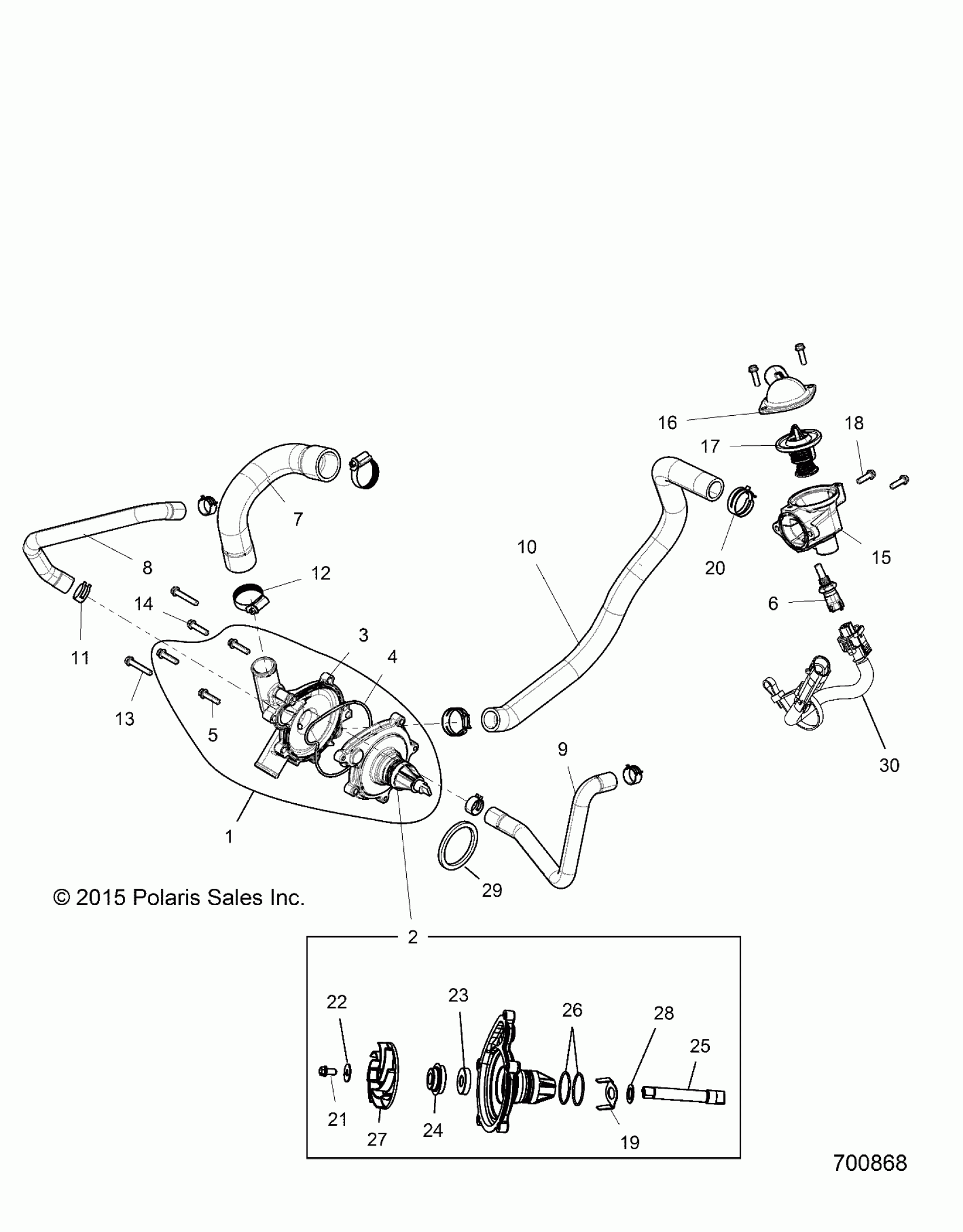

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL ENGINE, WATERPUMP AND BYPASS - Z19VFE99AD/BD/AK/BK/AN/BN/LD/K99AD/BD/AK/BK/AN/BN/LK/LE/L99AC/BC/M99AL (700868) Diagram

#

Description
Price

1

ASM-WATERPUMP

1205014

$232.74

2

ASM, WATER PUMP HOUSING [INCL. 19,21-28]

----

Unavailable

3

ASM, WATERPUMP COVER

----

Unavailable

4

GASKET, WATERPUMP COVER

----

Unavailable

5

SCREW

----

Unavailable

6

SENSOR-THERMISTER

4010644

$91.97

7

HOSE-WATERPUMP,OUT

5416305

$64.75

8

HOSE-OIL COOLER OUT

5416752

$32.37

9

HOSE-OIL COOLER,IN

5416307

$15.37

10

HOSE-BYPASS

5416629

$40.46

11

CLAMP, HOSE, SPRING

7081026

$7.94

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

13

SCREW

7519280

$4.76

14

SCREW

7519297

$3.97

15

HOUSING, THERMOSTAT

5138282

$27.78

16

COVER, THERMOSTAT, CAST

5632421

$40.46

17

THERMOSTAT

7052600

$52.24

18

SCREW

7518576

$3.17

19

WASHER, ANTI-ROTATION

----

Unavailable

20

CLAMP, SPRINGBAND

7081970

$5.56

21

SCREW

----

Unavailable

22

WASHER, IMPELLER

----

Unavailable

23

SEAL, WATERPUMP SHAFT, OIL

----

Unavailable

24

SEAL, WATERPUMP SHAFT, WATER

----

Unavailable

25

SHAFT, WATERPUMP

----

Unavailable

26

O-RING

----

Unavailable

27

IMPELLER, WATERPUMP

----

Unavailable

28

WASHER, WATERPUMP, RETAINER

----

Unavailable

29

FILTER-WP

5814207

$2.38

30

WIRE-THERMISTER LEAD

4014319

$94.99
