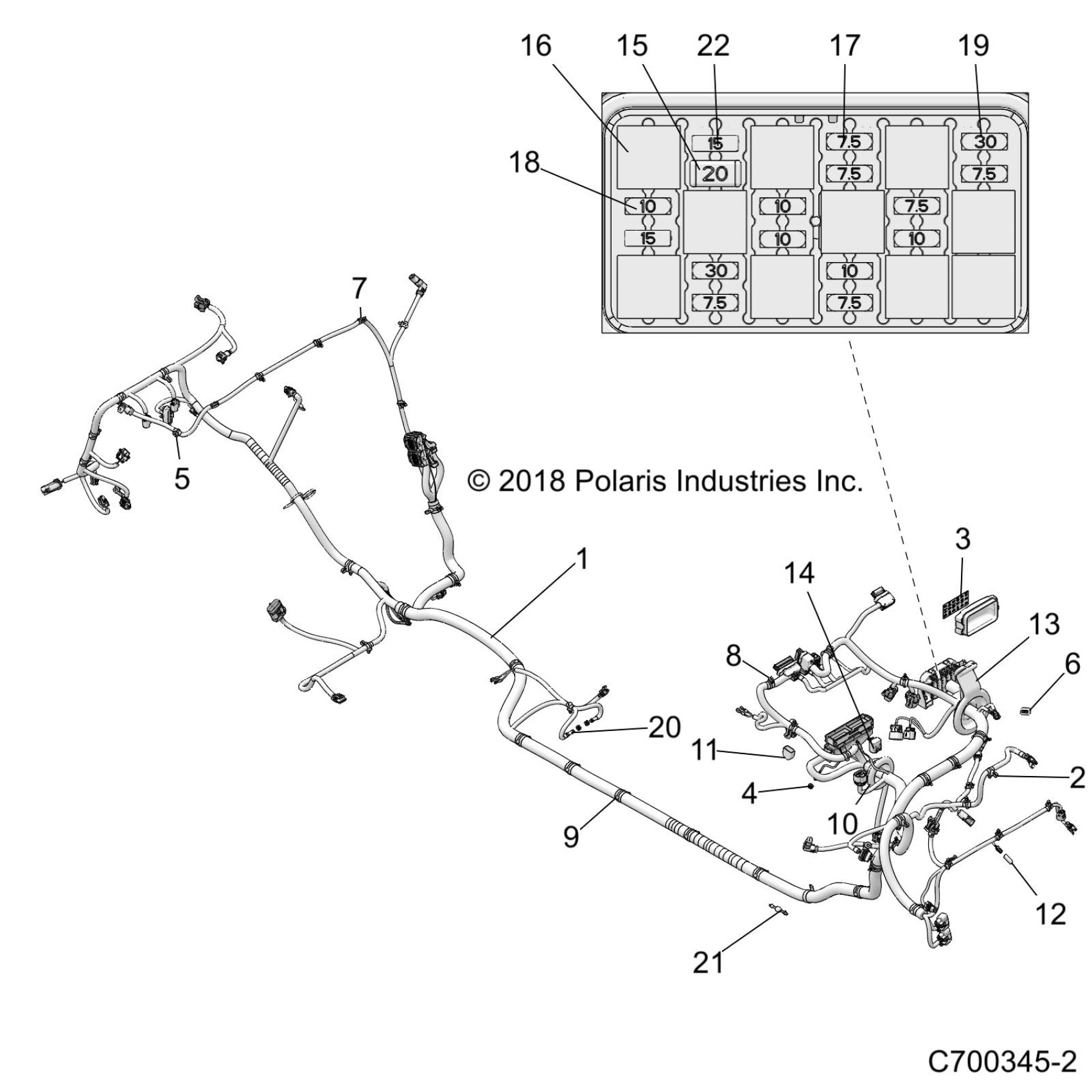

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL ELECTRICAL, WIRE HARNESS - Z19VFL99AC/BC (C700345-2) Diagram

HARNESS-CHASSIS,RZR,64,LV,MP [INCL. ALL]

2414466

$1,583.99

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

LABEL-FUSE BOX

7188874

Unavailable

CLIP-ROUTING,DIN BOX

7082020

$5.59

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

DIODE-6 AMP

2410000

$35.99

CLIP-EDGE,HARNESS

7081890

$10.39

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

GROMMET-65MM,BLK

5813954

$7.19

CAP-VINYL,500X1000,BLACK

5438233

$6.68

CAP-VINYL,125X375,BLACK

5438230

$5.59

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-7.5 MINI BLADE (BROWN)

4011068

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MAIN,30 AMP

2434015

$7.19

LED-PANEL MNT,12V,BLUE

2413217

$51.99

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

FUSE-MINI BLADE,15 AMP

2410280

Unavailable
