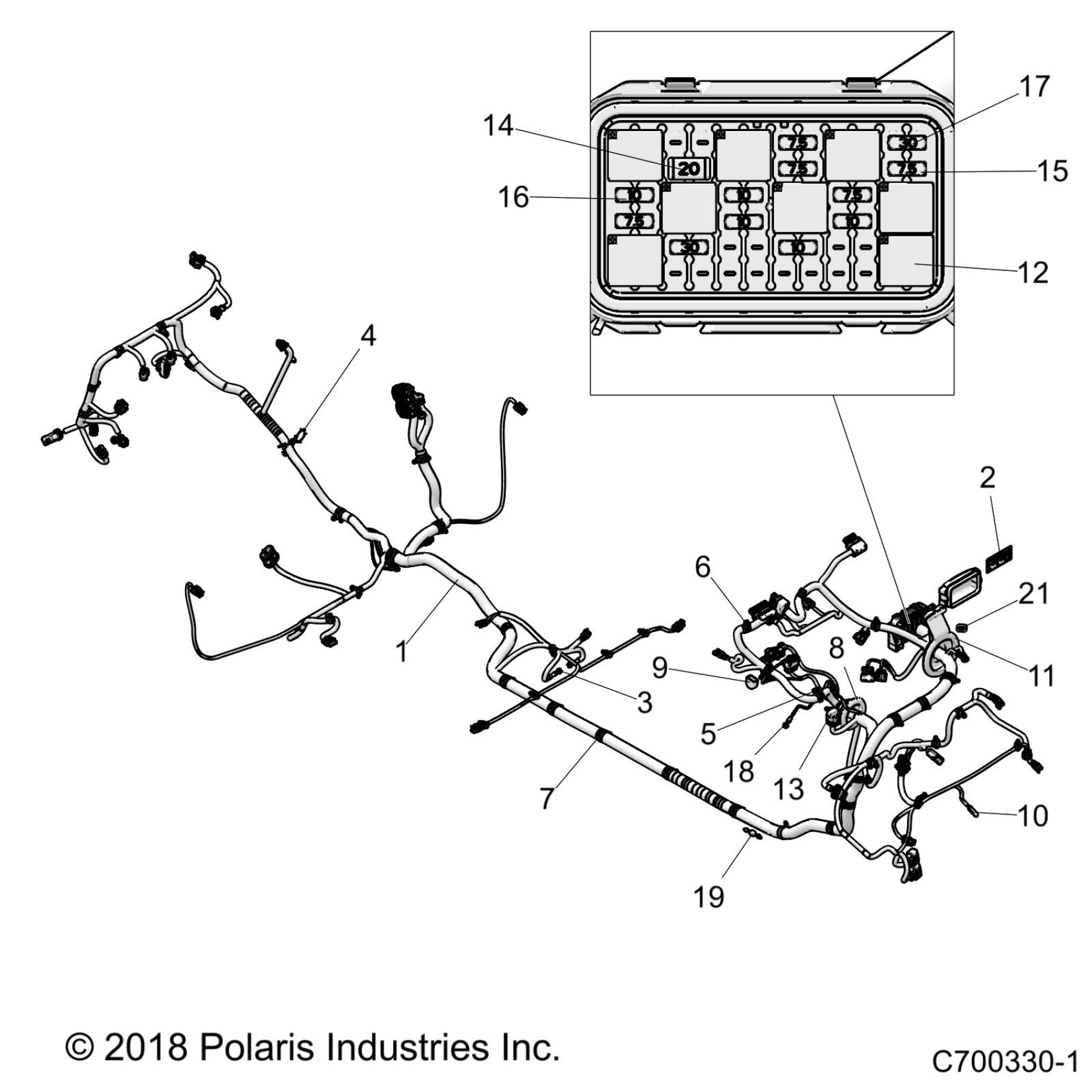

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL ELECTRICAL, WIRE HARNESS - Z19VFK99LK/LE (C700330-1) Diagram

HARNESS-CHASSIS,RZR,64,CR,MP [INCL. ALL]

2414465

$1,517.99

LABEL - FUSE BOX

7189847

Unavailable

CLIP - ROUTING, DIN BOX

7082020

$5.59

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP EDGE, HARNESS

7081890

$10.39

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

GROMMET - 65 MM, BLK

5813954

$7.19

CAP - VINYL, 500X1000, BLACK

5438233

$6.68

CAP - VINYL, 125X375, BLACK

5438230

$5.59

GROMMET - DASH FUSE CTR, RZR

5416469

$10.39

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

FUSE - 7.5 MINI BLADE

4011068

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MAIN,30 AMP

2434015

$7.19

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99
