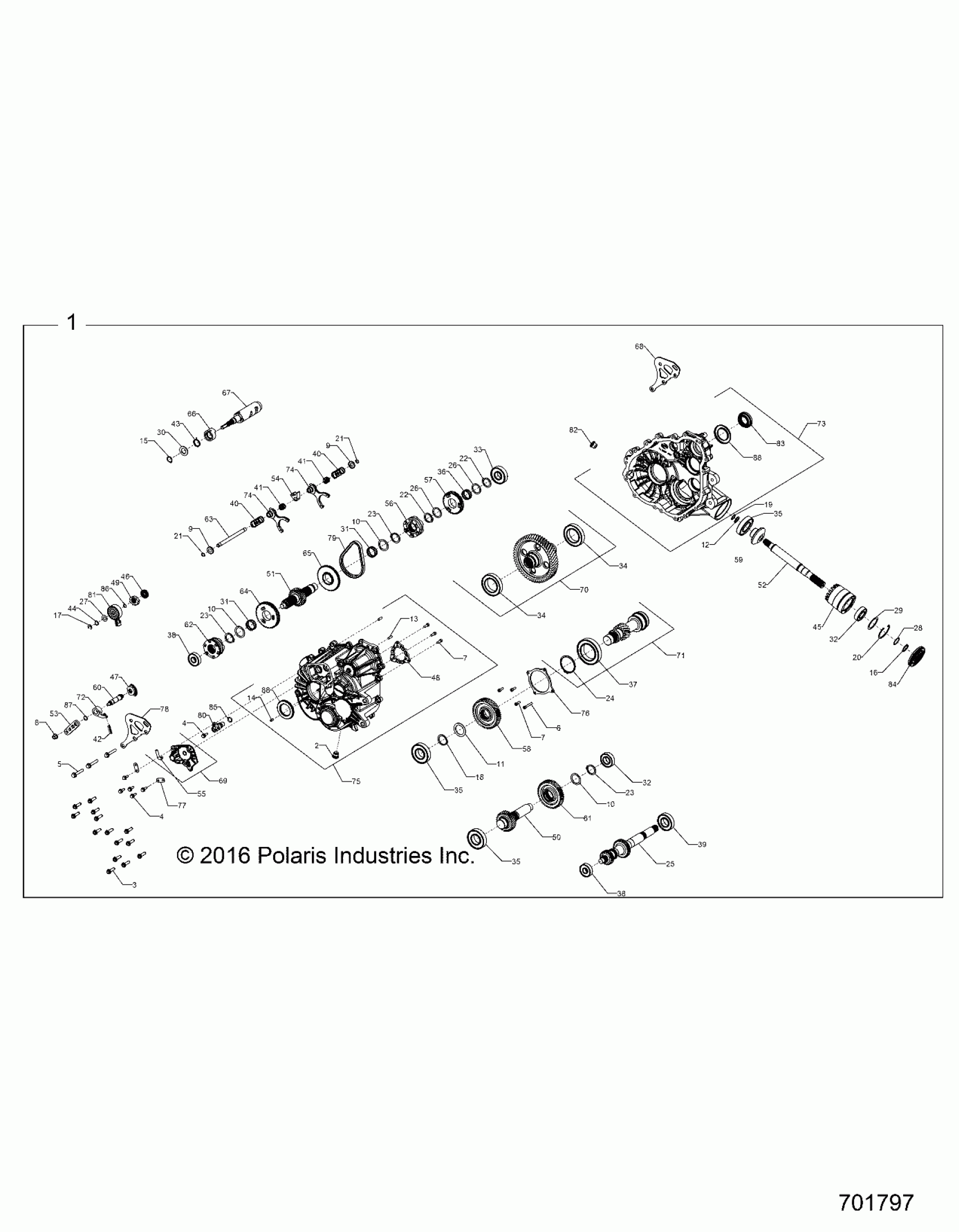

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z19VFE99AD/BD/AK/BK/AN/BN/LD/K99AD/BD/AK/BK/AN/BN/LK/L99AC/BC (701797) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE

1333695

$4,899.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

5

SCREW, HEX FLANGE M8 X 50

3235207

$10.32

6

SCREW, SOCKET HEAD, CAP, M6 X 1 X 40

3235208

$11.11

7

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

3235332

$3.97

8

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER, 35.6 X 50 X 1.5

3235212

$13.49

12

WASHER, 17.3 X 25 X 1.5

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

17

RING, SNAP

3233834

$10.32

18

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

19

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.17

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING, RETAINING,

3234205

$11.11

22

RING, RETAINING,

3234205

$11.11

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

24

RING, RETAINING, VSH-237

3235216

$10.32

25

SHAFT, INPUT, 42T/20T/31T

3235838

$199.99

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

28

SHIM, 1.18 OD X 0.995 ID

3234272

$36.41

29

SHIM, 2.04 OD X 1.63 ID

3234273

$13.75

30

SPACER, 19.4 X 34 X 2

3235883

$28.56

31

BEARING, NEEDLE

3233014

$43.65

31

BEARING, NEEDLE

3233014

$43.65

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

33

BEARING

3233020

$47.62

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING, NEEDLE, CAGE ASSY

3233384

$31.75

37

BEARING, BALL 6012 C3, 60 X 95 X 18

3235218

$59.52

38

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

38

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

39

BEARING, BALL, 6206RSH2 STD 30X62X16

3235496

$37.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

41

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

41

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

42

SPRING, COMPRESSION

3234578

$13.75

43

SPRING, TORSION

3235885

$20.22

44

SPRING, WASHER,

3235327

$9.52

45

TUBE, SNORKEL MACH,

3234278

$101.17

46

GEAR, SECTOR 16T,

3233839

$36.41

47

GEAR-SECTOR,31T

3233832

$36.41

48

PLATE, PARK, 12-FACE

3235456

$40.46

49

STAR, DETENT,

3235982

$36.41

50

SHAFT, IDLER 29T,

3235223

$128.24

51

SHAFT-REVERSE,27T(285878)

3235380

$246.89

52

SHAFT, FRONT OUTPUT,

3235394

$133.56

53

BELLCRANK, 92 DEGREE

3235227

$28.32

54

COLLAR-SHIFT

3234073

$31.75

55

TUBE, VENT, 90 -1/4" HOSE

3234230

$10.51

56

ENGAGEMENT DOG,, 6-FACE

3235233

$129.51

57

GEAR, 53T,

3235234

$99.74

58

GEAR, 46T STAGE 3,

3235236

$128.24

59

GEAR, 13T SNORKEL,

3235237

$156.74

60

SHAFT-SHIFT(352973)

3235238

$42.74

61

GEAR, 46T STAGE 2

3235381

$156.74

62

SHIFT DOG, PARK,

3235457

$145.70

63

RAIL, SHIFT SHAFT,

3235542

$28.32

64

GEAR, LOW 61T

3235561

$99.74

65

SPROCKET 48T, 6-FACE

3235755

$80.94

66

PARK CAM,

3235983

$183.95

67

DRUM, SHIFT MACH,

3235984

$279.27

68

WELDMENT,, REAR MOUNT BRACKET

3235558

$53.24

69

SUBASSEMBLY, SECTOR COVER

3235713

$135.54

70

SUBASSEMBLY, OUTPUT

3235335

$408.49

71

SUBASM.,SHAFT

3235336

$446.49

72

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

73

SUBASSEMBLY, LH CASE

3235514

$669.99

74

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

74

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

75

SUBASSEMBLY, RH COVER

3235996

$599.99

76

COVER-BEARING,CNTR DR.

3235241

$48.56

77

BRACKET, WIRE HARNESS

3235350

$8.89

78

BRACKET, REAR MOUNT

3235559

$40.46

79

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

80

SENSOR-SPEED

4082135

$109.27

81

SWITCH, ROTARY, 2 PIN RESISTIVE

7662299

$113.32

82

PLUG, M18 X 1.5

3234755

$27.78

83

SEAL, TRIPLE LIP, VITON HELIX 30 X 47

3235495

$47.49

84

SEAL, TRIPLE LIP, VITON 25 X 80 X 10

3235658

$66.49

85

O-RING, -016 VITON

3236279

$5.65

86

O-RING, -12 VITON

3233836

$6.87

87

O-RING, -14 VITON

3233828

$6.87

88

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37

88

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37
