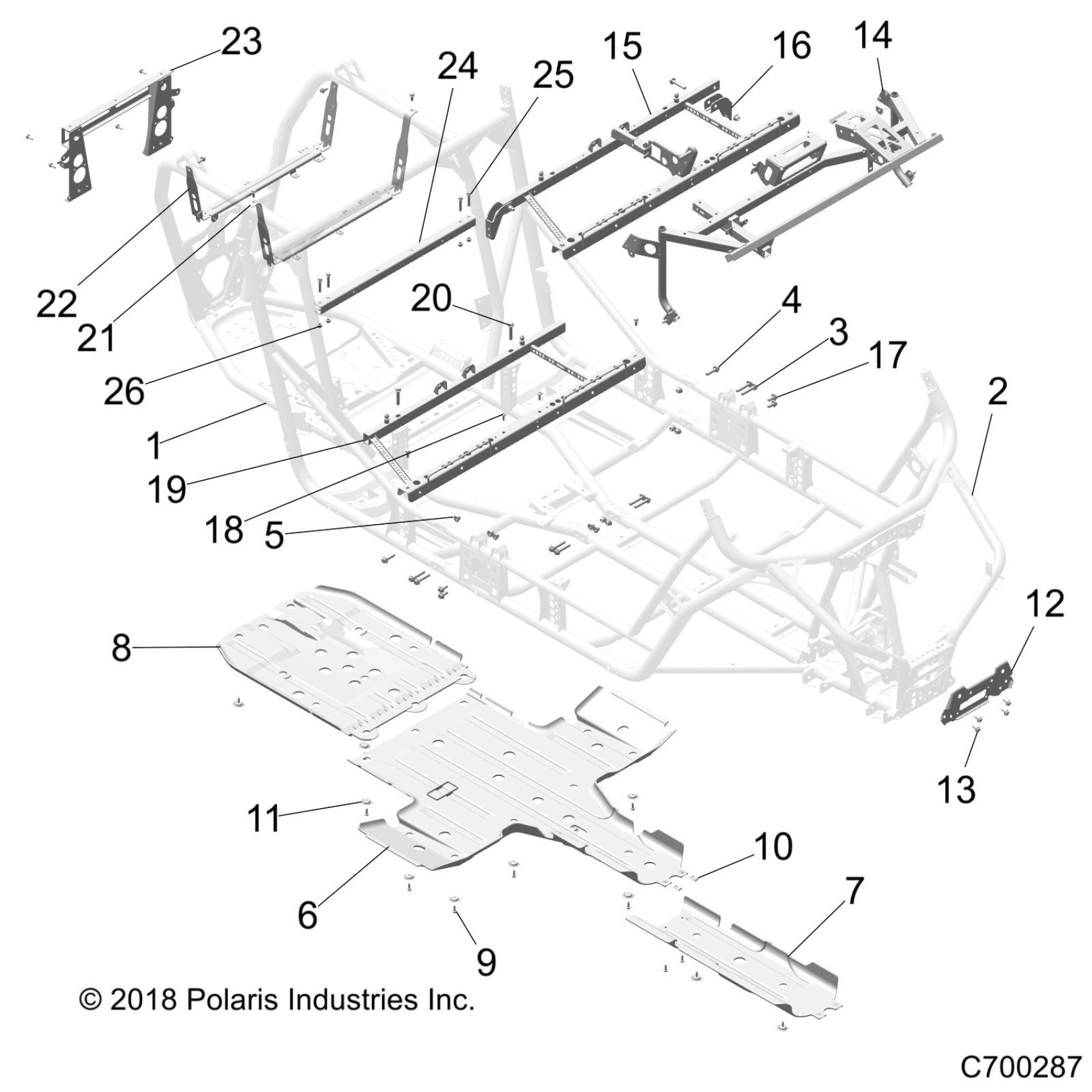

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL CHASSIS, MAIN FRAME AND SKID PLATES - Z19VFE99AD/BD/AK/BK/AN/BN/LD/K99AD/BD/AK/BK/AN/BN/LK/LE/L99AC/BC/M99AL (C700287) Diagram

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

WELD-MAINFRAME,FRT,MP,SWY,BLK

1024370-458

$2,415.59

SCREW

7519285

$2.39

SCREW

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

PLATE, SKID, BLACK [TO 2/25/19]

5450239-070

Unavailable

PLATE-SKID,BLK [FROM 2/25/19]

5456432-070

$239.99

PLATE, SKID, BLACK

5450556-070

$147.99

PLATE, SKID, REAR, BLACK [TO 4/1/19]

5452063-070

Unavailable

PLATE-SKID,REAR,BLK [FROM 4/1/19]

5456435-070

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

NUT, U-TYPE

7547674

$1.49

WASHER-SKID PLATE

7556065

$4.79

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

BOLT

7518555

Unavailable

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

BASE, SEAT, MP, BLACK

1020572-329

$183.99

BRACKET, SEAT SUPPORT, FRONT, MP, BLACK

5258097-329

$51.99

SCREW

7518934

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

BASE, SEAT, REAR, BLACK

1019777-329

$223.99

BOLT

7518474

$4.79

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

BRKT-BOX SUPPORT REAR,ECOAT [K99LK]

5264553-329

$39.99

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

SCREW

7516732

$1.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
