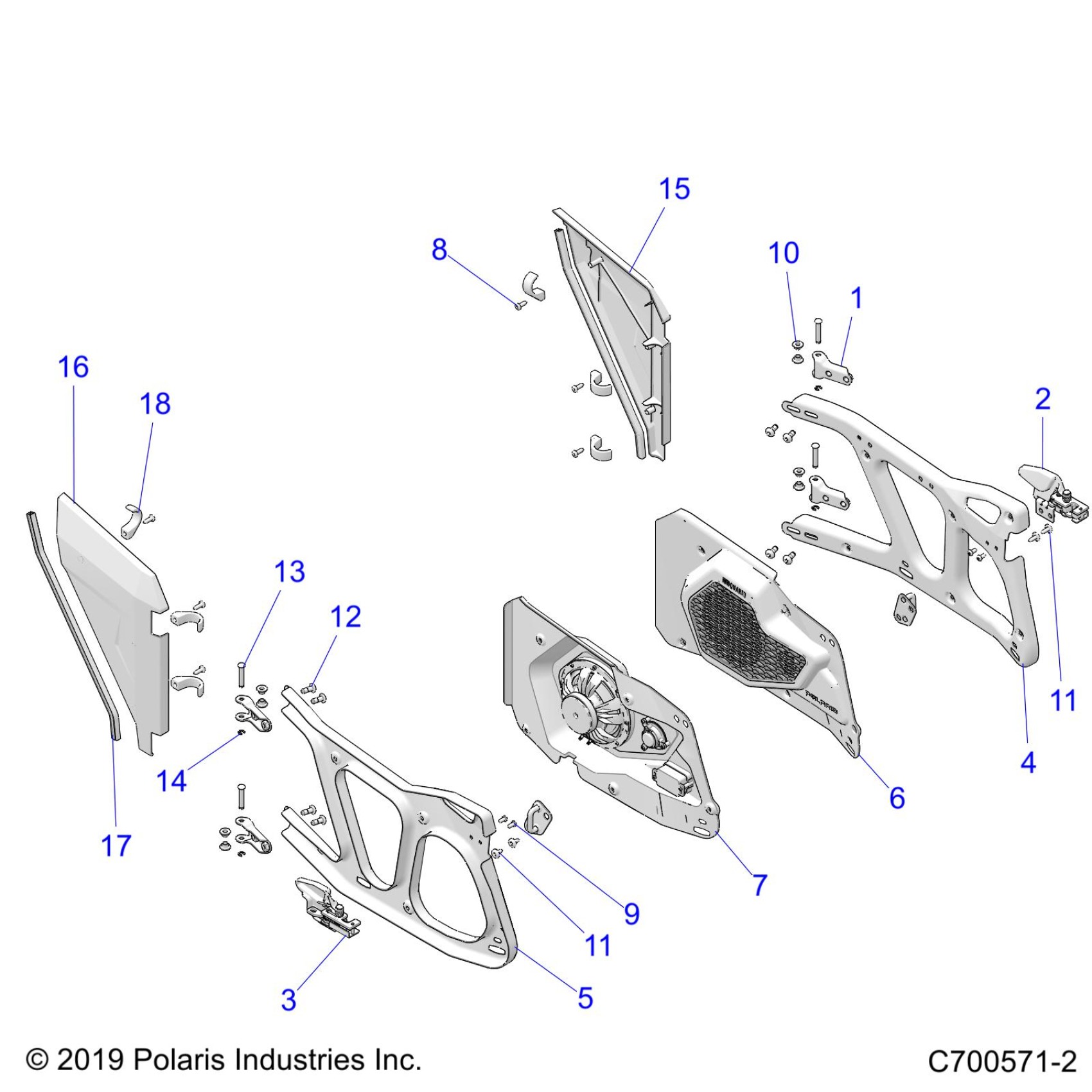

Polaris RZR XP4 1000 (R04) - Z19VF_99AD/BD/AK/BK/AN/BN/LD/LK/LE/AC/BC/AL BODY, DOORS, REAR - Z19VFK99LE (C700571-2) Diagram

#

Description
Price

1

DOOR, HINGE

5258008

Unavailable

2

ASM-LATCH,DOOR,LH

2637180

Unavailable

3

ASM-LATCH,DOOR,RH

2637181

Unavailable

4

FRAME, DOOR, REAR, LH, MATTE BLACK

5260413-458

$147.99

5

FRAME, DOOR, REAR, RH, MATTE BLACK

5260414-458

$159.99

6

ASM-SPEAKER,DOOR,PANEL,LH,REAR

2636792

$223.99

7

ASM-SPEAKER,DOOR,PANEL,RH,REAR

2636793

$223.99

8

SCREW

7519045

Unavailable

9

SCREW

7519063

$3.99

10

BUSHING, DOOR PIVOT

5450592

$2.39

11

SCREW

7518936

$3.99

11

SCREW

7518936

$3.99

12

SCREW

7519997

$3.99

13

PIN, DOOR HINGE

7662138

$4.79

14

E-CLIP,M6, DIN 6799

7710466

$3.19

15

ASM-BOLSTER,LH [INCL 17]

2635693

$79.99

16

ASM-BOLSTER,RH [INCL 17]

2635694

$79.99

17

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

18

BRKT-J MOUNT,INJ,RZN

5451472

$15.99
