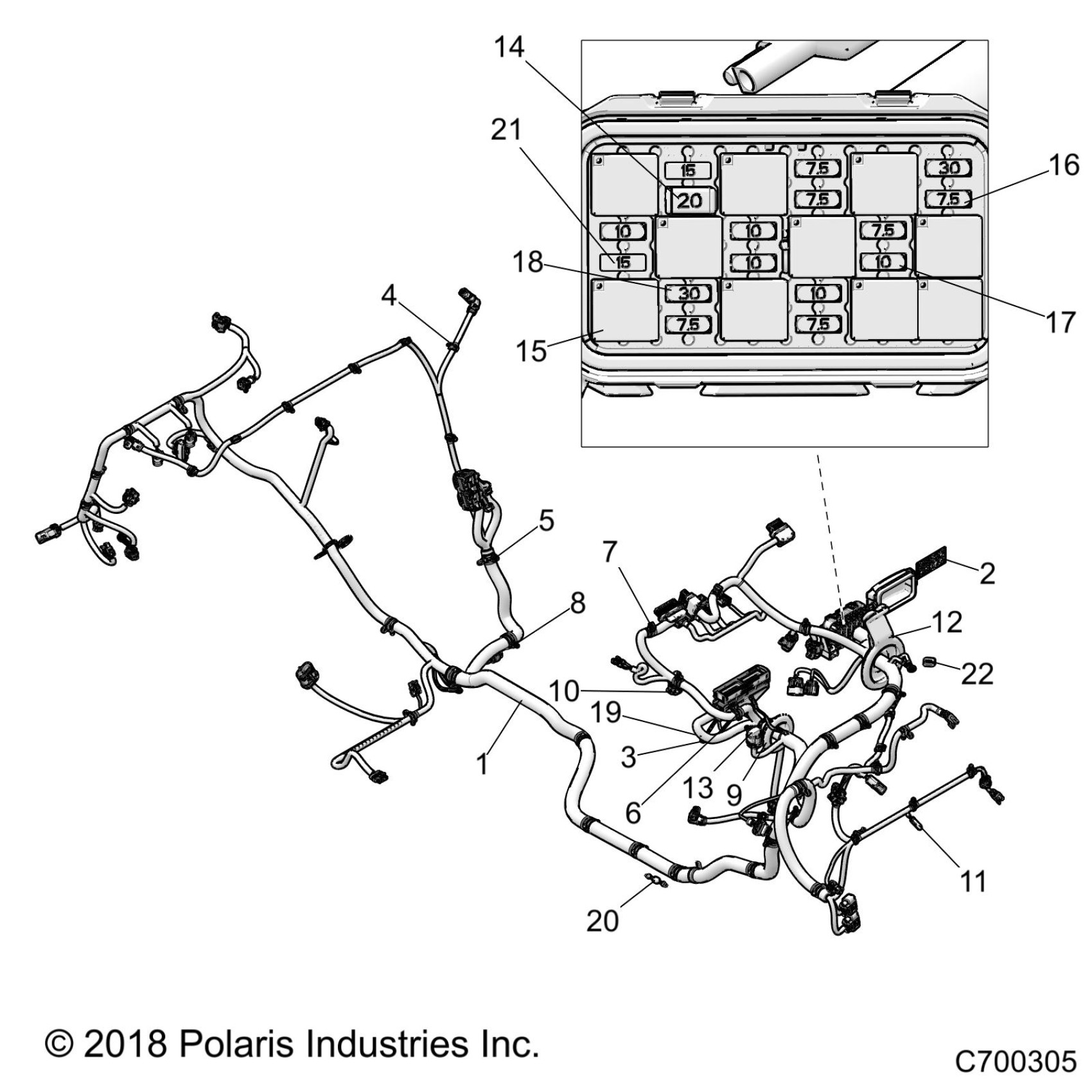

Polaris RZR XP1000 - Z19VD_99AD/BD/LD/AK/BK/AN/BN/AC/BC/AL ELECTRICAL, WIRE HARNESS - Z19VDL99AC/BC (C700305) Diagram

#

Description
Price

1

HARNESS-CHASSIS,EPS,RZR,64,LV [INCL. ALL]

2414464

$1,809.99

2

LABEL-FUSE BOX

7188874

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.56

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

5

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

6

CLIP-EDGE,HARNESS

7081890

$10.32

7

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

GROMMET-65MM,BLK

5813954

$8.99

10

CAP-VINYL,500X1000,BLACK

5438233

$7.99

11

CAP-VINYL,125X375,BLACK

5438230

$5.65

12

GROMMET-DASH FUSE CTR,RZR

5416469

$12.37

13

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

14

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

15

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

16

FUSE-7.5 MINI BLADE (BROWN)

4011068

$11.32

17

FUSE-IGNITION,10 AMP

2434016

$5.65

18

FUSE-MAIN,30 AMP

2434015

$8.87

19

LED-PANEL MNT,12V,BLUE

2413217

$52.60

20

DIODE-6AMP,1/4,3/16 TERM

2411035

$56.65

21

FUSE-MINI BLADE,15 AMP

2410280

$8.08

22

DIODE-6 AMP

2410000

$40.46
