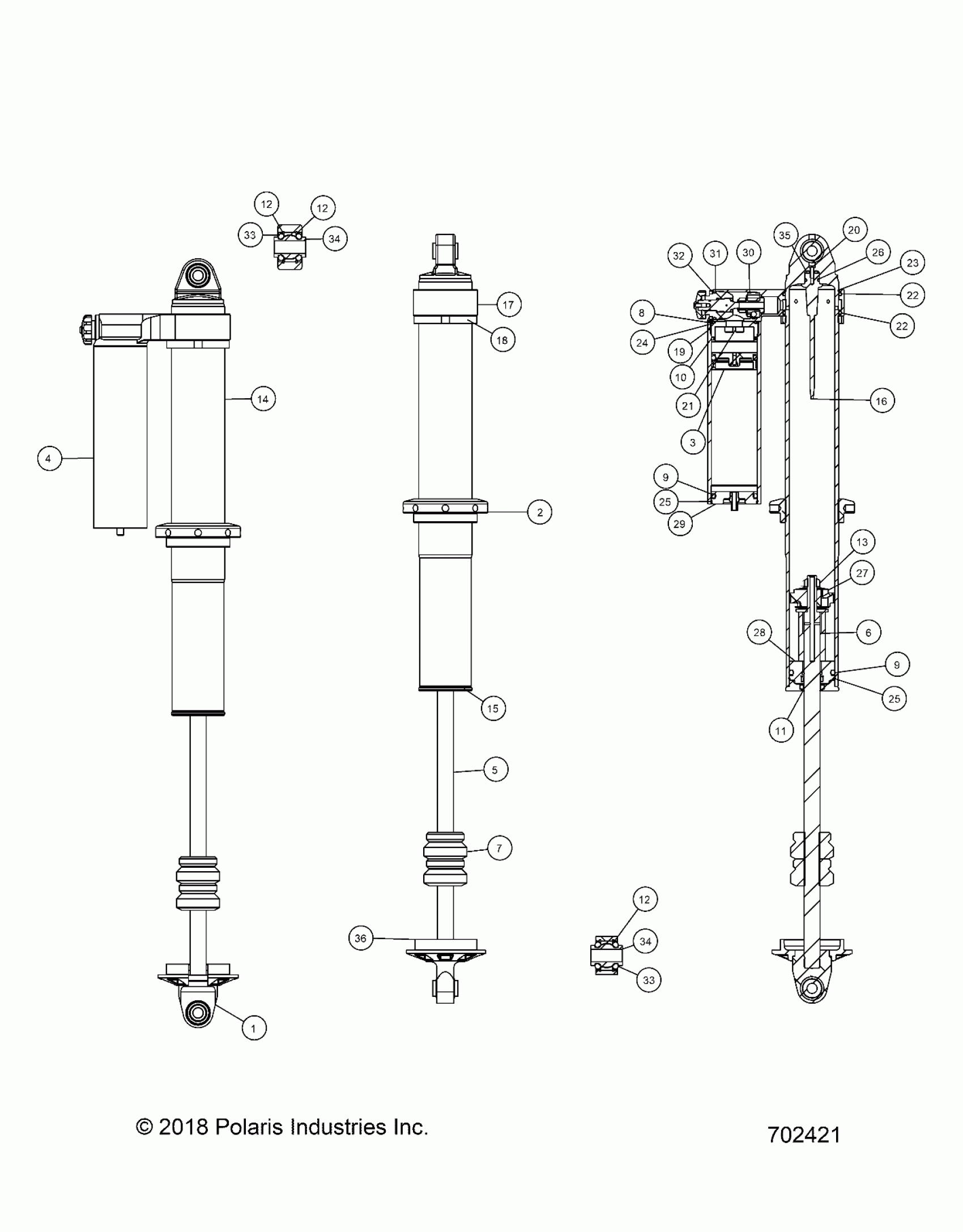

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK SUSPENSION, REAR SHOCK INTERNALS - Z20NAR99AZ/BZ (702421) Diagram

#

Description
Price

-

SHOCK-REAR [INCL ALL]

7044902

$899.99

1

9/16 HEIM SHAFTLOOP (Clear)

1800555

$294.99

2

2.5IN SPRING NUT (CLEAR)

1800836

$109.99

3

RES, PISTON 2.5IN ASM

1800752

$174.27

4

2.5IN 8.5L PB RES CAN WR (HARD CLEAR)

1800837

$209.99

5

3/4in SS CHROME NEEDLE SHAFT 18.295L

1800620

$285.62

6

SPACER 2.287L

1800610

$74.99

7

1.25 BUMP STOP LG

1800201

$80.74

8

O-RING 2-033

1800613

$11.32

9

O-RING 2-327

1800508

$5.65

9

O-RING 2-327

1800508

$5.65

10

O-RING 2-225

1800500

$2.02

11

WIPER 2.5IN SH .75SHAFT

1800506

$54.99

12

RING- RETAIN (SNAP)

1800482

$13.54

12

RING- RETAIN (SNAP)

1800482

$13.54

12

RING- RETAIN (SNAP)

1800482

$13.54

13

7/16 Ny Lock nut

1800638

$4.76

14

BODY, MONOTUBE 2.5 Rear w Needle 21.070L

1800838

$364.99

15

WIPER CAP 2.5 X 0.75 PRESS FIT

1800839

$59.99

16

NEEDLE, 1PC PRESS IN

1800840

$69.99

17

BRIDGE, 2.5 WER ADJUSTER (CLEAR)

1800841

$319.99

18

2.5IN CROSSOVER RING/ JAM NUT

1800842

$44.99

19

2.5 RES MOUNT

1800488

$106.49

20

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.76

21

SCREW, SHCS 43834 X .5"

1800754

$3.17

22

O-RING 2-230

1800497

$5.65

22

O-RING 2-230

1800497

$5.65

23

Retaining Ring 2.5in

1800846

$8.08

24

O-RING, 2-134

1800502

$2.02

25

Retaining Ring 2.5

1800847

$23.81

25

Retaining Ring 2.5

1800847

$23.81

26

O-RING 2-112

1800095

$0.82

27

PISTON (NO BLEED, W/ VALVING)

1800659

$124.43

28

ASM,2.5 SEAL HEAD 0.75 SHAFT PRESS IN

1800845

$134.99

29

ASM. END CAP, 2.5 SCHRAEDER

1800844

$154.90

30

VALVE, CHECK ASSEMBLY

1800848

$74.99

31

O-RING 2-122

1800503

$1.60

32

ASM. SS RETENTION NUT (GOLD)

1800857

$139.99

33

O-RING 2-312

1800810

$3.63

33

O-RING 2-312

1800810

$3.63

34

BEARING HCOM9T-12MM

1800880

$47.62

34

BEARING HCOM9T-12MM

1800880

$47.62

35

O-RING -202

----

Unavailable

36

Spring Retainer

1501211

$44.51
