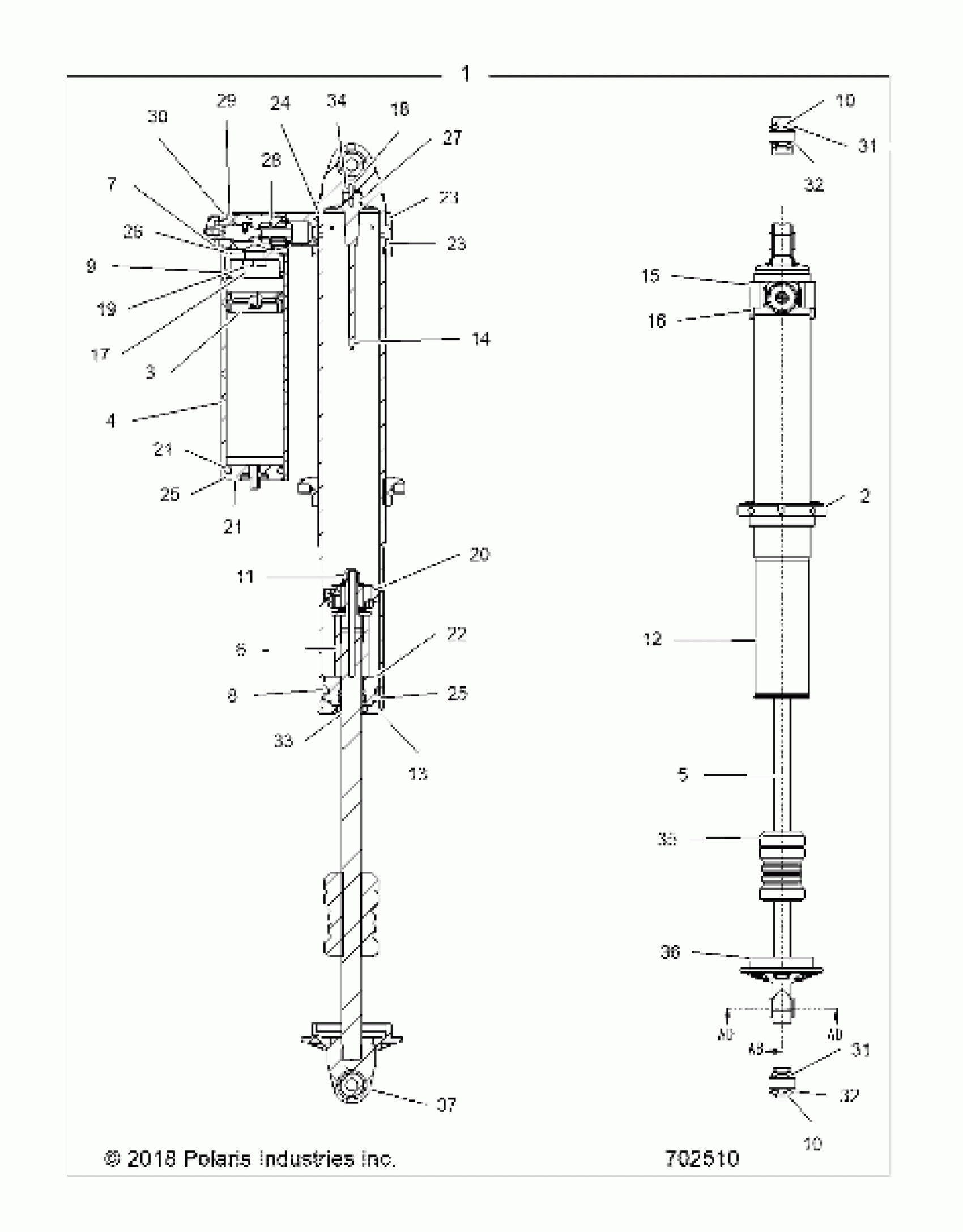

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK SUSPENSION, REAR SHOCK INTERNALS - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK (702510) Diagram

#

Description
Price

1

SHOCK-REAR [INCL ALL]

7045258

$819.27

2

2.5IN SPRING NUT (CLEAR)

1800836

$96.79

3

RES, PISTON 2.5IN ASM

1800752

$164.59

4

2.5IN 8.5L PB RES CAN WR (HARD CLEAR)

1800837

$159.99

5

3/4in SS CHROME NEEDLE SHAFT 18.295L

1800620

$223.99

6

SPACER 2.287L

1800610

$55.99

7

O-RING 2-033

1800613

$10.39

8

O-RING 2-327

1800508

$5.59

9

O-RING 2-225

1800500

$1.99

10

RING-RETAIN (SNAP)

1800482

$10.39

10

RING-RETAIN (SNAP)

1800482

$10.39

11

7/16 Ny Lock nut

1800638

$4.79

12

BODY, MONOTUBE 2.5 Rear w Needle 21.070L

1800838

$288.41

13

WIPER CAP 2.5 X 0.75 PRESS FIT

1800839

$47.99

14

NEEDLE, IPC, PRESS IN

1800840

$51.99

15

BRIDGE, 2.5 WER ADJUSTER (CLEAR)

1800841

$268.39

16

2.5IN CROSSOVER RING/ JAM NUT

1800842

$39.59

17

2.5 RES MOUNT

1800488

$83.99

18

8-32 X .500 LOW HEAD SCREW

1800843

$4.79

19

SCREW, SHCS 1/4-20 X .5"

1800754

$3.19

20

PISTON, ASM NO BLEED (W/ VALVING)

-------

Unavailable

21

ASM. END CAP, 2.5 SCHRAEDER

1800844

$119.99

21

ASM. END CAP, 2.5 SCHRAEDER

1800844

$119.99

22

ASM, 2.5 SEAL HEAD .75 SHAFT PRESS IN

1800845

$107.99

23

O-RING 2-230

1800497

$5.59

23

O-RING 2-230

1800497

$5.59

24

Retaining Ring 2.5in

1800846

$7.19

25

Retaining Ring 2.5

1800847

$23.99

25

Retaining Ring 2.5

1800847

$23.99

26

O-RING 2-134

1800502

$1.99

27

O-RING 2-112

1800095

$1.49

28

VALVE, CHECK ASSEMBLY

1800848

$61.59

29

O-RING 2-122

1800503

$1.59

30

ASM. SS RETENTION NUT (GOLD)

1800857

$111.99

31

O-RING 2-312

1800810

$3.63

31

O-RING 2-312

1800810

$3.63

32

BEARING HCOM9T-12MM

1800880

$47.99

32

BEARING HCOM9T-12MM

1800880

$47.99

33

WIPER 2.5IN SH .75SHAFT

1800506

$39.99

34

O-RING -202

-------

Unavailable

35

BUMP STOP 3.125L

-------

Unavailable

36

Spring Retainer

1501211

$43.99

37

9/16 HEIM SHAFTLOOP (Clear)

1800555

$223.99
