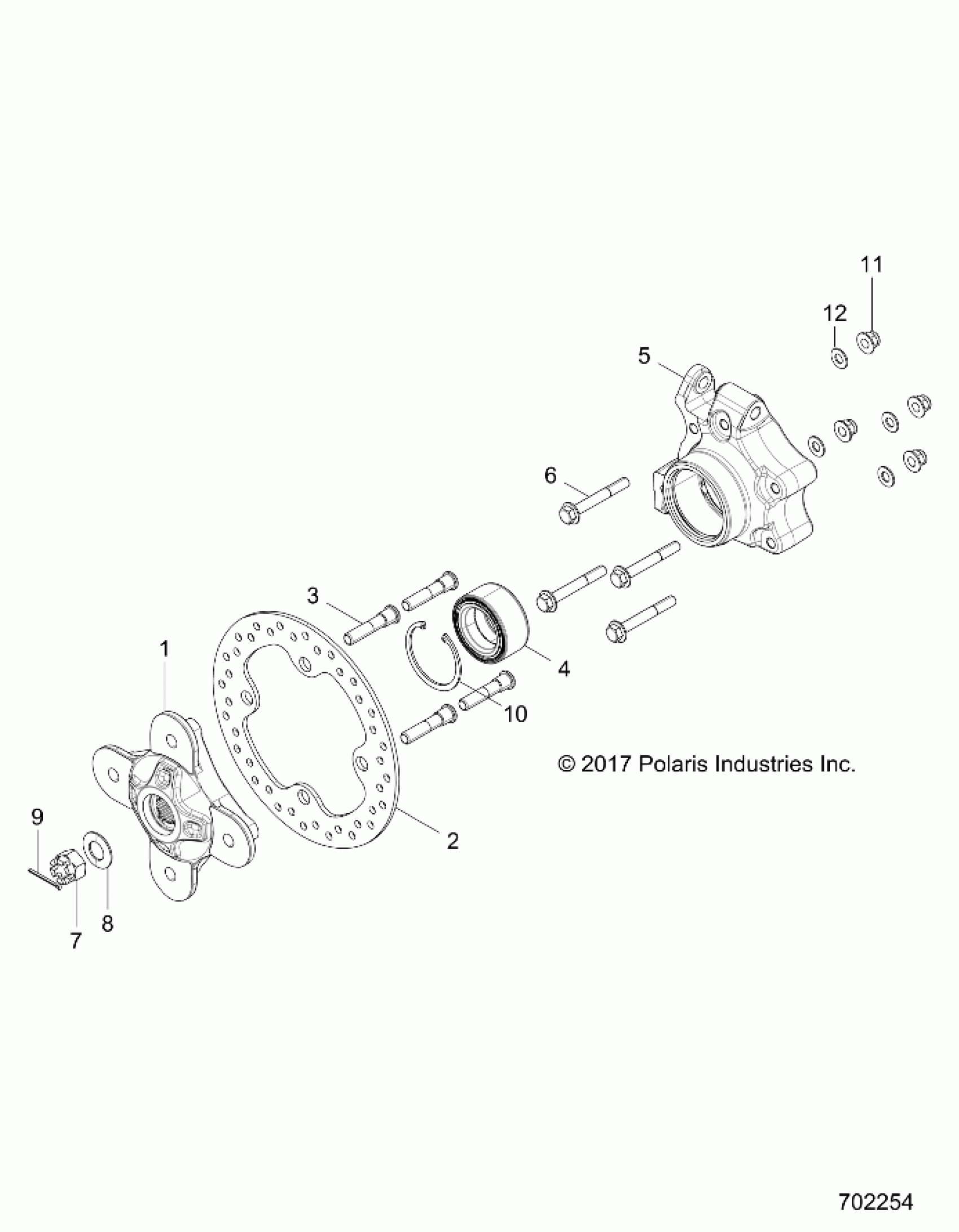

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK SUSPENSION, REAR CARRIER - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK/M99AL/R99AZ/BZ (702254) Diagram

#

Description

Price

1

HUB-WHEEL(MACH),BLK

5141353-067

$99.99

2

DISC-BRAKE

5257196

$63.99

3

STUD-WHEEL,M12-1.5

7519792

$5.59

4

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

5

CARRIER-BEARING,WHEEL,LH(MACH)

5140634

$151.99

5

CARRIER-BEARING,WHEEL,RH(MACH)

5140635

$151.99

6

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

7

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

8

WSHR-AXLE,M18,42X4.5

7557134

$7.99

9

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

10

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
