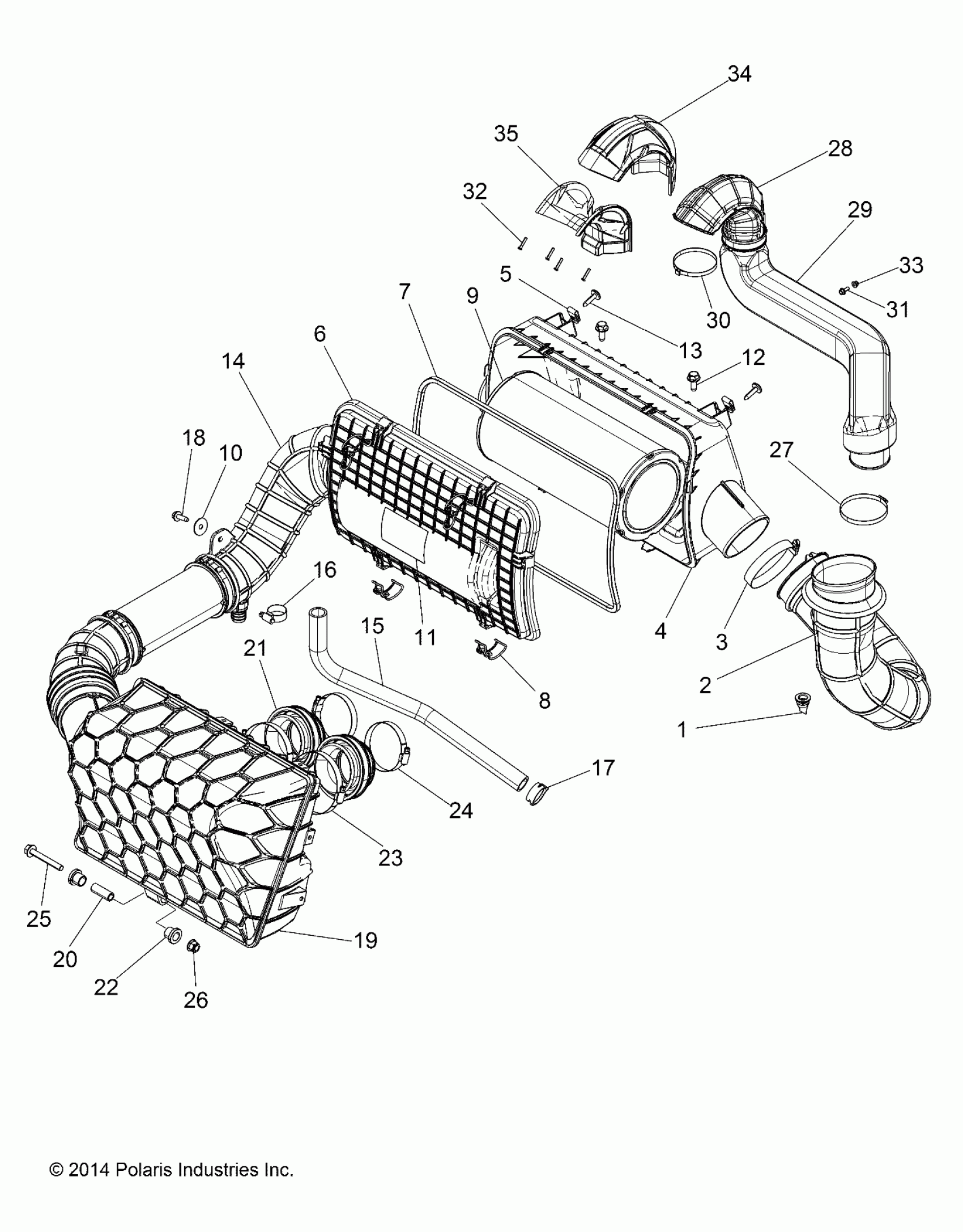

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK ENGINE, AIR INTAKE SYSTEM H.LIFT - Z20NAM99AL (49RGRAIRBOX151000AL) Diagram

Description

Price

PLUG, DRAIN, HC

5139797

$9.59

HOSE, AIRBOX, IN

5414691

$103.99

CLAMP, HOSE

7080907

$11.19

ASM., AIRBOX HOUSING [INCL. 5]

1240747

$87.99

NUT, U-TYPE

7547674

$1.49

ASM., AIRBOX COVER [INCL. 7,8]

1240748

$71.99

SEAL, AIRBOX

5813929

$27.99

CLIP, AIRBOX

7081872

$5.59

ASM-FILTER

1241084

$35.99

WASHER

7556329

$1.49

DECAL-CAUT.AIR BOX

7182652

Unavailable

BOLT

7518555

$2.39

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

ASM., INTAKE DUCT

1240770

$139.99

HOSE, VENT

5414671

$35.99

CLAMP, HOSE, WORM GEAR

7080614

$7.19

CLAMP, SPRINGBAND

7080841

$7.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

INTAKE, ENGINE HOUSING

1240749

$147.99

SHAFT, COMPRESSION LIMITER

5138987

$14.39

BOOT, THROTTLE BODY

5414570

$47.99

BUSHING-MOUNT

5414719

$2.39

CLAMP, WORM DRIVE

7080812

$19.99

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

SCREW

7519298

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLAMP, WORM, DRIVE

7081626

$7.99

HOSE, INLET, HC

5415215

$51.99

DUCT, ENGINE, INTAKE, HC

5451473

$63.99

CLAMP, HOSE

7081996

$23.99

SCREW

7518591

$3.73

SCREW

7520164

$1.59

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

COVER-PLAST,INTAKE HOSE,TOP,LS

5451616-630

$47.99

COVER, PLAST, INTAKE, HOSE, BOTTOM, BLACK

5451617-070

$39.99
