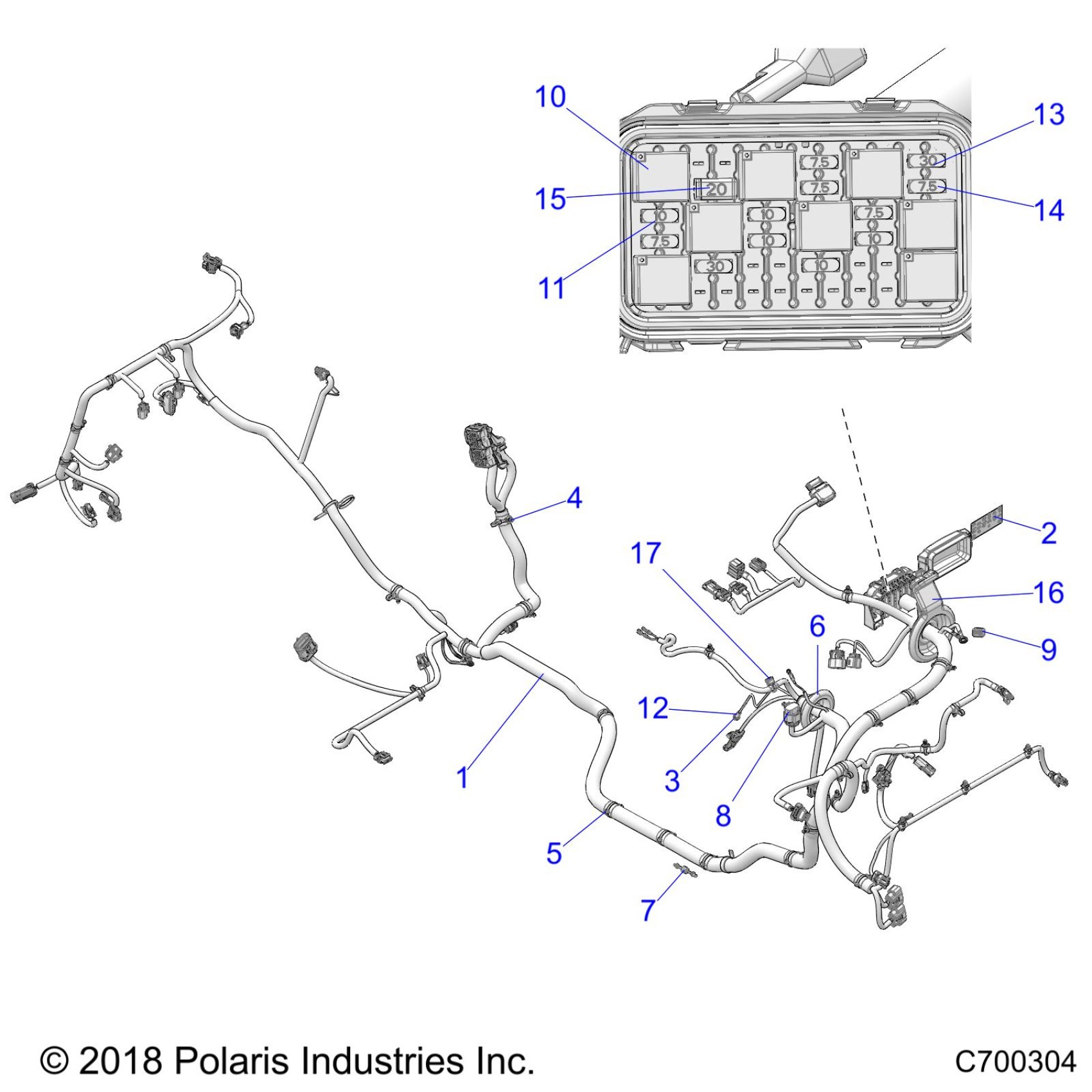

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK ELECTRICAL, WIRE HARNESS - Z20NAE99AC/AL/AN/BC/BL/BN/LL/R99AZ/BZ (C700304) Diagram

Description

Price

HARNESS-CHASSIS,EPS,RZR,64,CA [INCL. ALL]

2414467

$1,394.79

LABEL-FUSE BOX

7188875

Unavailable

CLIP-ROUTING,DIN BOX

7082020

$5.59

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

GROMMET-65MM,BLK

5813954

$7.19

DIODE - 6 AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

DIODE - 6 AMP

2410000

$35.99

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

LED-PANEL MNT,12V,BLUE

2413217

$51.99

FUSE-MAIN,30 AMP

2434015

$7.19

FUSE- 7.5 MINI BLADE

4011068

Unavailable

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

GROMMET, DASH FUSE CTR, RZR

5416469

$10.39

CLIP, EDGE, HARNESS

7081890

$10.39
