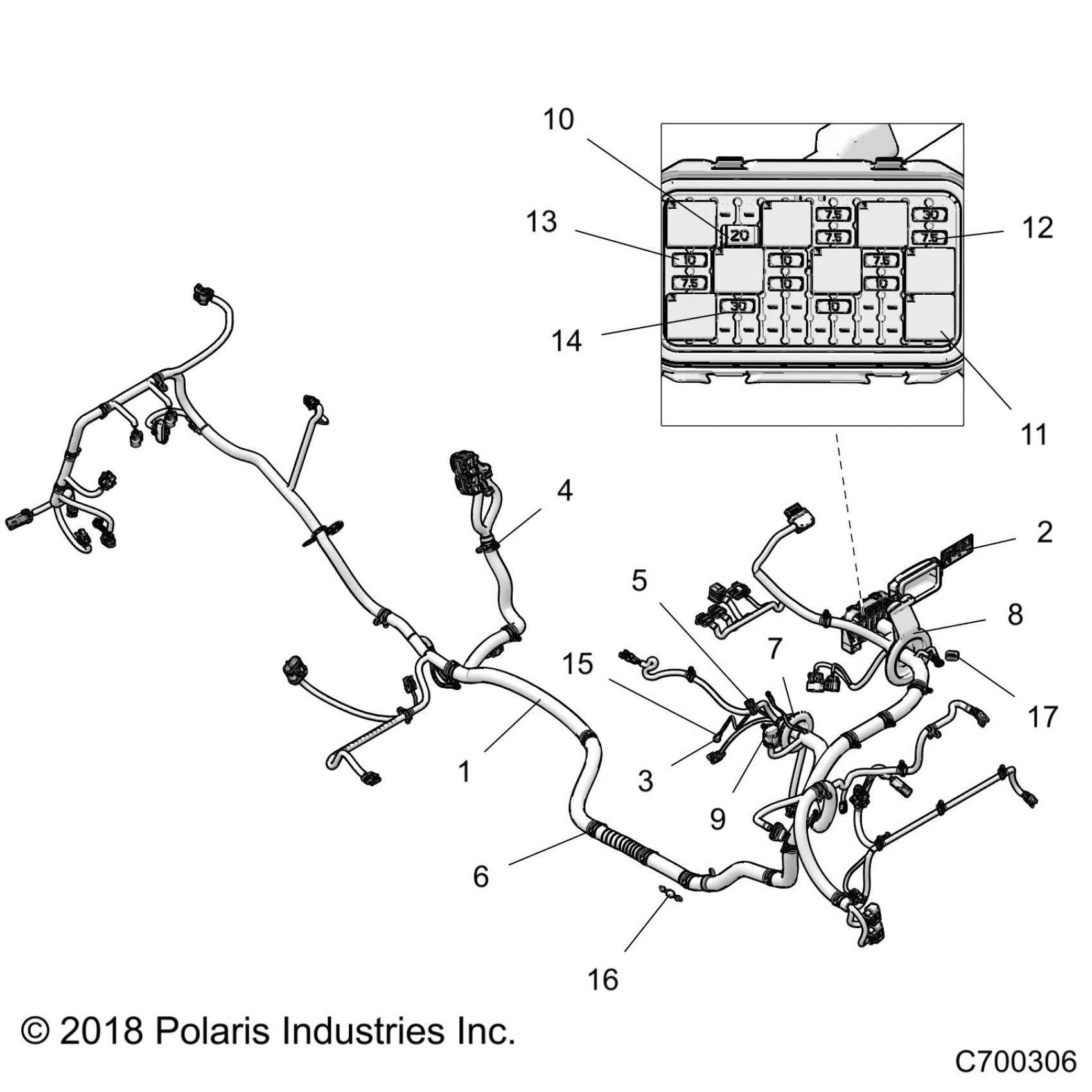

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK ELECTRICAL, WIRE HARNESS H.LIFT - Z20NAM99AL (C700306) Diagram

#

Description
Price

1

HARNESS-CHAS,EPS,RZR,64 [INCL ALL]

2414693

$1,205.59

2

LABEL-FUSE BOX

7188875

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP-EDGE,HARNESS

7081890

$10.39

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

GROMMET-65MM,BLK

5813954

$7.19

8

GROMMET-DASH FUSE CTR,RZR

5416469

$10.39

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

10

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

11

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

12

FUSE-7.5 MINI BLADE (BROWN)

4011068

Unavailable

13

FUSE-IGNITION,10 AMP

2434016

$4.79

14

FUSE-MAIN,30 AMP

2434015

$7.19

15

LED-PANEL MNT,12V,BLUE

2413217

$51.99

16

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

17

DIODE-6 AMP

2410000

$35.99
