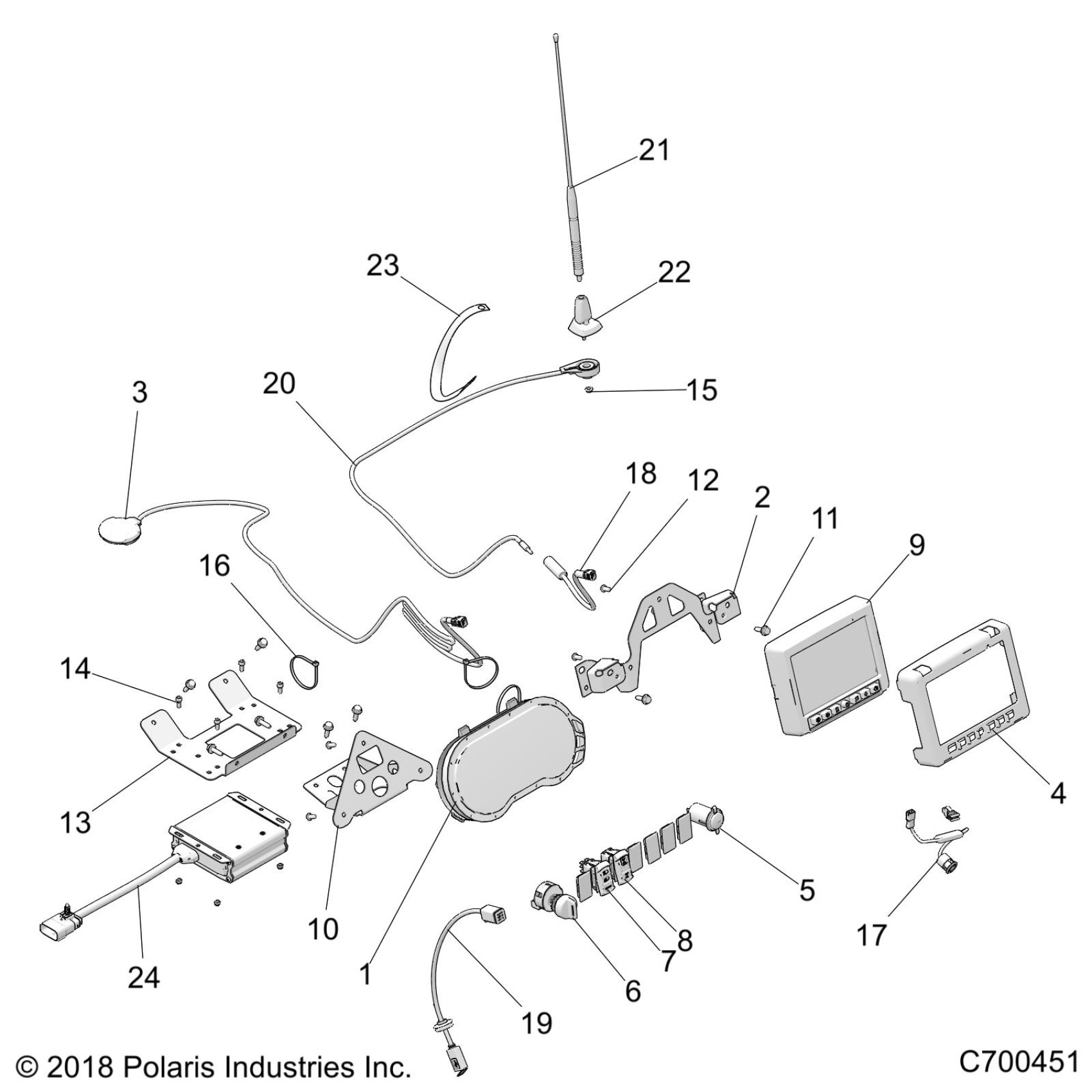

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20NAK99AF/AK/BF/BK (C700451) Diagram

ASM-C4,RZR,RGR,GNRL,256K

3280863

Unavailable

BRKT-RZR 7" DISPLAY,BLK

5266577-329

$51.99

ANTENNA,GPS,EXT

4017533

$83.59

BEZEL-GAUGE,7",ORV,7 BTN,BLK

5455574-070

$14.39

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

SWITCH-KEY,4 POSITION,MT SLV

4016058

Unavailable

SWITCH-HEADLIGHT

4014069

$87.99

SWITCH-AWD

4014673

$67.76

ASM-DISPLAY,DIG,P7,PRG,250K

3280922

Unavailable

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$61.59

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

BRKT-SCM,AMP,ECOAT [TO 02/24/20]

5266963-329

$35.99

BRKT-SCM,AMP,BLK [FROM 02/24/20]

5266963-458

$35.99

SCR-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.19

NUT-HXFL-M5X0.8 A2SS

7547437

$3.19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CAM-MIRROR,CAMERA,APX

4015873

Unavailable

HARNESS-AM/FM ADAPTER

2414431

$71.99

HARNESS,USB,RC

2414710

Unavailable

ASM-HARNESS,AM/FM ANTENNA,1050

2414727

$47.99

ANTENNA-MAST,AM/FM,SHORT

4014849

$111.99

MOUNT-ANTENNA,90-DEG ADJ,NUT [TO 3/20/2020]

4016695

Unavailable

MOUNT-ANTENNA,90-DEG ADJ [FROM 3/20/2020]

4019254

Unavailable

STRAP-GROUND,ANTENNA,BRAIDED

4016696

$31.99

AMP,AUDIO,DASH MOUNT,2 CH

4017614

$330.21
