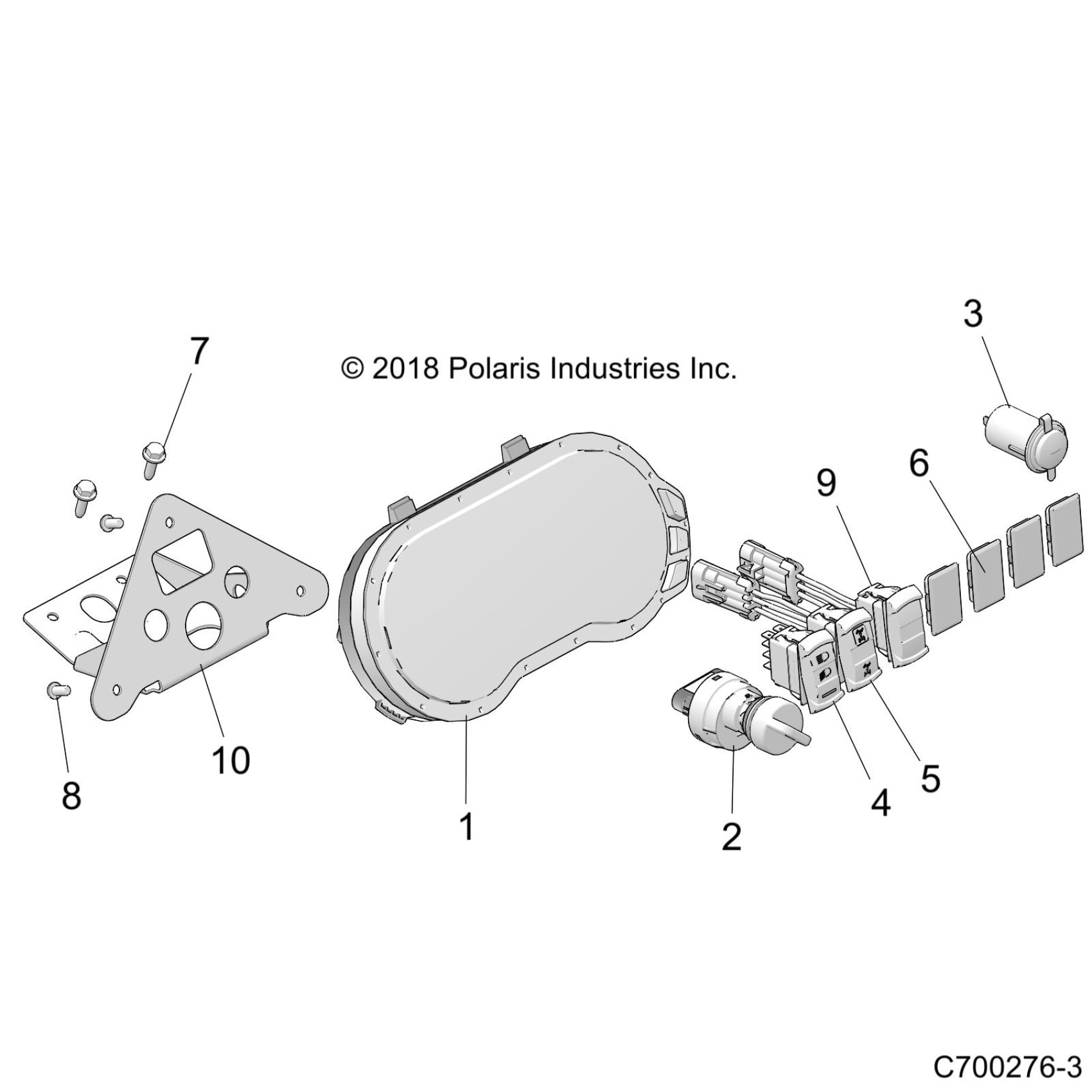

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20NAE99AC/AL/AN/BC/BL/BN/LL/M99AL/R99AZ/BZ (C700276-3) Diagram

ASM-C4,RZR,RGR,GNRL,256K [INCL. RUBBER MOUNT]

3280863

Unavailable

SWITCH-KEY,4 POSITION,MT SLV

4016058

Unavailable

SWITCH-KEY,4 POSITION,SEALED [M99AL]

4016135

$47.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

SWITCH, HEADLIGHT

4014069

$87.99

SWITCH, AWD, SEALED

4015034

$87.99

COVER-SWITCH,RZT

5453402

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SWITCH-WINCH,SEALED [M99AL][R99AZ][R99BZ]

4015043

$87.99

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$61.59
