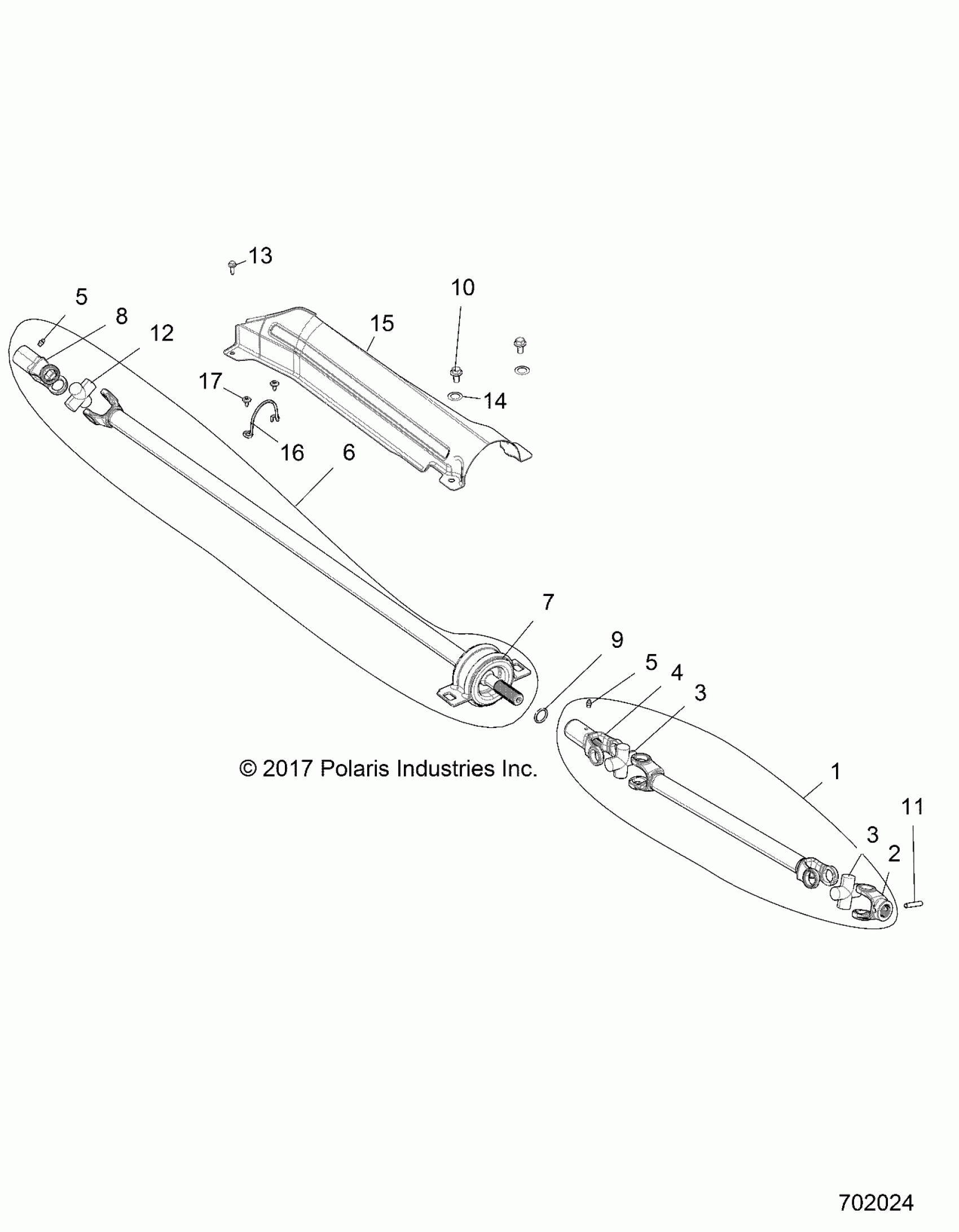

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK DRIVE TRAIN, FRONT PROP SHAFT - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK/M99AL/R99AZ/BZ (702024) Diagram

ASM-PROPSHAFT,FRONT [INCL. 2-5]

1334187

$259.99

YOKE, PIN

3236404

$91.99

KIT-CROSS & BEARING,NONGREASE

2207198

$59.99

KIT-CROSS & BEARING,NONGREASE

2207198

$59.99

YOKE, SLIP

3236405

$99.99

FITTING-LUBRICATION 1/4-28

7080424

$4.79

FITTING-LUBRICATION 1/4-28

7080424

$4.79

ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 12, 1 QTY OF 5,8]

1333424

$304.99

ASM-BEARING,FLEX

3515075

$75.99

YOKE-SLIP

3235501

$131.99

O-RING

5411965

$3.63

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

U-JOINT, 1000 SERIES

3235500

$67.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

WASHER-.438X1.375X.083, FL-B

7555852

$2.39

BRKT-TANK SUPPORT,INNER,ECOAT

5267531-329

$187.99

HOOP-PROPSHAFT [M99AL][R99AZ][R99BZ]

5340149

$14.39

SCR-M6X1X16 TR/TX-M [M99AL][R99AZ][R99BZ]

7518936

$3.99
