CHASSIS, MAIN FRAME AND SKID PLATES - Z20NAR99AZ/BZ (C700273)

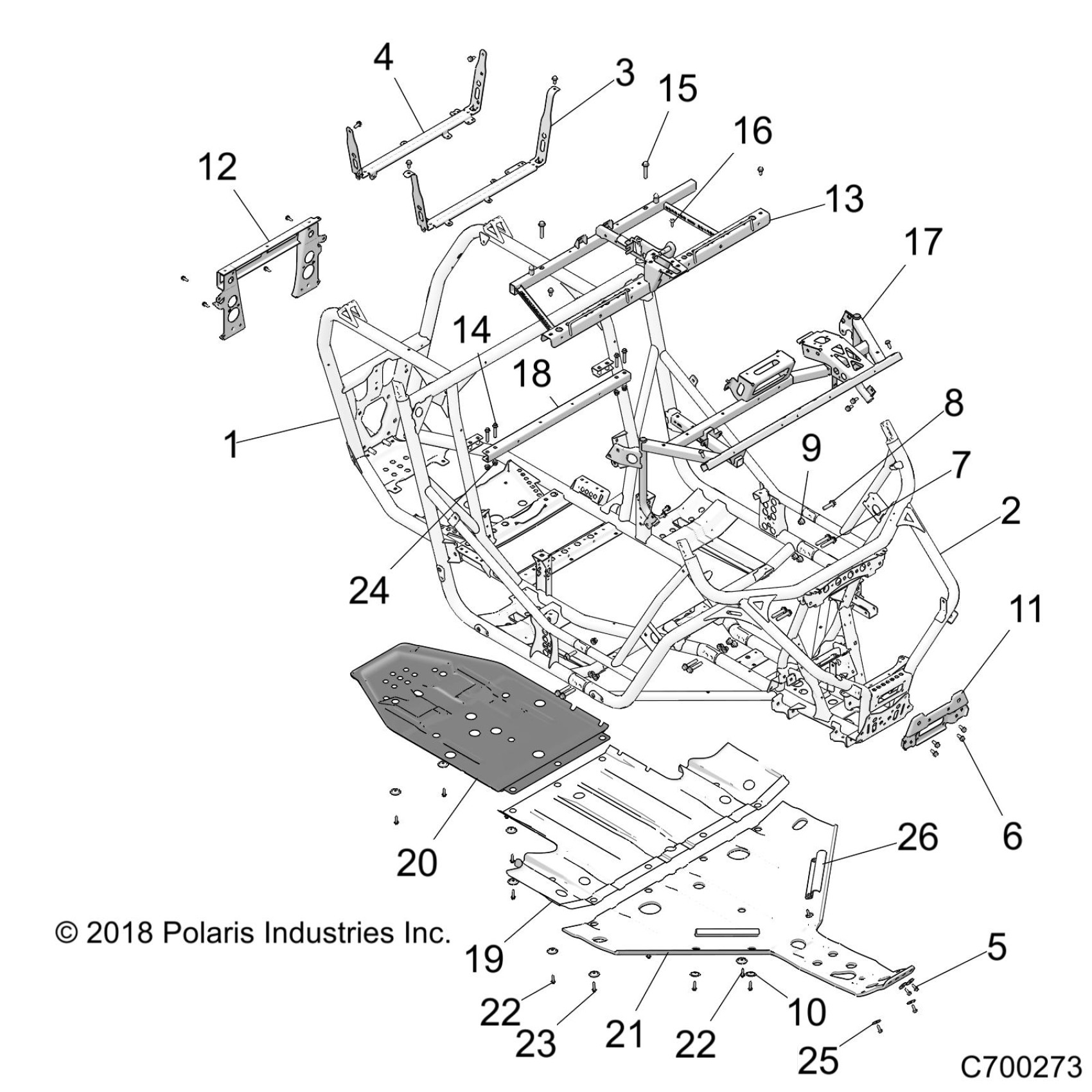

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK CHASSIS, MAIN FRAME AND SKID PLATES - Z20NAR99AZ/BZ (C700273) Diagram
#
Description
Price
1
WELD-MAIN FRAME,BLK
1024526-458
$2,406.79
2
WELD-MAINFRAME,FRT,SWAY,BLK
1024369-458
$2,415.59
3
BRACKET, BOX STRAP, BLACK
5260947-329
$43.99
4
BRKT-BOX SUPPORT REAR,ECOAT
5264553-329
$39.99
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
6
SCREW
7518555
$2.39
7
SCREW
7519285
$2.39
8
SCREW
7519332
$5.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
WASHER-SKID PLATE
7556065
$4.79
11
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
$51.99
12
SUPPORT, REAR, BLACK
1019529-458
$115.99
13
WELD-SEAT BASE,BLK
1022443-329
$283.99
14
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
15
BOLT
7518474
$4.79
16
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
17
WELD-DASH,TURBO,S,ECOAT
1024577-329
$307.99
18
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
$35.99
19
SKIDPLATE-HMW,MID,RZN
5450926
$271.99
20
SKIDPLATE-HMW,RR,RZN,R2
5452769
$271.99
21
SKIDPLATE-HMW,FRT,BUMPER WRAP
5455926
$359.99
22
SCR-TFHFL-M6X1.0X25,ZOD
7519342
$1.86
22
SCR-TFHFL-M6X1.0X25,ZOD
7519342
$1.86
23
BOLT-HXFL-M6X1.0X30 RIE TAPR
7519344
$3.99
24
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
25
WASHER-.270X1.25X.060,FL-Y
7558221
$2.39
26
BRKT-SKIDPLATE MOUNT,BLK
5260402-329
$47.99
