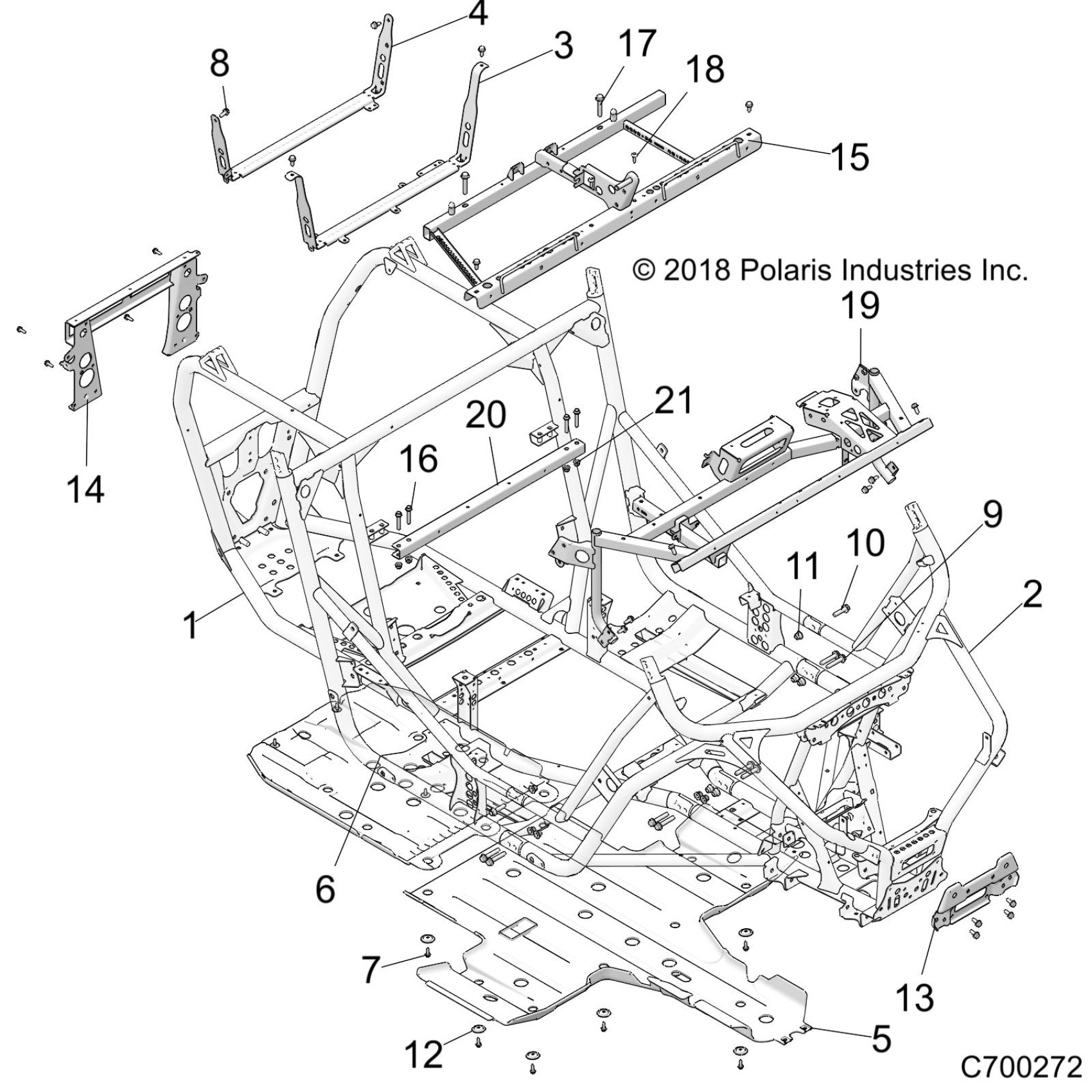

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK CHASSIS, MAIN FRAME AND SKID PLATES - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK/M99AL (C700272) Diagram

#

Description
Price

1

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

2

WELD-MAINFRAME,FRT,SWAY,BLK

1024369-458

$2,415.59

3

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

4

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

5

PLATE-SKID,BLK

5456432-070

$239.99

6

PLATE-SKID,REAR,BLK

5456435-070

Unavailable

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

8

BOLT

7518555

Unavailable

9

SCREW

7519285

$2.39

10

SCREW

7519332

$5.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

WASHER-SKID PLATE

7556065

$4.79

13

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

14

SUPPORT, REAR, BLACK

1019529-458

$115.99

15

BASE, SEAT, BLACK

1020571-329

$195.99

16

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

17

BOLT

7518474

$4.79

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

19

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

20

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

21

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
