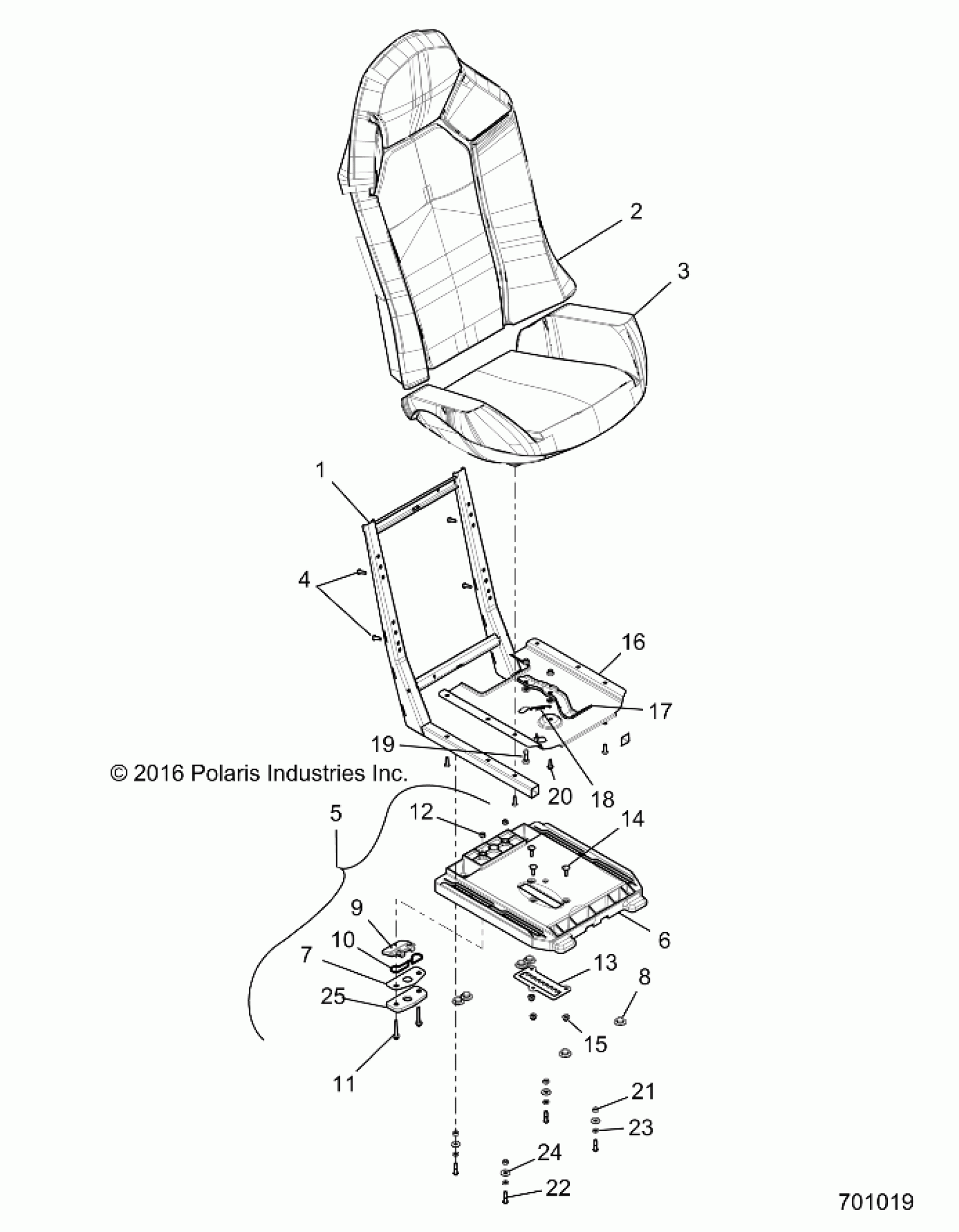

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK BODY, SEAT ASM. AND SLIDER - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK/M99AL/R99AZ/BZ (701178) Diagram

WELD-FRAME, SEAT

1021289

$67.99

ASM-SEAT BACK,SLGR/BLK LSQ ST [M99AL]

2689740

Unavailable

ASM-SEAT BACK,MTAN/BLK,BLK ST [R99AZ][R99BZ]

2689615

$303.99

ASM-SEAT BACK,RED/BLK,BLK ST [E99AC][E99BC][K99AK][K99BK]

2689611

Unavailable

ASM-SEAT BACK,ORUST/BLK,BLK ST [K99AF][K99BF]

2689607

Unavailable

ASM-SEAT BACK,TTM/BLK,BLK ST [E99AL][E99BL][E99LL]

2689603

Unavailable

ASM-SEAT BACK,S.BLU/BLK,BLK ST [E99AN][E99BN]

2689112

Unavailable

ASM-SEAT BTM,SLGR/BLK LSQ ST [M99AL]

2689742

Unavailable

ASM-SEAT BTM,MTAN/BLK,BLK ST [R99AZ][R99BZ]

2689617

$247.99

ASM-SEAT BTM,RED/BLK,BLK ST [E99AC][E99BC][K99AK][K99BK]

2689613

Unavailable

ASM-SEAT BTM,ORUST/BLK,BLK ST [K99AF][K99BF]

2689609

Unavailable

ASM-SEAT BTM,TTM/BLK,BLK ST [E99AL][E99BL][E99LL]

2689605

Unavailable

ASM-SEAT BTM,S.BLU/BLK,BLK ST [E99AN][E99BN]

2689115

Unavailable

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

ASM., BASE, SEAT [INCL. 6-12,25]

2634889

$123.99

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 3 OF 15,25]

2685704

$195.99

SEAT, BASE

5450170

$42.06

PLATE-LATCH,SEAT

5258647

$6.39

GROMMET, SEAT, BASE

5413441

$3.99

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING, LATCH, SEAT

7081466

$39.99

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE

5257975

Unavailable

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

SPRING

7044099

$5.59

SCR-SH-M6X1.0X9.5 12.9 ZY3

7518786

$2.39

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5340145

$4.79

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

WASHER-FL .281X.750X.062-Y

7555859

$1.49

LATCH, COVER PLATE, BLACK

5450510-070

$4.79
