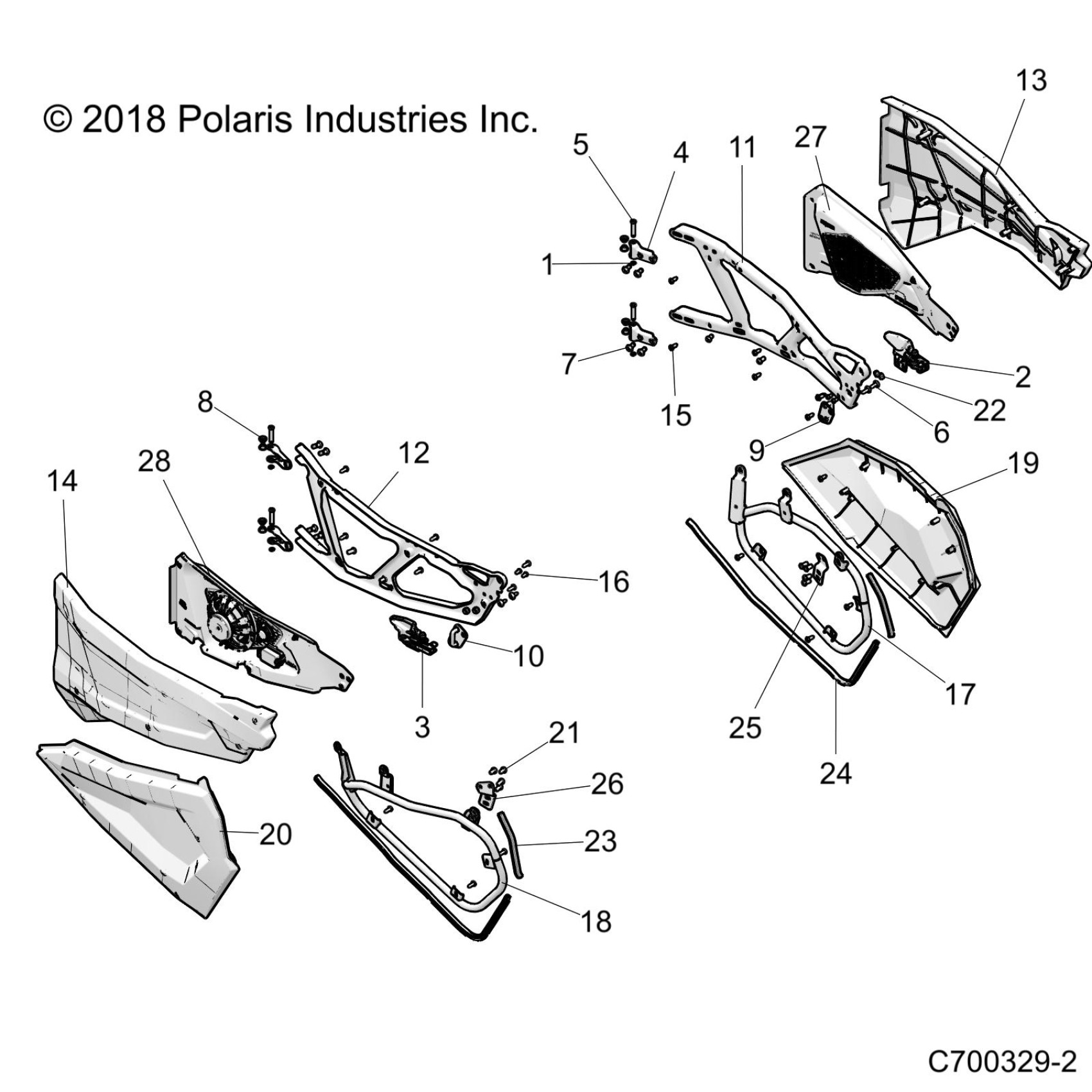

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK BODY, DOORS - Z20NAK99AF/AK/BF/BK (C700329-2) Diagram

#

Description
Price

1

E-CLIP,M6, DIN 6799

7710466

$3.19

2

ASM-LATCH,DOOR,LH

2637286

$71.99

3

ASM-LATCH,DOOR,RH

2637287

$71.99

4

BRACKET, DOOR HINGE

5258008

Unavailable

5

PIN, DOOR HINGE

7662138

$4.79

6

SCREW

7519112

$3.19

7

SCREW

7519997

$3.99

8

BUSHING, DOOR PIVOT

5450592

$2.39

9

STRIKER, LH

1021237

$39.99

10

STRIKER, RH

1021238

$39.99

11

FRAME, DOOR, LH, BLACK

5257929-458

$147.99

12

FRAME, DOOR, RH, BLACK

5257930-458

$147.99

13

DOOR SKIN, LH

5450636

$119.99

14

DOOR SKIN, RH

5450638

$119.99

15

SCREW

7519045

Unavailable

16

SCREW

7519063

$3.99

17

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$107.99

18

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$107.99

19

PANEL-DOOR,PLASTIC,LWR,LH,RZN

5450616

$107.99

20

PANEL-DOOR,PLASTIC,LWR,RH,RZN

5450617

$107.99

21

SCR-HXBH-M8X1.25X16 10.9 ZPB

7517484

Unavailable

22

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

23

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-180

$23.99

24

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-837

$43.99

25

MOUNT-LWR DOOR,LH,RZN

5258254

$27.99

26

MOUNT-LWR DOOR,RH,RZN

5258255

$27.99

27

ASM-SPEAKER,DOOR,PANEL,LH,RZT

2636268

$309.99

28

ASM-SPEAKER,DOOR,PANEL,RH,RZT

2636269

$309.99
