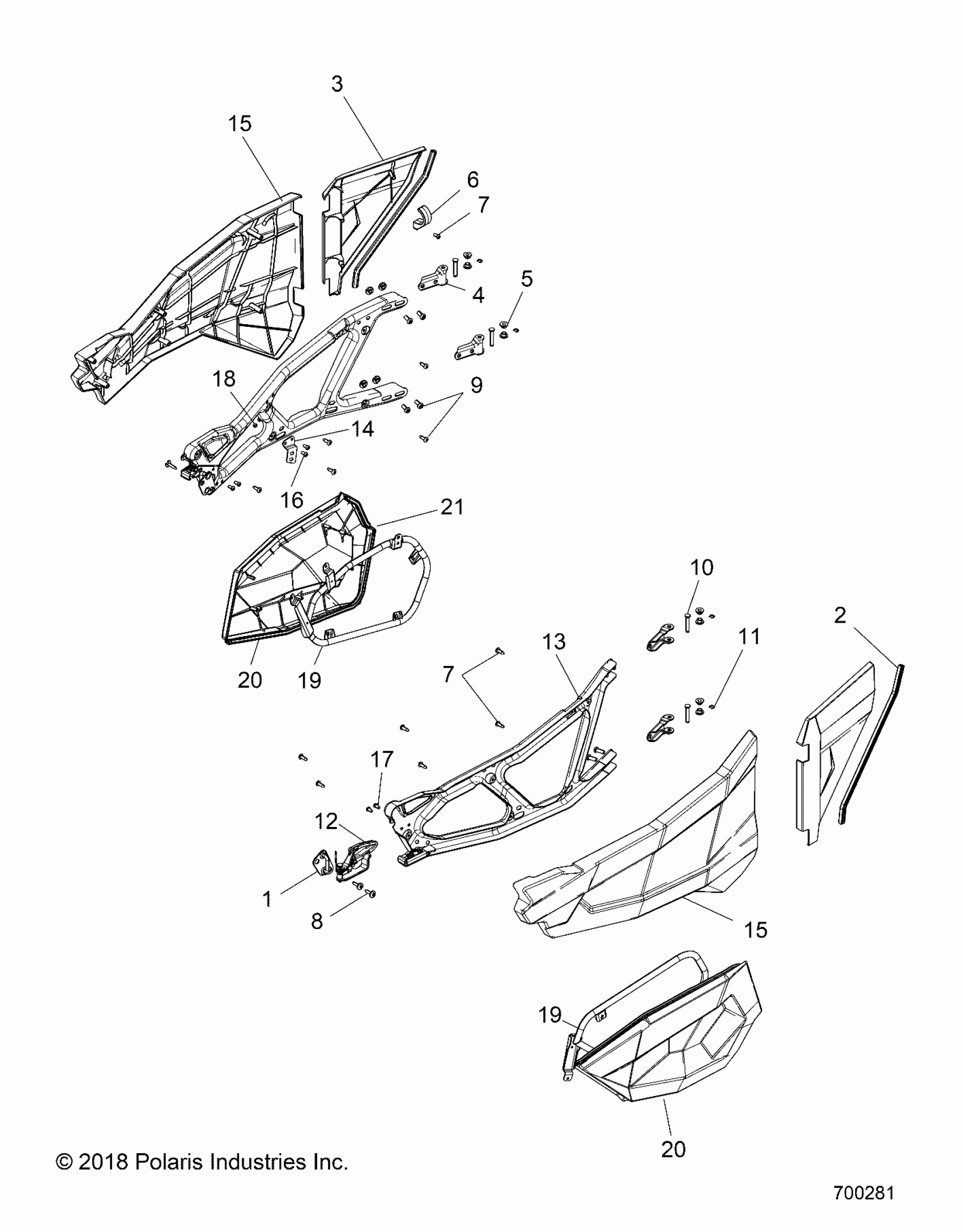

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK BODY, DOORS - Z20NAE99AL/BL/LL/M99AL/R99AZ/BZ (700281) Diagram

#

Description
Price

1

STRIKER, WELD, LH

1021237

$39.99

1

STRIKER, WELD, RH

1021238

$39.99

2

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

3

ASM., BOLSTER, LH [INCL 2]

2635693

$79.99

3

ASM., BOLSTER, RH [INCL 2]

2635694

$79.99

4

BRACKET, DOOR, HINGE

5258008

Unavailable

5

BUSHING, DOOR, PIVOT

5450592

$2.39

6

BRKT-J MOUNT,INJ,RZN

5451472

$15.99

7

SCREW

7517484

$4.79

7

SCREW

7517484

$4.79

8

SCREW

7519112

$3.19

9

SCREW

7519997

$3.99

10

PIN, DOOR, HINGE

7662138

$4.79

11

E-CLIP,M6, DIN 6799

7710466

$3.19

12

ASM-LATCH,DOOR,LH

2637286

$71.99

12

ASM-LATCH,DOOR,RH

2637287

$71.99

13

STAMPING, DOOR FRAME, LH

5257929-458

$147.99

13

STAMPING, DOOR FRAME, RH

5257930-458

$147.99

14

MOUNT-LWR DOOR,LH,RZN

5258254

$27.99

14

MOUNT-LWR DOOR,RH,RZN

5258255

$27.99

15

DOOR, SKIN, LH

5450636

$119.99

15

DOOR, SKIN, RH

5450638

$119.99

15

DOOR, SKIN, LH

5450636

$119.99

15

DOOR, SKIN, RH

5450638

$119.99

16

SCREW

7519045

Unavailable

17

SCREW

7519063

$3.99

18

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

19

MOUNT, DOOR, LOWER, LH

1019994

$107.99

19

MOUNT, DOOR, LOWER, RH

1019999

$107.99

19

MOUNT, DOOR, LOWER, LH

1019994

$107.99

19

MOUNT, DOOR, LOWER, RH

1019999

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$107.99

21

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-180

$23.99

21

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-837

$43.99
