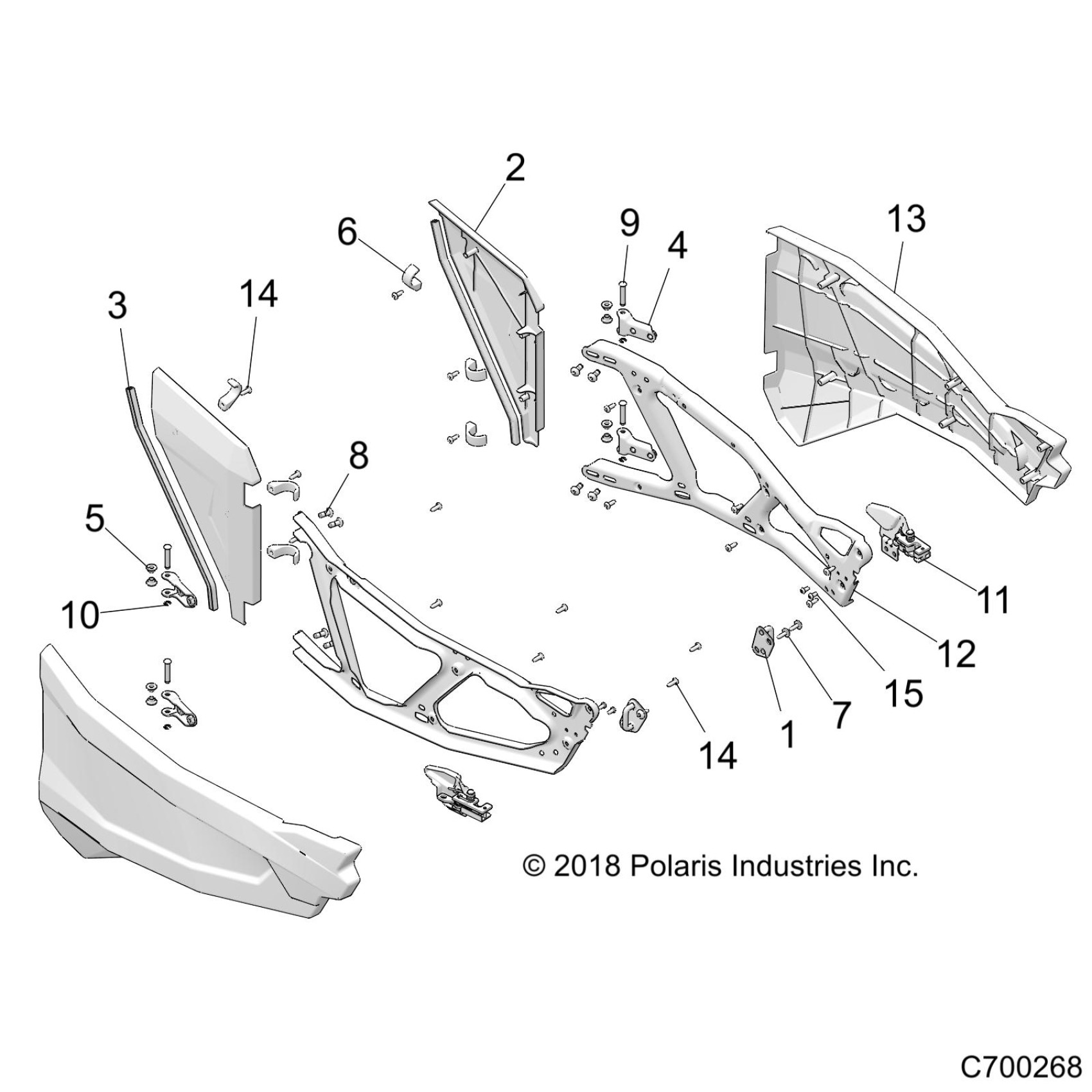

Polaris RZR XP1000 (R02) - Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK BODY, DOORS - Z20NAE99AC/AN/BC/BN (C700268) Diagram

#

Description
Price

1

STRIKER, WELD, LH

1021237

$39.99

1

STRIKER, WELD, RH

1021238

$39.99

2

ASM., BOLSTER, LH [INCL 3]

2635693

$79.99

2

ASM., BOLSTER, RH [INCL 3]

2635694

$79.99

3

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

4

BRACKET, DOOR, HINGE

5258008

Unavailable

5

BUSHING, DOOR, PIVOT

5450592

$2.39

6

BRKT-J MOUNT,INJ,RZN

5451472

$15.99

7

SCREW

7519112

$3.19

8

SCREW

7519997

$3.99

9

PIN, DOOR, HINGE

7662138

$4.79

10

E-CLIP,M6, DIN 6799

7710466

$3.19

11

ASM-LATCH,DOOR,LH

2637286

$71.99

11

ASM-LATCH,DOOR,RH

2637287

$71.99

12

STAMPING, DOOR FRAME, LH

5257929-458

$147.99

12

STAMPING, DOOR FRAME, RH

5257930-458

$147.99

13

DOOR, SKIN, LH

5450636

$119.99

13

DOOR, SKIN, RH

5450638

$119.99

14

SCREW

7519045

Unavailable

14

SCREW

7519045

Unavailable

15

SCREW

7519063

$3.99
