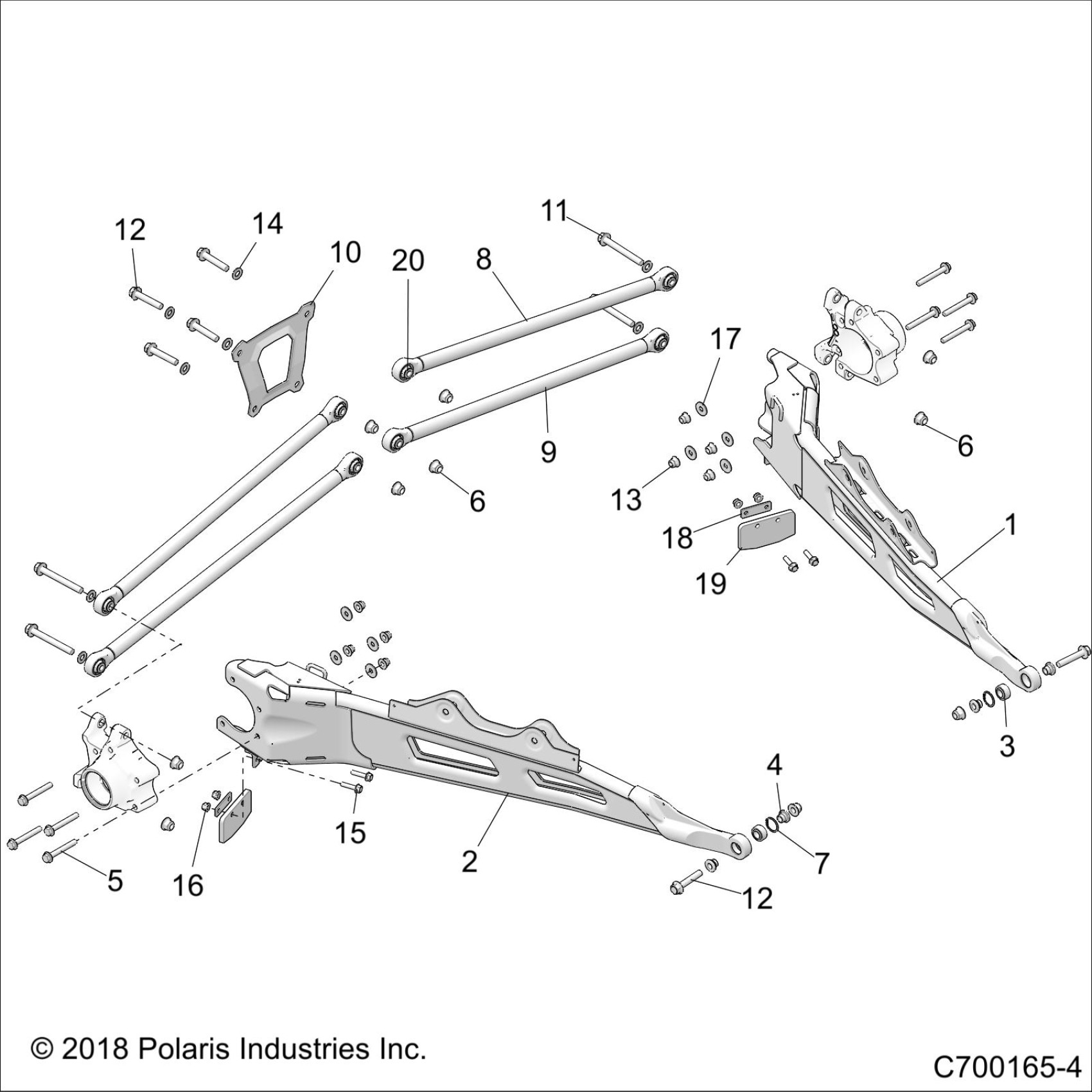

Polaris RZR XP TURBO S VELOCITY (R02) - Z19VEE92AM/BM SUSPENSION, REAR CONTROL ARMS - Z19VEE92AM/BM (C700165-4) Diagram

#

Description
Price

1

WELD-TRL ARM,LH,BLK

1024416-458

$428.99

2

WELD-TRL ARM,RH,BLK

1024417-458

$428.99

3

BEARING, SPHERICAL

3514689

$39.99

4

BUSHING, REDUCER

5336751

$6.39

5

SCREW

7519286

$7.19

6

NUT, FLANGE, NYLOK

7547334

$4.79

6

NUT, FLANGE, NYLOK

7547334

$4.79

7

RING, RETAINER

7710437

$3.19

8

ASM-RADIUS ROD,MBLK [INCL 20]

1543999-458

$179.99

9

ASM-RADIUS ROD,BTM,MBLK [INCL 20]

1544000-458

$179.99

10

PLATE-REAR,BOLT BRACE,BLK

5264429-458

$51.99

11

SCREW

7520479

$7.19

12

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

12

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

WASHER

7556287

$7.19

15

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$1.59

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

18

BRKT-BACKER,SCRAPER,M.BLK

5265115-458

$31.99

19

SCRAPER-DEBRIS,BLK

5454591-070

$14.39

20

BEARING-SPHERICAL

7082253

$15.99
