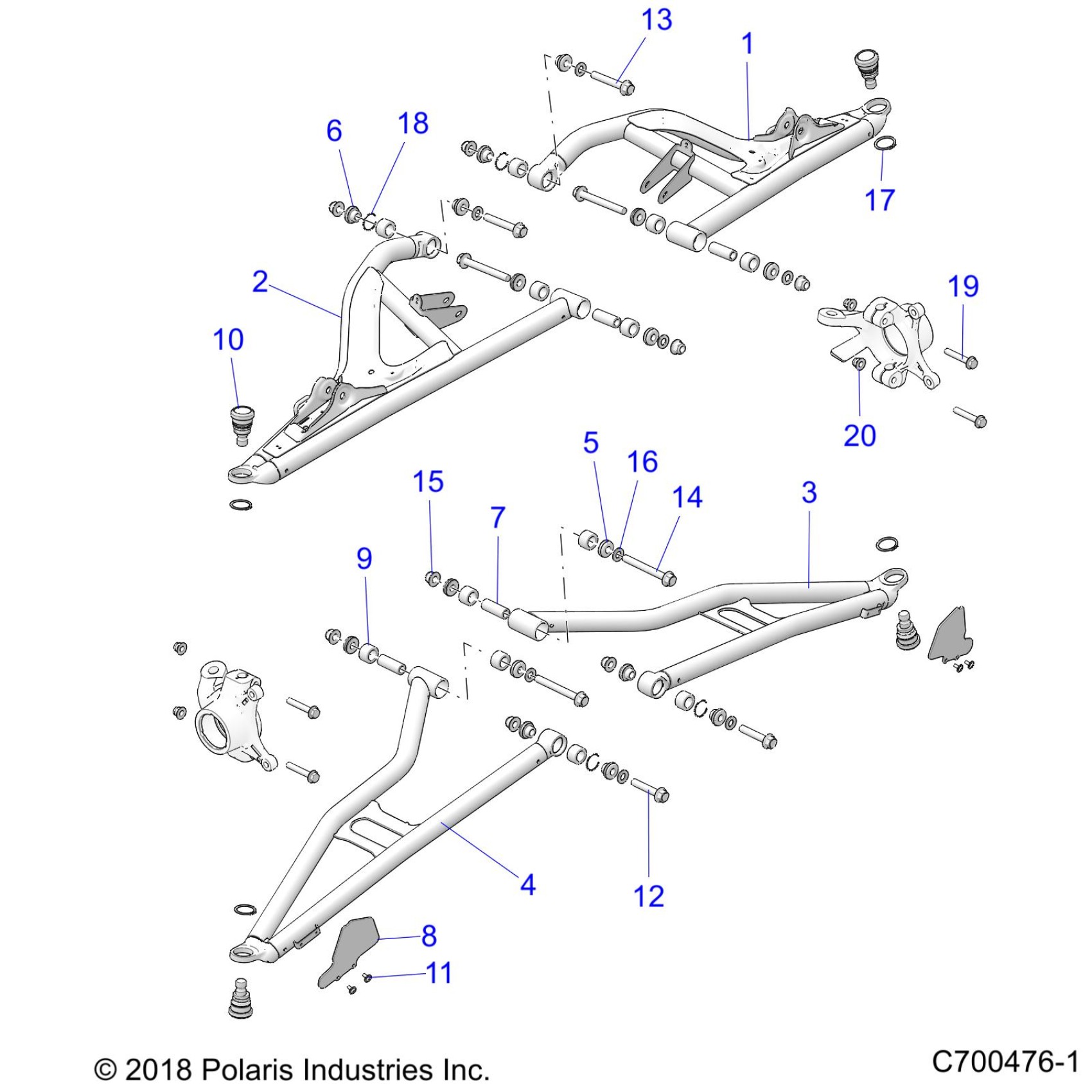

Polaris RZR XP TURBO S VELOCITY (R02) - Z19VEE92AM/BM SUSPENSION, FRONT CONTROL ARMS - Z19VEE92AM/BM (C700476-1) Diagram

WELD-CTRL ARM,UPR,FR,LH,72,BLK

1024460-458

$335.99

WELD-CTRL ARM,UPR,FR,RH,72,BLK

1024461-458

$335.99

WELD-CTRL ARM,LWR,FR,LH,72,BLK

1024383-458

$227.99

WELD-CTRL ARM,LWR,FR,RH,72,BLK

1024384-458

$227.99

ASM-PIVOT CAP,SEALED,M12

1543612

$5.59

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.79

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

SHIELD-CV,FRONT,BLK

5438641-070

$3.19

BUSHING-STANDARD,SUSP,M12

5452271

$3.19

BALL-JOINT,HARDENED

7082487

Unavailable

SCR-10-24X1/2,PHTXTRIRD,SEMS-Y

7512084

$1.49

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

SCR-HXFL-M12X1.5X80 10.9 ZOD

7520478

$7.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

NUT-M12X1.5,FLG,NYLOC-OLIVE D

7547334

$4.79

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

RING-RTG,DSH-33ST

7710716

$7.19

30MM SPIRAL RING,STEEL

7710869

$3.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
