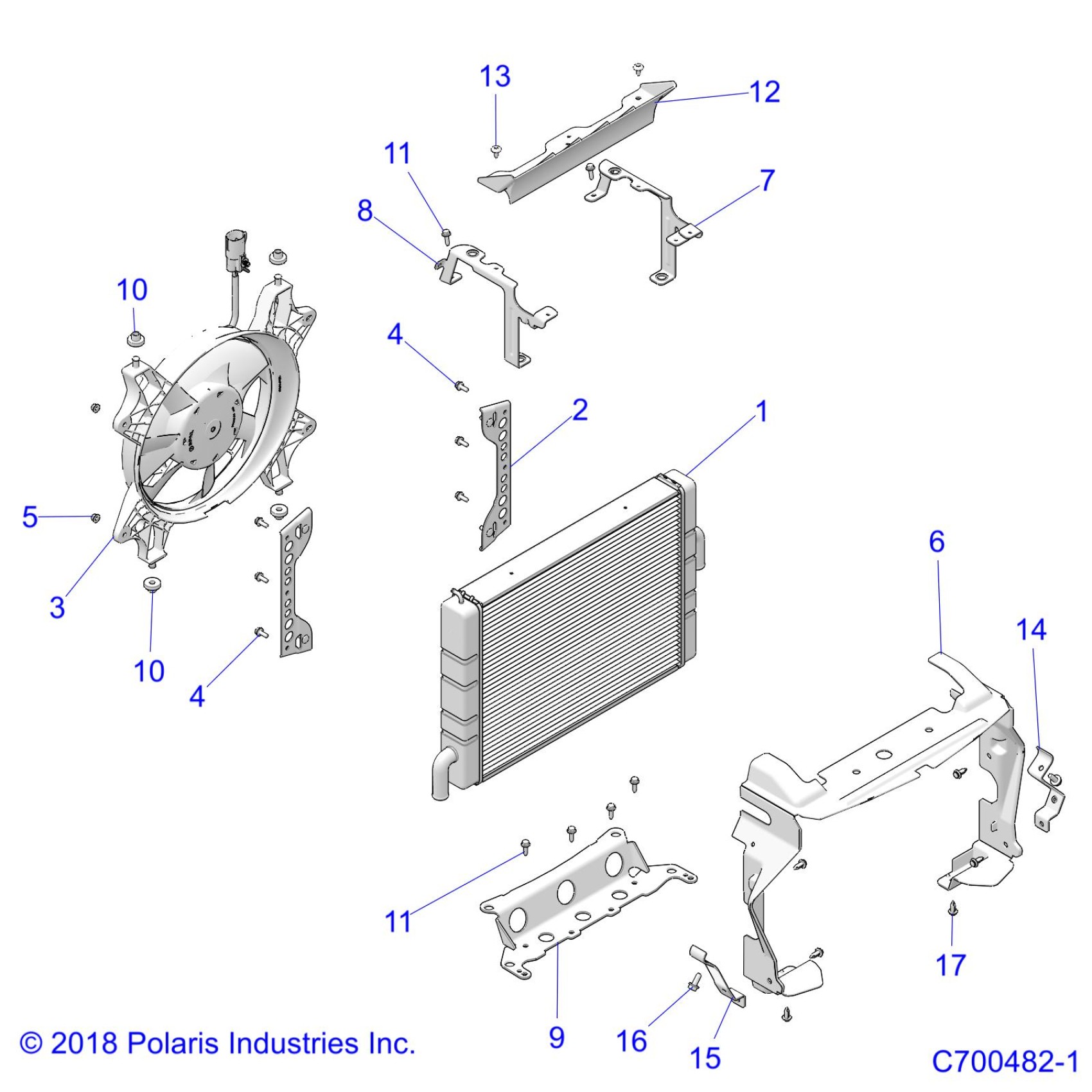

Polaris RZR XP TURBO S VELOCITY (R02) - Z19VEE92AM/BM ENGINE, COOLING RAD. MOUNTING - Z19VEE92AM/BM (C700482-1) Diagram

#

Description
Price

1

ASM-CORE,RADIATOR

1241117

Unavailable

2

WELD-BRKT-MNT,FAN,ECOAT

1241122-329

$10.39

3

ASM-FAN,BRUSHLESS

2414657

$319.99

4

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

4

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

5

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

6

SHROUD-RADIATOR

5454422

$67.99

7

BRKT-MOUNT,RADIATOR,LH,ECOAT

5263170-329

$35.99

8

BRKT-MOUNT,RADIATOR,RH,ECOAT

5263171-329

$35.99

9

BRKT-MOUNT,RADIATOR,ECOAT

5266527-329

$91.99

10

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

10

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

SHROUD-RADIATOR,UPPER

5452630

$19.99

13

SCR-M6X1X16 TR/TX-M

7518936

$3.99

14

BRKT-BUMPER MNT,FR,UP,LH,BLK

5264780-329

$45.97

15

BRKT-BUMPER MNT,FR,UP,RH,BLK

5264781-329

$45.97

16

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

17

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
